Page 59 | AlliedWare™ OS How To Note: IGMP

How clients leave groups: queries and timers > Snooper timer values

The command show ip igmp displays the timer for the most recently updated port as
the group’s Refresh Time. From Software Version 291-08, the command show
igmpsnooping vlan={<vid
>|all} detail displays the timers for each individual port.

Snooper timer values

As described in

Step 5

above, when the Snooper receives a Specific Query from the Querier,

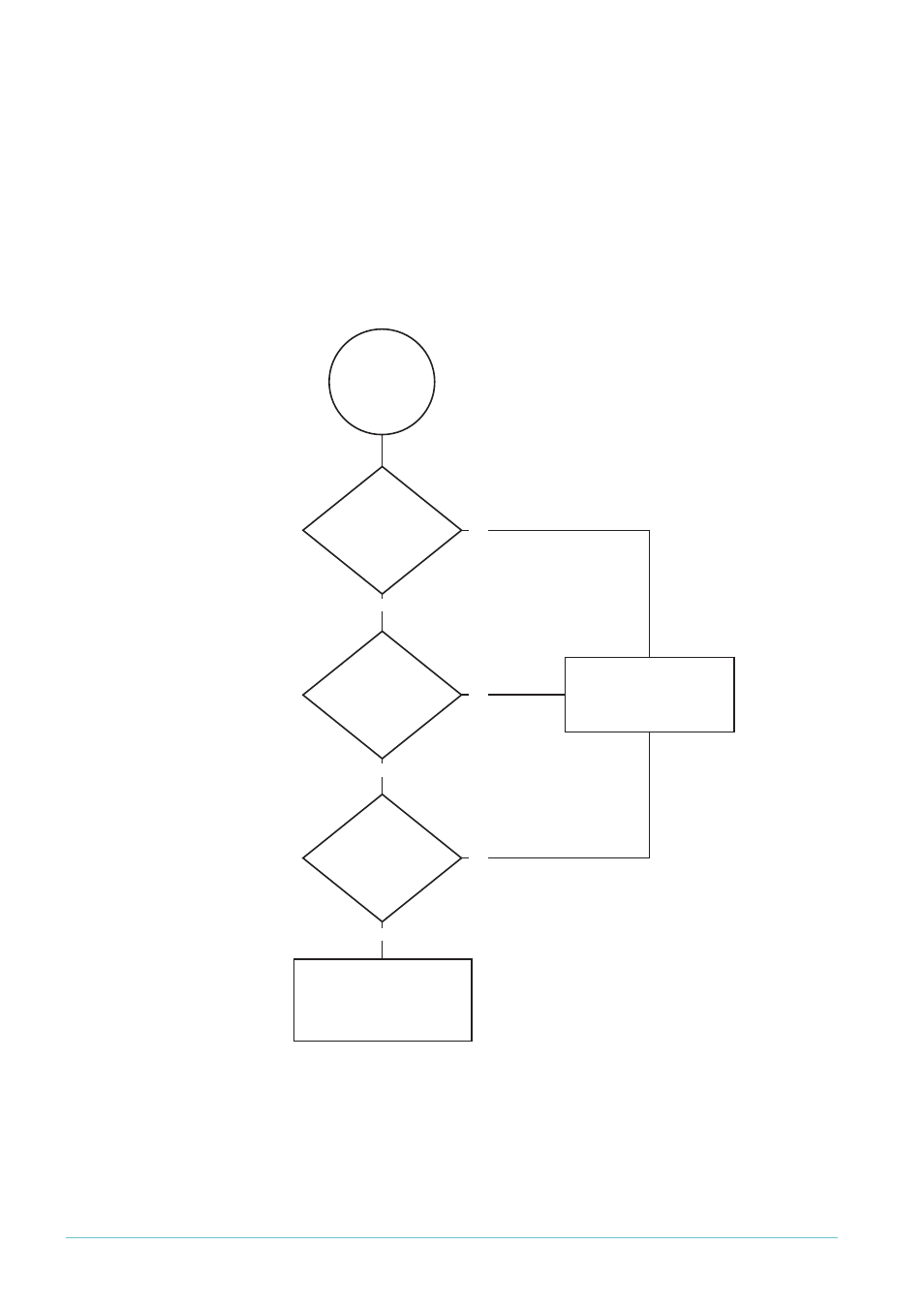

it may update a timer for ports that forward that group. The following flow chart describes
the decision-making process for updating the timer.

Note that:

z

The command show igmpsnooping displays the timer for the most recently updated
port as the group’s Timeout in ... value. From Software Version 291-08, the command
show igmpsnooping vlan={<vid>|all} detail displays the timers for each individual
port.

For this

port, is the group

entry dynamic

(not static)?

Is the port’s

current timer

LMQI from Querier

LMQC from

Snooper?

Start:

Switch receives

Query for which

it has a group

entry.

Has the switch

previously seen a

Leave message?

yes

yes

yes

no

no

no

Do not alter port-specific

group membership timer.

Flood Query out all ports.

Set port-specific group

membership timer to:

LMQI from Querier

LMQC from Snooper.
