Page 65 | AlliedWare™ OS How To Note: IGMP

IGMP fast leave > Explanation of IGMP fast leave

When you enable fast leave on switch 3

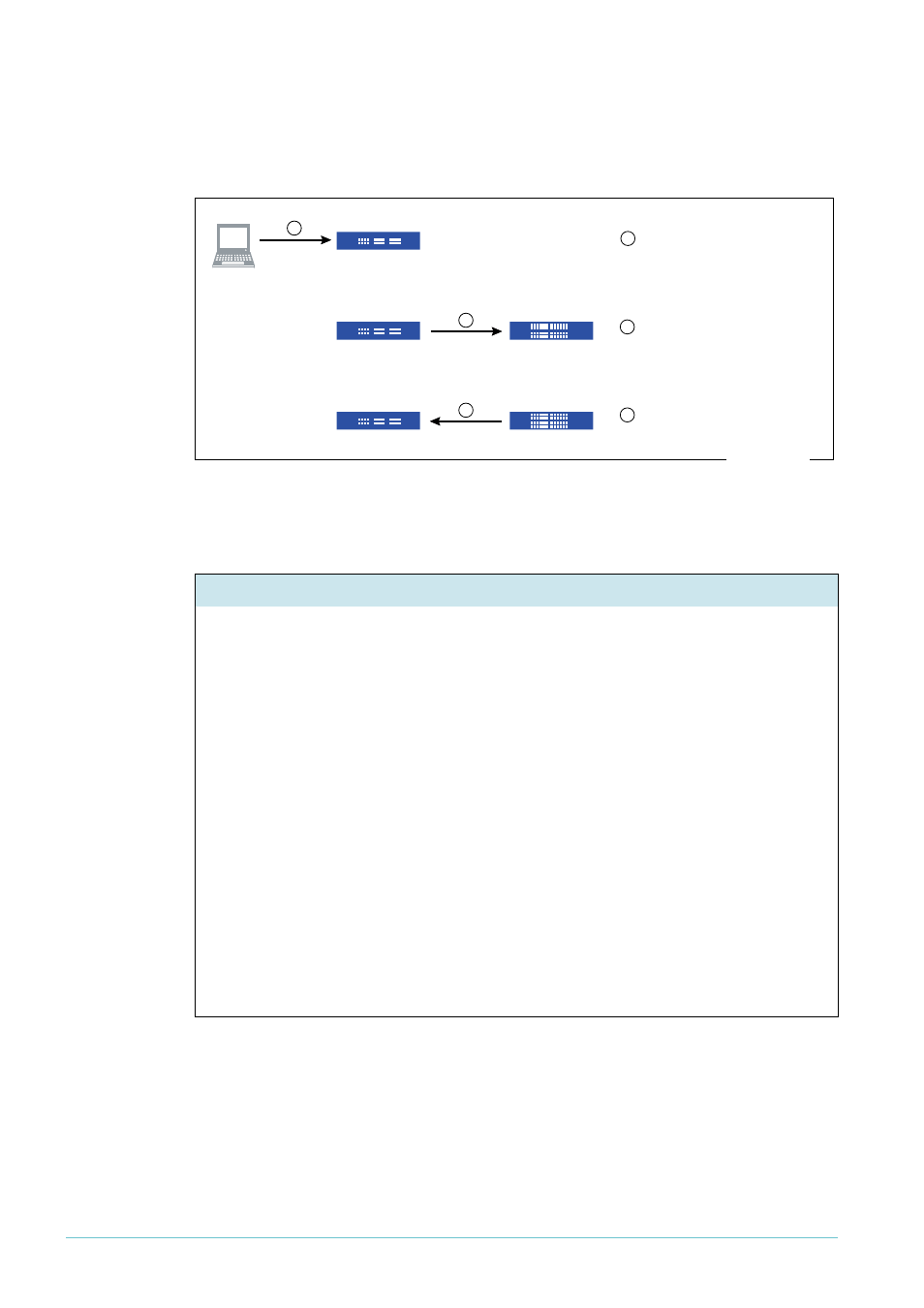

When Fast Leave is enabled on switch 3, but not on switch 1, an interesting chain of events
occurs when the client sends a Leave message, as shown in the following diagram.

The result of this is that switch 3 adds the group back into its snooping table (with the same
timeout as the IGMP Querier) but has no ports interested in receiving the group. Because
Fast Leave is enabled on port 3, that port was removed from the group as soon as switch 3
received the Leave message.

Adding Fast Leave to switch 1 would not be sensible, since there may be clients attached to
other ports on switch 3. If you enabled Fast Leave on switch 1, one Leave message from
switch 3 would drop the multicast stream for everyone on that switch.

It is safe to ignore the group entry on switch 3.

Manager Switch 3> show igmpsnooping

IGMP Snooping

------------------------------------------------------------------------

Status ........................... Enabled

Disabled All-groups ports ........ None

Vlan Name (vlan id) ..... default (1)

Fast Leave .............. On

Group List ..............

No group memberships.

Vlan Name (vlan id) ..... vlan100 (100)

Fast Leave .............. On

Group List ..............

Group. 224.12.13.14 Entry timeout 2 secs

Ports None

All Groups Entry timeout 258 secs

Ports 26

------------------------------------------------------------------------

Client 2

Switch 3

1

Switch 1

Switch 3

2

Switch 1

Switch 3

3

1

Client sends Leave message

Switch 3 forwards Leave message
and deletes snooping entry

2

Switch 1 sends Membership Query
with 2 second timeout period

3

igmp-fast-leave.eps
