Page 3-38
Chapter 3 — AsantéBridge 1012 Local Management
The AsantéBridge 1012 provides several counters that monitor
traffic on both bridge ports.
A password is not required to access the statistics counters. Just
select the
Bridge Statistics field on the Local Management Menu
and press return . This opens the Bridge Port Statistics Menu , as
shown in Figure 3-22.
The counters displayed represent the total count for each cate-
gory accumulated since the last reset or cold start (power-on).
Counter contents are not preserved when the bridge is powered
off.

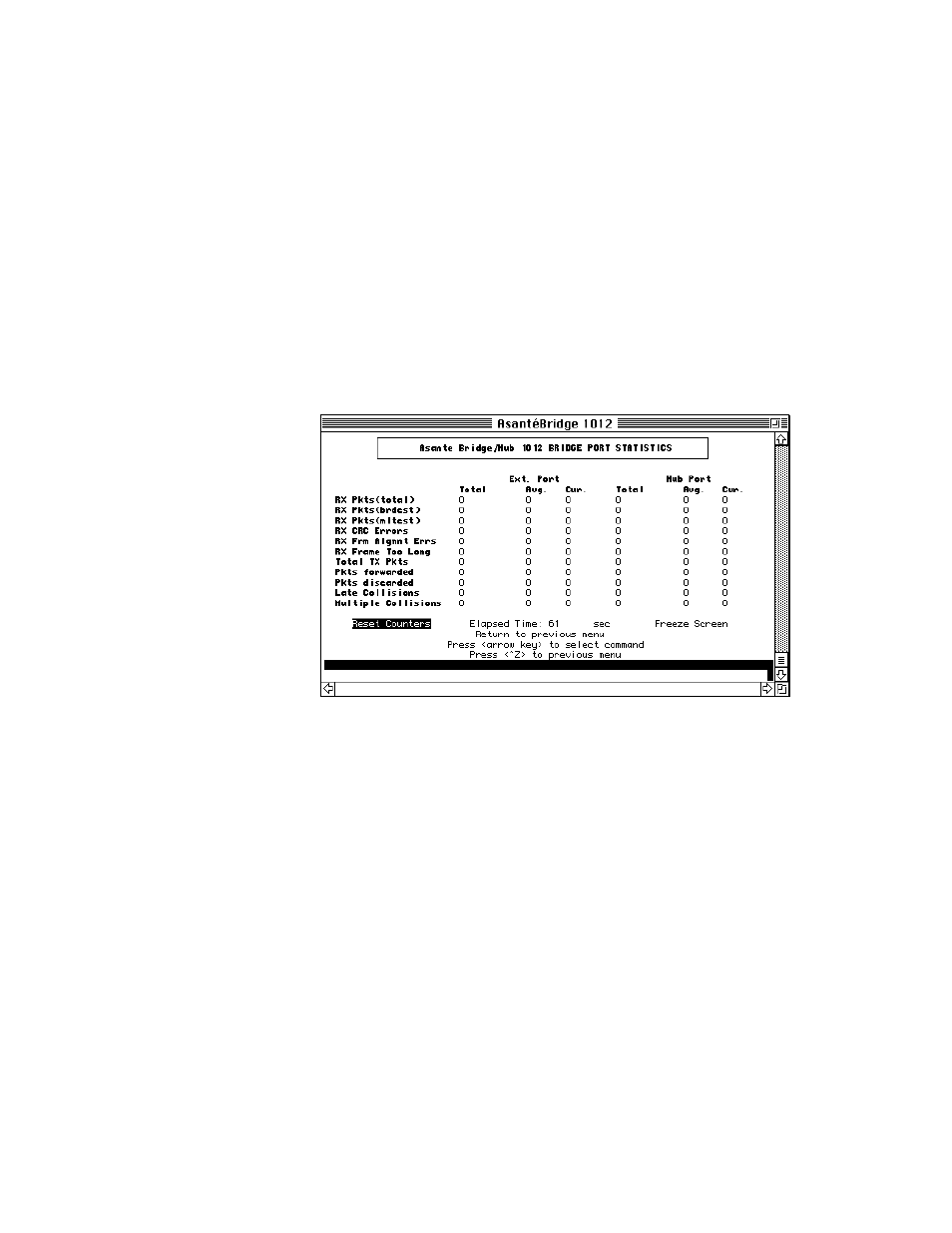

Figure 3-22 Bridge Statistics
To display and modify the Statistics Menu, do the following:
1
You can stop the counter displays from incrementing with
the
freeze screen command. Use the arrow keys to select
the command and then press return .
This stops the displays from incrementing. It does not stop
the counter from incrementing. When you unfreeze the
screen, all displays update to the actual value of the
counters.
2
Set all counters back to zero with the Reset Counters com-
mand.
3
Enter control-z to return to the Bridge Port Statistics
Menu .
Statistics Menu
System
