Page 2-20
Chapter 2 — Connecting to the Network
There are two DIP switches located to the right of the AMS Link
ports on the rear panel of the AsantéBridge 1012. These two
switches are set up according to how the AsantéBridge is posi-
tioned in the out-of-band daisychain and how you are connecting
your Asanté Management Station.
Follow these simple rules to set the switches:

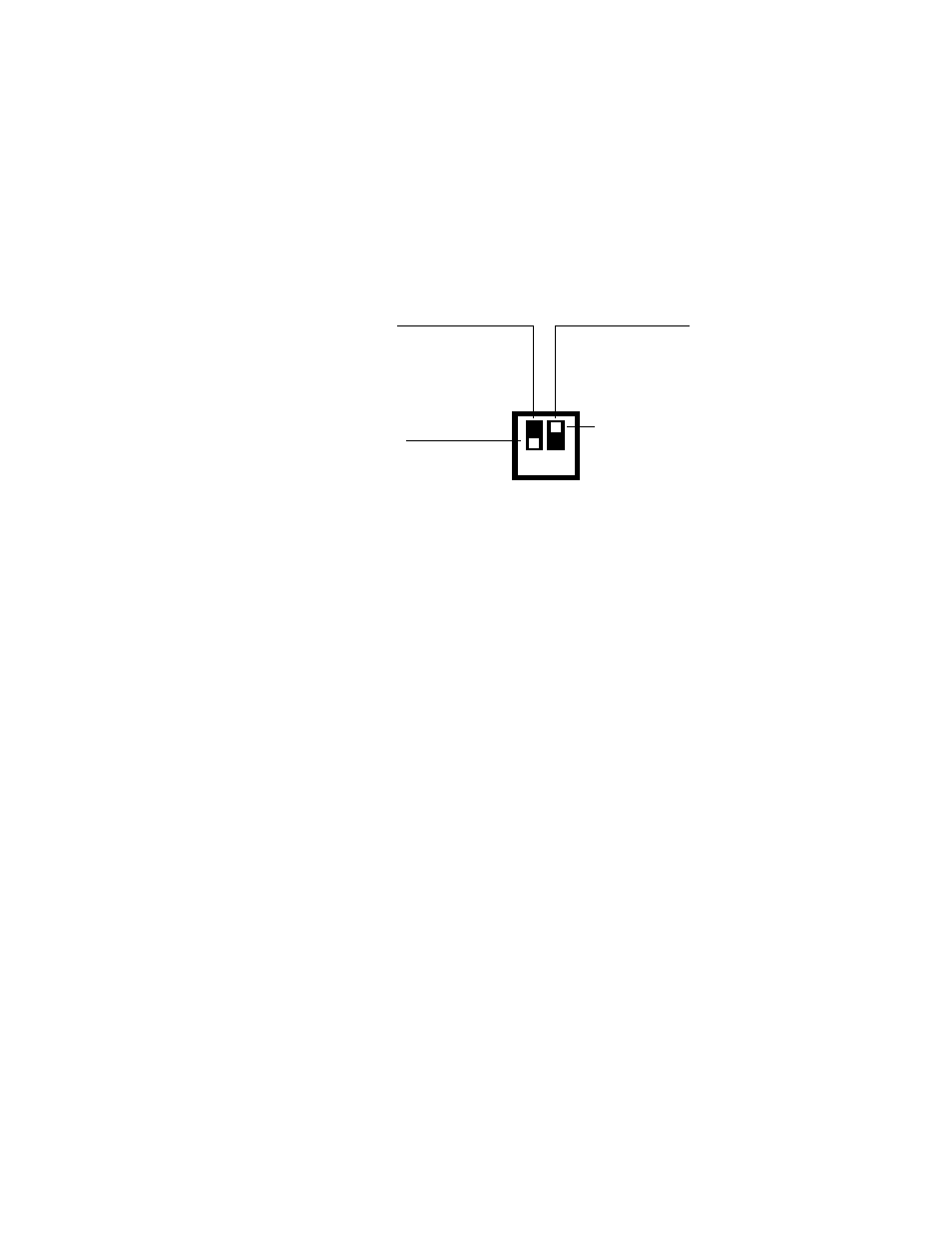

Figure 2-12 Switch Settings Key
PC/Terminal Switch
❏ If the Asanté Management Station is connected to the
Bridge/Hub RS232 port, either directly or via a modem,
and you are running AsantéView Out-of-Band, set this
switch
UP .
❏ If you connect your station to one of the AMS Link ports
and are running AsantéView Out-of-Band, set this switch
DOWN .
Through/End Switch
❏ If both AMS Link ports are in use, set the switch UP.
❏ If only one AMS Link port is in use, set the switch
DOWN .
Configuring Hub
DIP Switches
1 2
Set UP if you are
connecting your
Asanté Management Station
to the RS232 port and running
AsantéView Out-of-Band
Set DOWN if you are connecting
your Asanté Management Station
to one of the AMS Link ports
Through/End Switch
Set UP if both AMS Link
ports are in use.
Set DOWN if only one AMS
port is in use
PC/Terminal Switch
