Chapter 3 — AsantéBridge 1012 Local Management
SNMP Trap Receiver Table

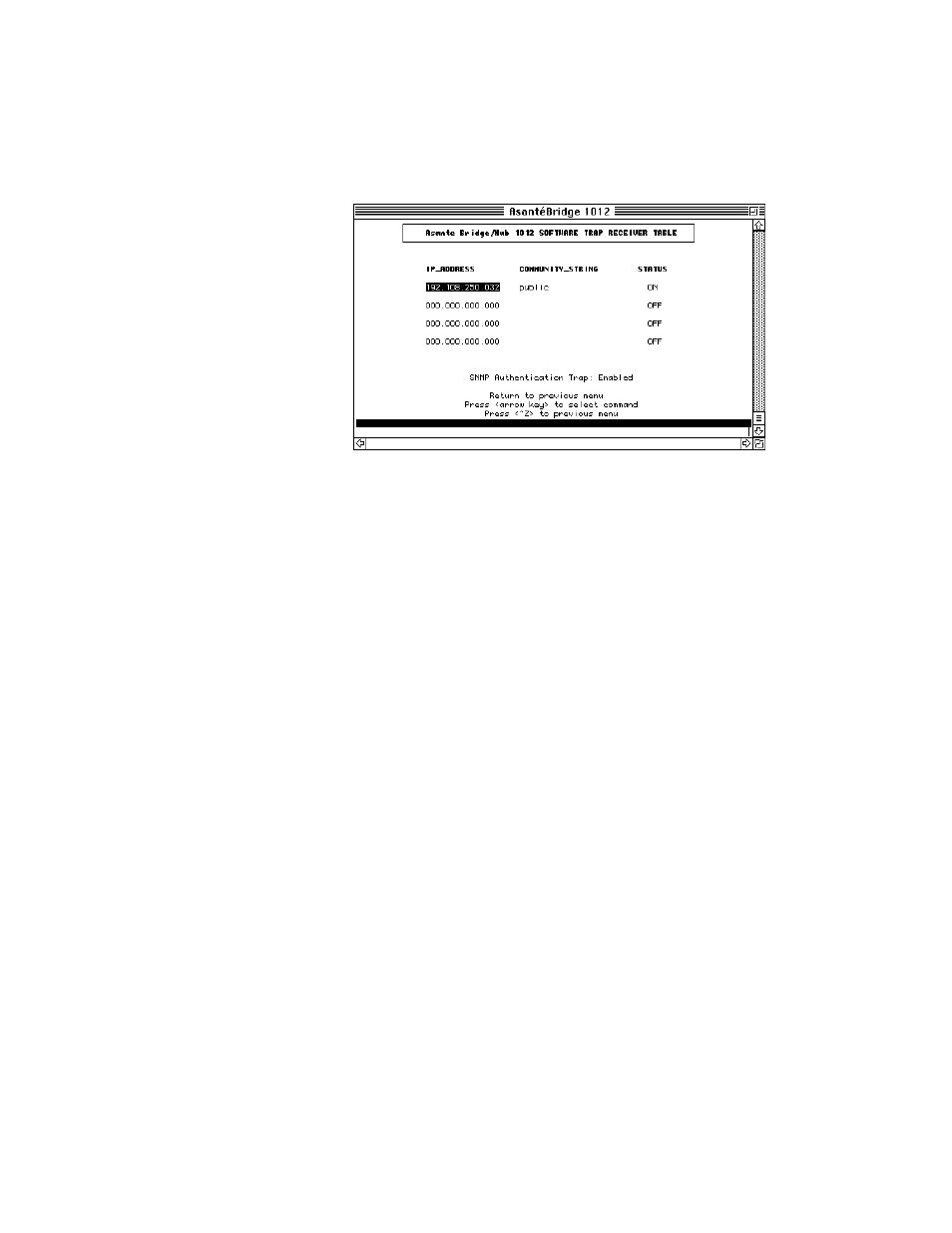

Figure 3-11 SNMP Trap Receiver Table
You can define up to four trap receivers for the bridge. A valid trap
receiver is a Macintosh or PC running AsantéView 2.0 or later.
❏
The
IP ADDRESS
field contains the trap receiver IP
address currently stored in bridge memory.
❏
The
COMMUNITY STRING
field contains the string
value currently stored in bridge memory. The value con-
tained in the field is sent with the trap message when a
trap event occurs.
❖
Note: Unique community string field values is intended
for third party software. AsantéView does not check for a
community string. All traps sent are received.
❖
❏
The
STATUS
field, also in bridge memory, determines
whether a trap will be sent to this receiver or not. If set
to
OFF
, no traps are sent by the bridge. If set to
ON
, traps
will be sent by the bridge.
❏
The
SNMP Authentication Trap
field (Enabled or Dis-
abled) determines whether or not an authentication trap
will be sent by the bridge. It must be
Enabled
to allow a
trap to be sent.
1
Use the
arrow keys
to move the highlight selection bar to
the
IP ADDRESS
field you want to modify and press
return
to activate the data entry bar at the bottom of the window.
2
Press
control-u
to erase the current data and enter the new
address.
