Installing the AsantéBridge 1012
Positioning the AsantéBridge 1012
The AsantéBridge can be positioned on any flat surface (a desktop,
table, or other work surface), or it can be mounted on a wall or in
a rack. There are a few guidelines that should be followed:
❏
Place the unit within six feet of an AC outlet.
❏
The unit must be no more than 100 meters (328 feet)
away from the network devices to be connected via
RJ45 cables.
❏
Leave a two-inch clearance around the ventilation grills.
Normal office temperature and humidity generally suit
this type of equipment. For details, see Appendix B,
“Technical Specifications.”
❏
The location should not be near sources of electrical
interference, such as motors or heavy-current switches.

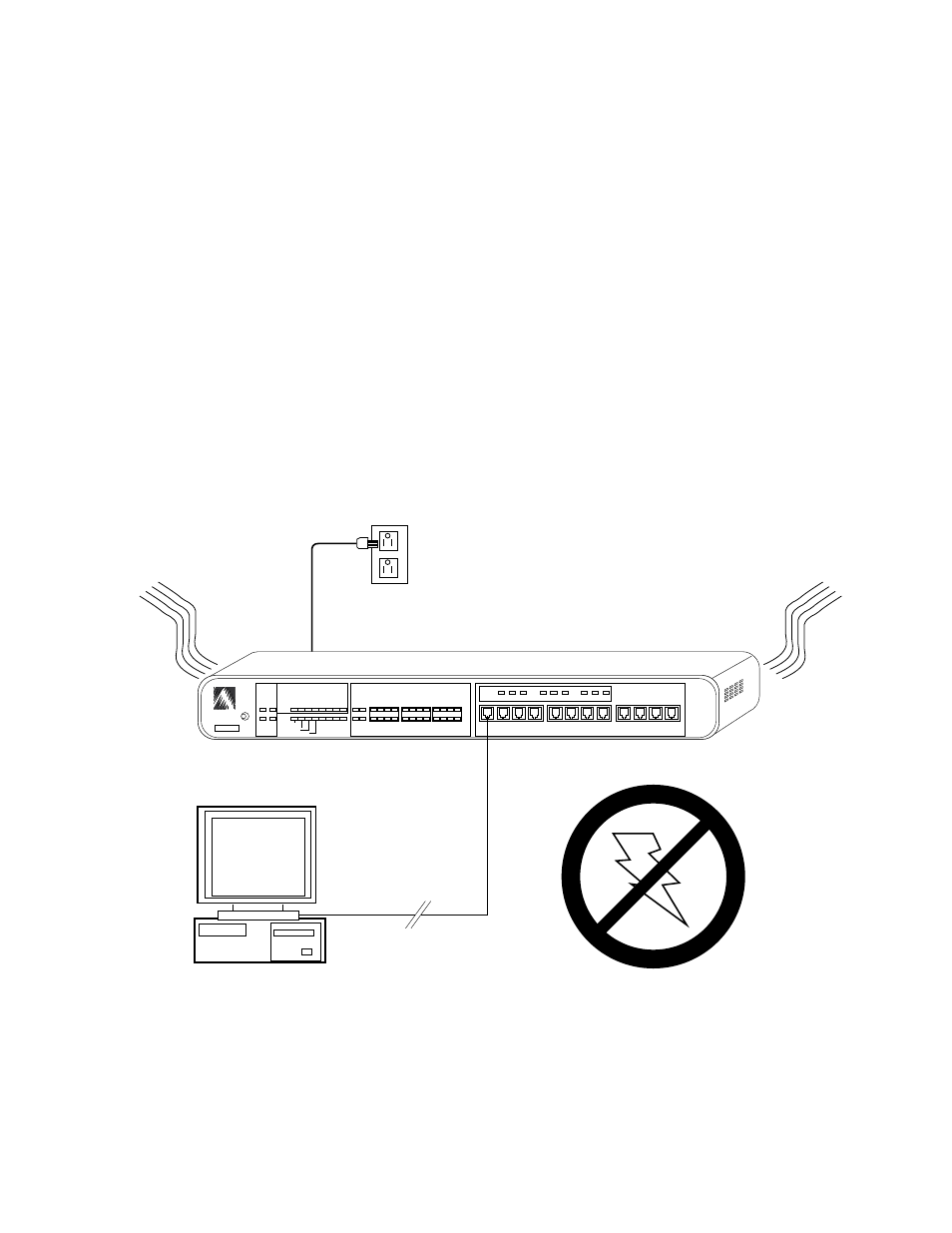

Figure 1-8 Locating the AsantéBridge
