Page 3-21
Configuration Menu System
Defines data communication and user password parameters for
accessing the bridge using AsantéView Out-of-Band network man-
agement software and an RS 232 modem connection.

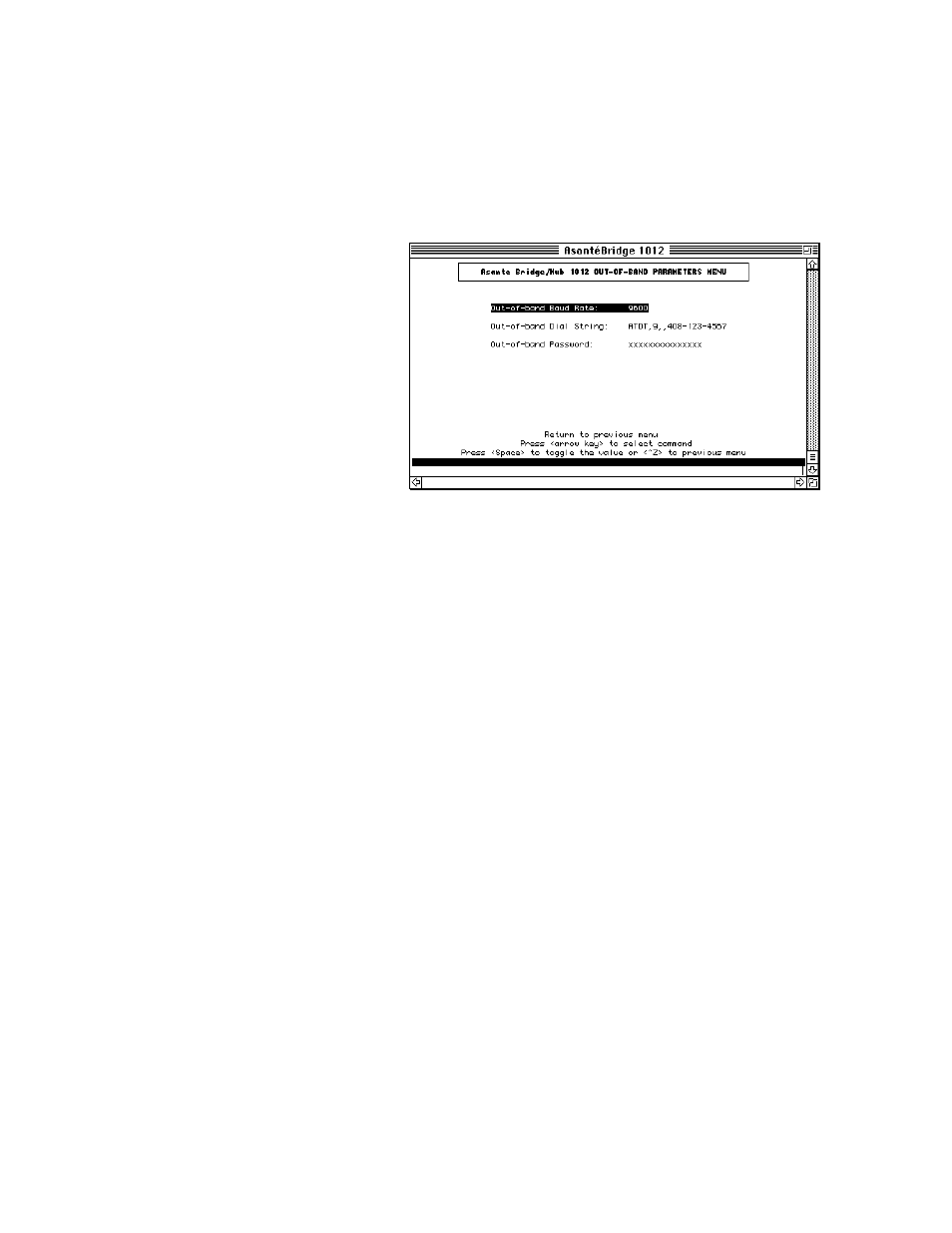

Figure 3-13 Out-of-Band Parameters Menu
❏
The
Out-of-Band Baud Rate
sets up a modem for both
incoming calls and outgoing calls. It can be set to a max-
imum of 9600 baud.
❏
The
Out-of-Band Dial String
is a placeholder only.
❏
Out-of-Band Password
controls access to the bridge
when an Asanté Management Station running Asanté-
View Out-of-Band connects to the bridge via a modem.
The management station must send a matching pass-
word to establish the connection.
1
Use the
arrows keys
to move the highlight selection bar to
the field you want to modify.
2
The
Out-of-Band Baud Rate
field has preset values. Select
the field and tap the
space bar
or
return
to toggle through
the available baud rates.
3
The
Out-of-Band Dial String
is a text field. Select it and
press
return
to open the data entry bar.
Enter the new string and press
return
to place it into the
field.
4
The
Out-of-Band Password
field is also a text string. Select
it and press
return
to open the data entry bar.
Out-of-Band
Parameters Menu
