2.5.2 2.5.2 2.5.2 2.5.2 2.5.2 Reinstalling the front panel assembly Reinstalling the front panel assembly Reinstalling the front panel assembly Reinstalling the front panel assembly Reinstalling the front panel assembly

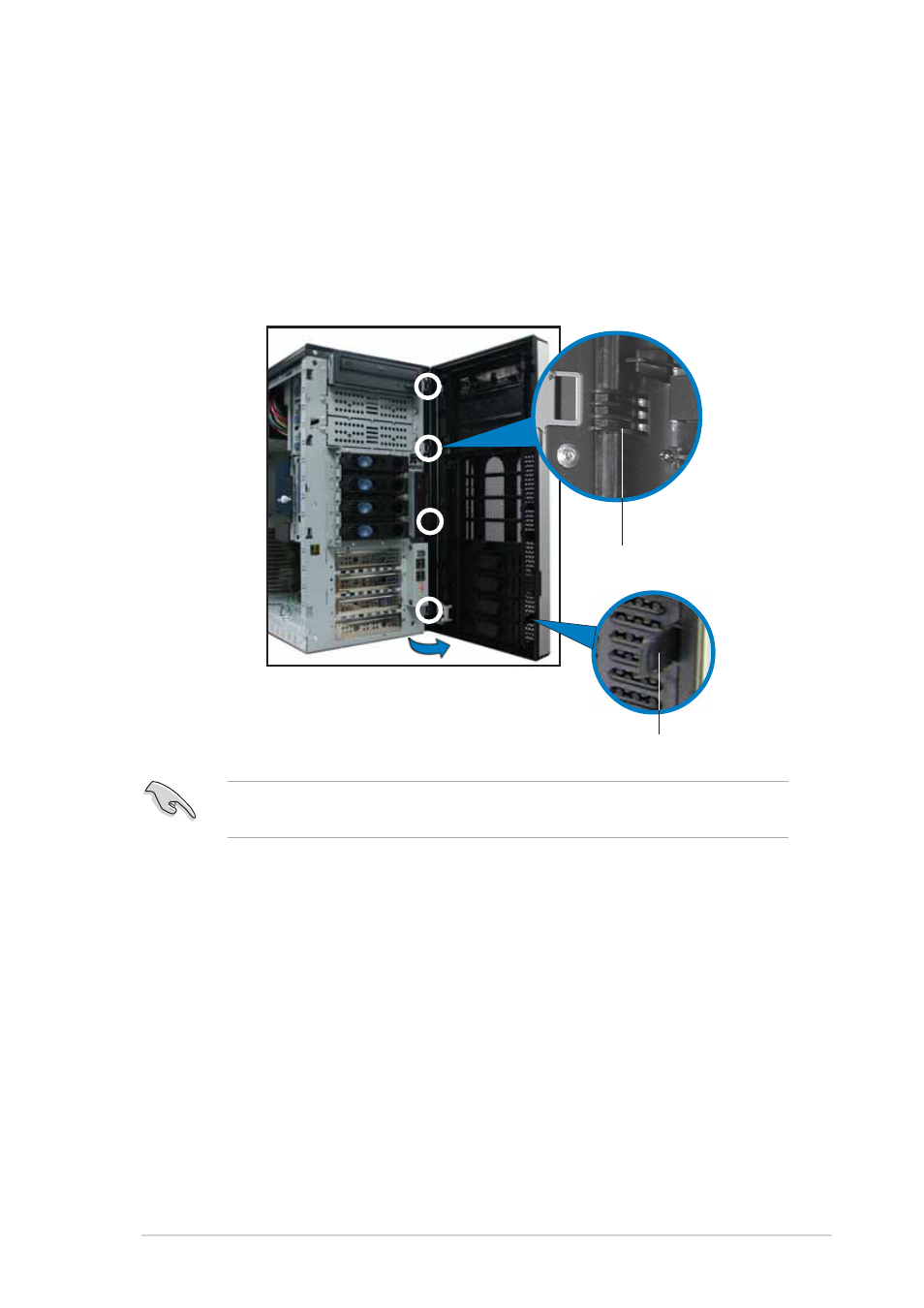

To reinstall the front panel assembly (front bezel and front panel cover):
1. Insert the four hinge-like tabs to the holes on the right edge of the
chassis.
2. Swing the front panel to the left and fit the four (4) hooked tabs to
the left side of the chassis until the tabs snap back in place.
Hooked tab
H i n g e - l i k e t a b H i n g e - l i k e t a b H i n g e - l i k e t a b H i n g e - l i k e t a b H i n g e - l i k e t a b
Do not use too much force when removing or when reinstalling the front
panel assembly.
