VertX V100, V200 and V300 Installation Guide

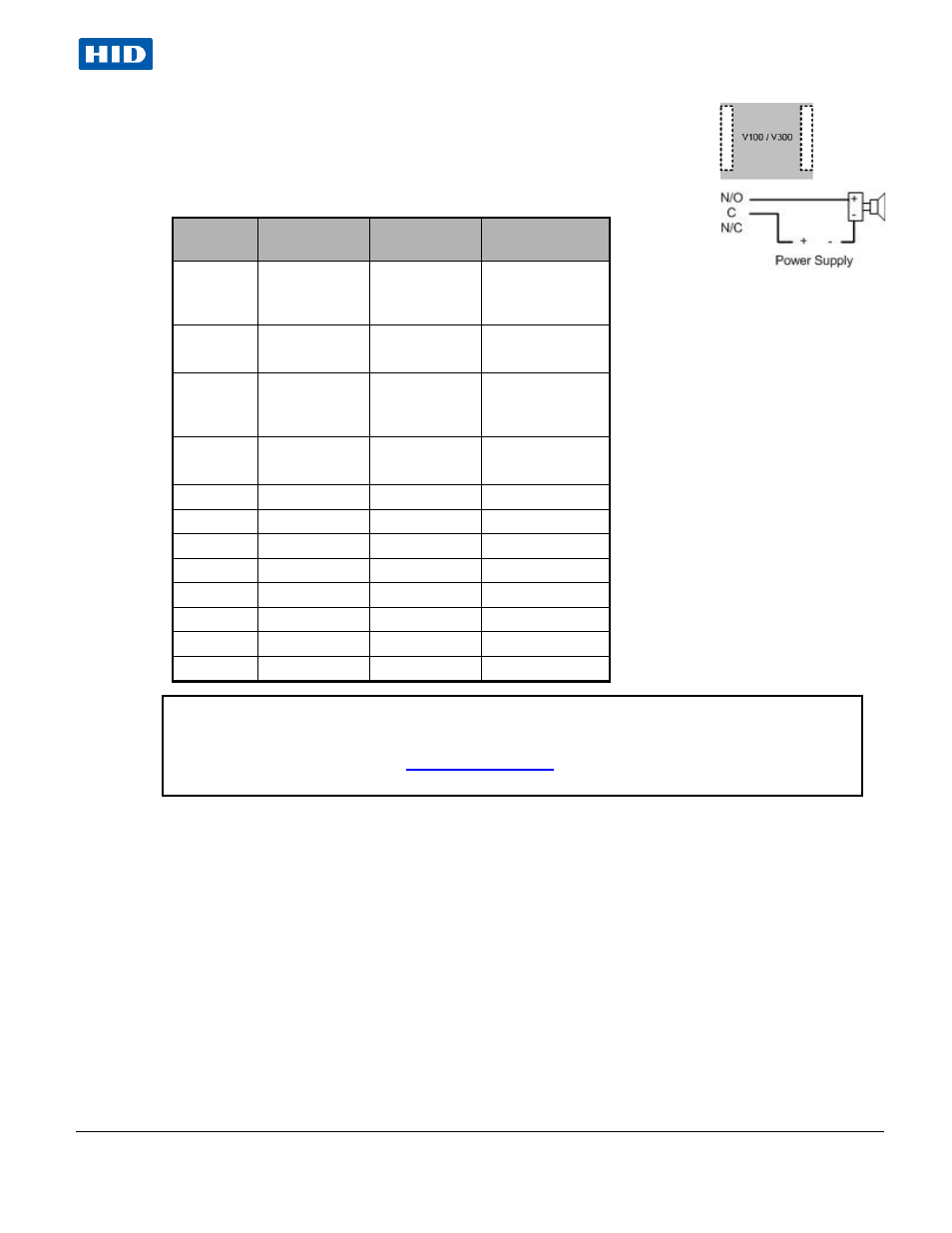

5. Output Connections (All VertX units) – All Output connections are used
for general purpose controls. The following table shows where the various
outputs are located. Pin numbers shown use the convention “NO/C/NC”.
For example, Output 1, V2000: P3 Pin1 is NO (Normally Open,) Pin 2 is C
(Common,) and Pin 3 is NC (Normally Closed).
Note: Relays are dry contact rated for 2Amps @ 30VDC.
Output
number
V100 V200 V300
1
P3 Pins 1/2/3
Strike (lock)
Relay 1
P3 Pins 2/3/4 P1 Pins 1/2/3
2
P3 Pins 4/5/6
Aux Relay 1
P6 Pins 3/2/1 P1 Pins 4/5/6
3
P6 Pins 6/5/4
Strike (lock)
Relay 2
P1 Pins 7/8/9
4
P6 Pins 3/2/1
Aux Relay 2
P2 Pins 1/2/3
5 P2 Pins 4/5/6
6 P2 Pins 7/8/9
7 P4 Pins 9/8/7
8 P4 Pins 6/5/4
9 P4 Pins 3/2/1
10 P5 Pins 9/8/7
11 P5 Pins 6/5/4
12 P5 Pins 3/2/1
CAUTION: Some magnetic locks exhibit both high inrush current when activated and a high
instantaneous break voltage when de-energized due to magnetic field collapse. It is
recommended you use of a snubber circuit across the controlling relay terminals to protect the
controlling relay contacts. Go to
support.hidglobal.com , see Solution 891 - How do I wire a High
In-Rush Current locking device to VertX/Edge/Edge Solo?.
6. Input Connections (All V100-Series devices) – Input connections are analog inputs used for a
combination of specific functions such as Request-to-Exit (REX), Door monitor, etc. They can also be
used as general purpose monitoring. Connect one side of the switch or contact to the + (plus) lead and
the other to the – (minus) lead. The following table shows where the inputs are located. Pin numbers
shown on the cover use the convention +/–.
The default REX input configuration is normally open (NO) unsupervised (no EOL resistors).
However, the default door switch (DS) configuration is Normally Closed (NC), unsupervised (no
EOL resistors).
All other input points are defaulted for NO switches and are unsupervised (no EOL resistors).
