VertX V100, V200 and V300 Installation Guide
Pin # P7
1 +12VDC
2 Ground
3 Bat Fail -
4 Bat Fail +
5 AC Fail -
6 AC Fail +
7 Tamper -
8 Tamper +
Step 2 Hardware Installation
2.1 Mounting
1. Always mount the interface panels in a secure area.
2. Mount using the four mounting screws (provided) or other appropriate fasteners. Place the fasteners
in the corner holes of the base.
3. Stack the VertX devices with or without the cover. Do not remove the plastic base. Position the VertX
devices in such a way as to provide room for wiring, air-flow and cable runs.
CAUTION: Stacking the VertX devices without the cover risks the danger of breaking the LEDS
unless spacers are used for separation.
2.2 Wiring VertX
CAUTION: Connectors on the VertX devices are positioned to be mirror images and are
not interchangeable once the installation is complete. Therefore, you cannot unplug a
connector from one side and plug it into the corresponding connector on the other side.

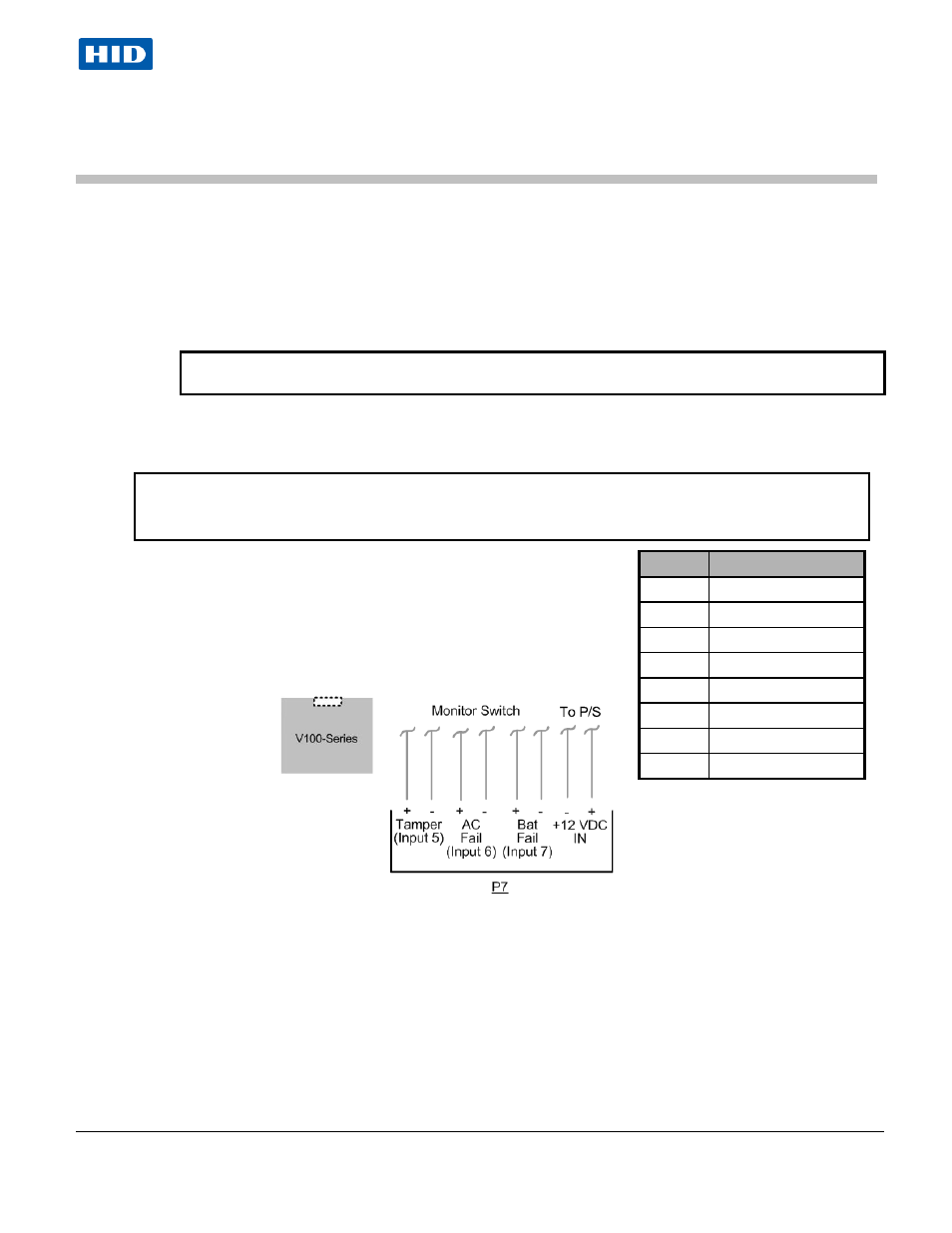

1. Power and Alarm input connections (All VertX units):
Connect power by providing 12VDC to the P7 or P9 connector.
+12VDC goes to P7 Pin 1 or P9 Pin 8 and ground to P7 Pin 2
or P9 Pin 7. Batt Fail, AC Fail, and Tamper switch inputs are
wired as shown in the table. Connect the Bat Fail and AC Fail
inputs to battery low/failure and AC failure contacts provided on
the power supply. Connect the Tamper input to a tamper switch
on the enclosure.
