VertX V100, V200 and V300 Installation Guide
Step 1 Preparations
1.1 What you need before getting started
Prior to starting the installation, completely read this guide.
CAUTION: VertX Interface panels are sensitive to Electrostatic Discharges (ESD). Observe
precautions while handling the circuit board assembly by using proper grounding straps and
handling precautions at all times.
1.2 V100, V200, or V300

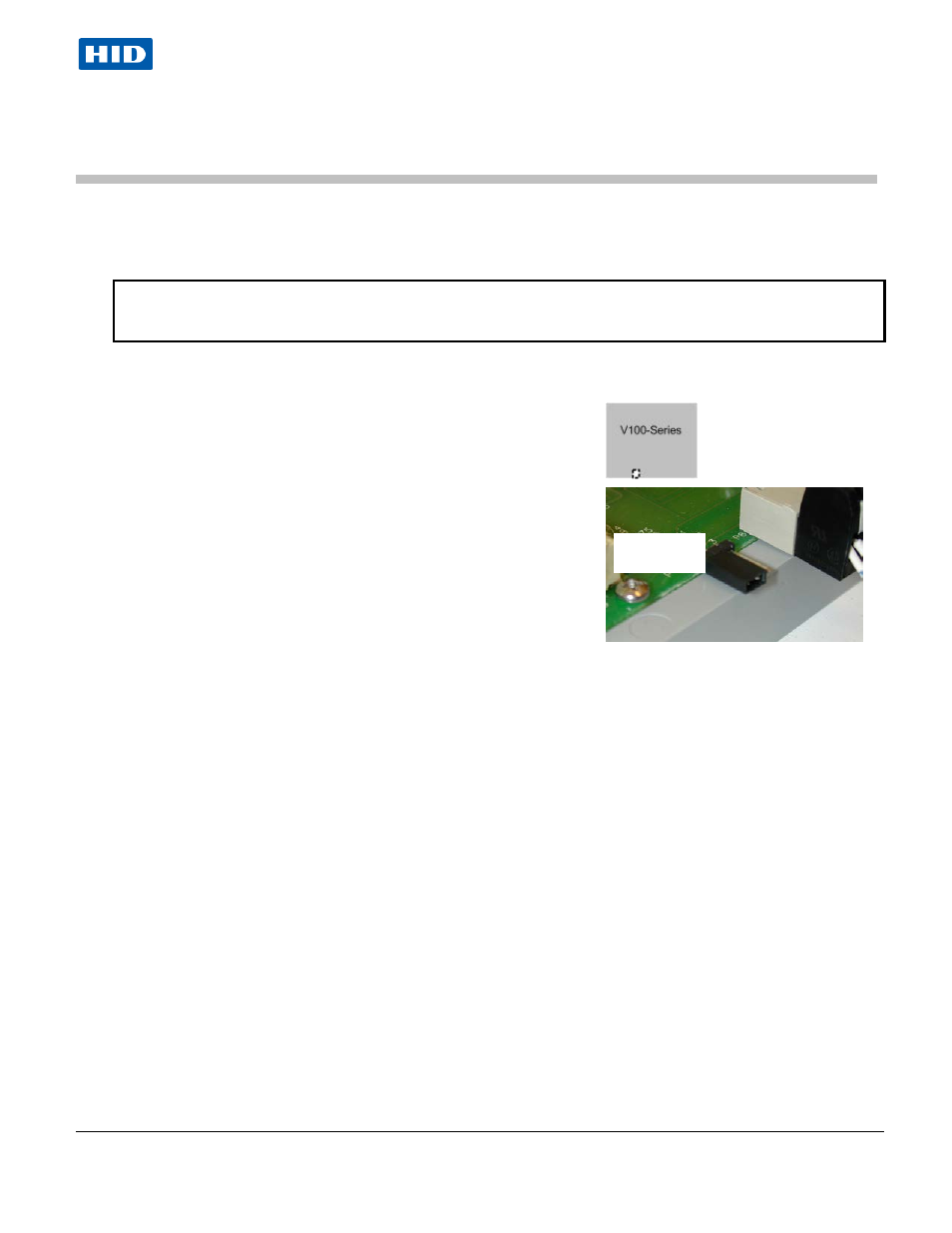

1. If attaching the V100-Series panel to the end of the
RS-485 bus, install a terminating jumper to the In position
on the termination resistor pins, P8 on the cover (P10 on
the PCB) of the V100, V200 and V300.
2. If the V100-Series panel is being installed as part of an
array, or in a third party enclosure, follow the directions
provided by the Integrator or Dealer. Terminating
Jumper
