VertX V100, V200 and V300 Installation Guide
Pin # V100 P1 V100 P4
1 Reader Power Shield Ground
2 Ground Hold
3 Data 0 / Data Beeper
4 Data 1 / Clock Red LED
5 Data Return Green LED
6 Green LED Data Return
7 Red LED Data 1 / Clock
8 Beeper Data 0 / Data
9 Hold Ground
10 Shield Ground Reader Power
2 Reader Connections (V100): Connect
Wiegand or clock-and-data interfaces to a
V100 using the connection table shown.
You can connect up to 10 signal lines for
the reader. Use as many of the signal
lines as required for your reader interface.
Note: Connect the data return line to the
same ground as the reader power if the
reader is not powered by the VertX units
12VDC.

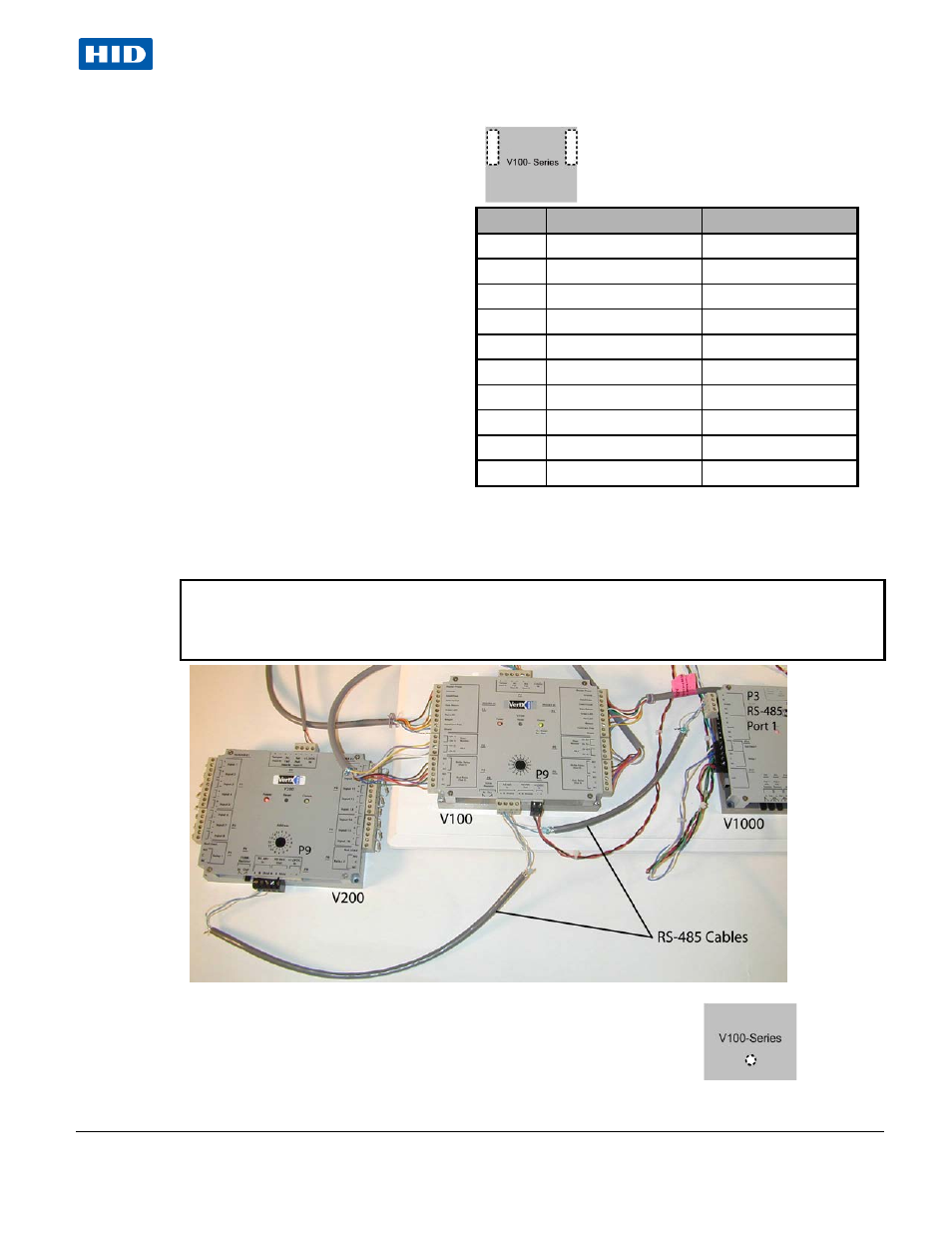

3. RS-485 Connections –
Connect the V100 panel to the V1000 controller through the RS-485 cable. See the V1000 Quick
Install Guide for further information.
CAUTION: The V1000 RS-485 Ports 1 & 2 (P1) are a common bus and therefore cannot have
panels with duplicate Interface Addresses assigned. The same is true of the V1000 RS-485,
Ports 3 & 4 (P4). For example, two panels, both with Interface Address 0 (factory default),
cannot be connected to Ports 1 and/or 2 (P1).
4. Interface Address – Set the interface address by turning the Address
dial. Ensure that the V100 Interface Address is documented in the
Hardware Installation Worksheet (found in the back of the HID VertX
V1000 Quick Install guide).
