6. Fasten both hose clamps to the radiator inlet
and outlet fittings, using a pair of long nose
pliers.
7. Insert and fasten the provided PCI pass-thru
bracket, and finally route the fan electrical
connectors through the rubber grommet.
Page 5
5
5
/
/
F
F
I
I
L
L
L
L
I
I
N
N
G
G
-
-
U
U
P
P
A
A
N
N
D
D
T
T
E
E
S
S
T
T
I
I
N
N
G
G
T
T
H
H
E
E
S
S
Y
Y
S
S
T
T
E
E
M
M
System Setup Overview

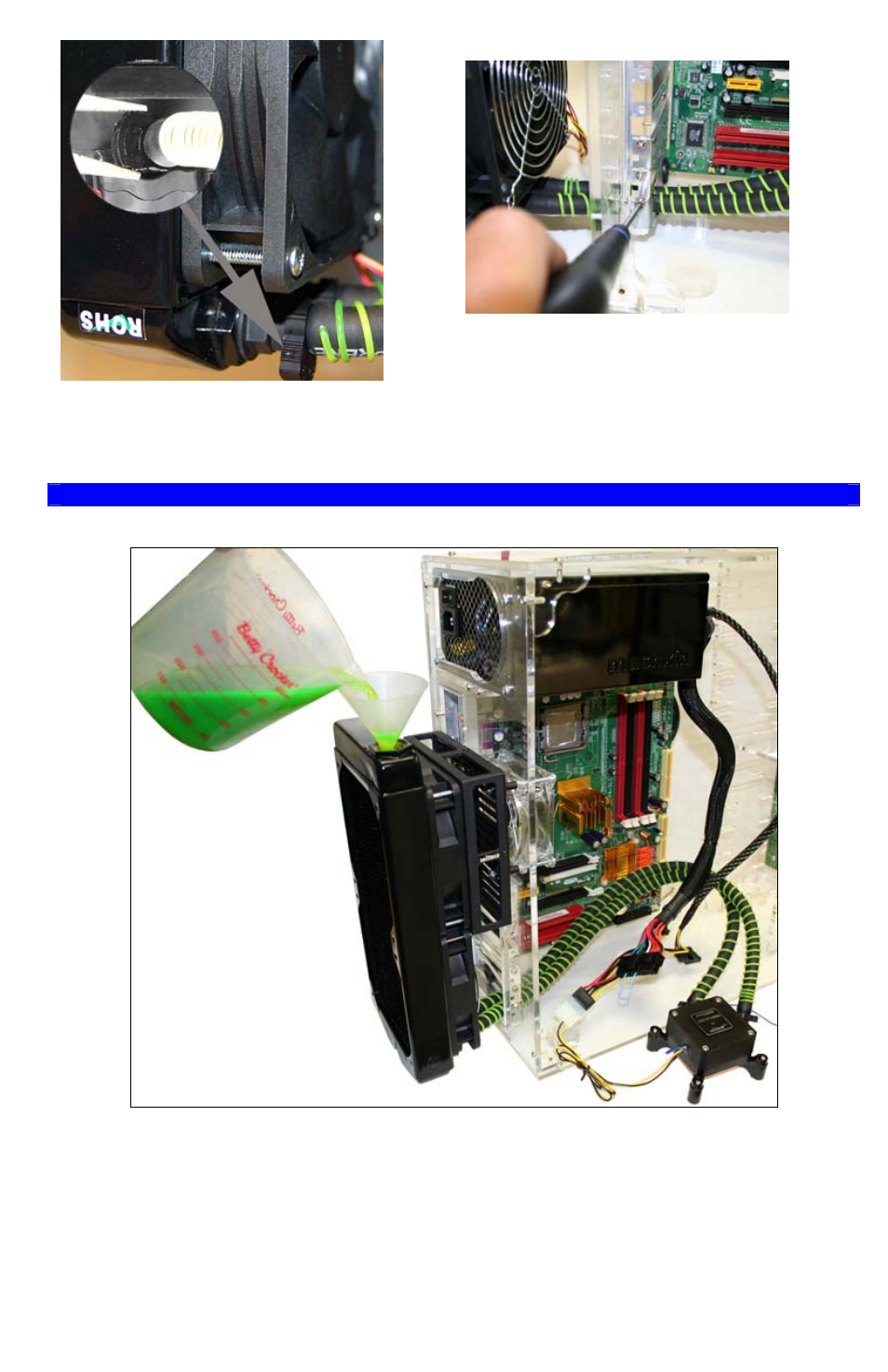

a/ Remove the Apogee™ Drive from the motherboard, and place it flat on your bench as shown
above; then connect the Apogee™ Drive power plug to the Power supply.
b/ In order to fill-up the liquid cooling system with coolant and test it, you will need to be able to run
the Apogee™ Drive pump. This necessitates that you start-up the power supply while it is not being
connected to the motherboard.
It is possible to turn the PSU on and off with its power switch by using a simple paper clip to
connect pin 14 (PS-ON – GREEN) to any BLACK wire (ground) on the 20 pin ATX connector as
shown hereafter. However, because of the possibility of user error, which could result in short
