Swiftech H20 220 BOOKLET User Manual
Page 6

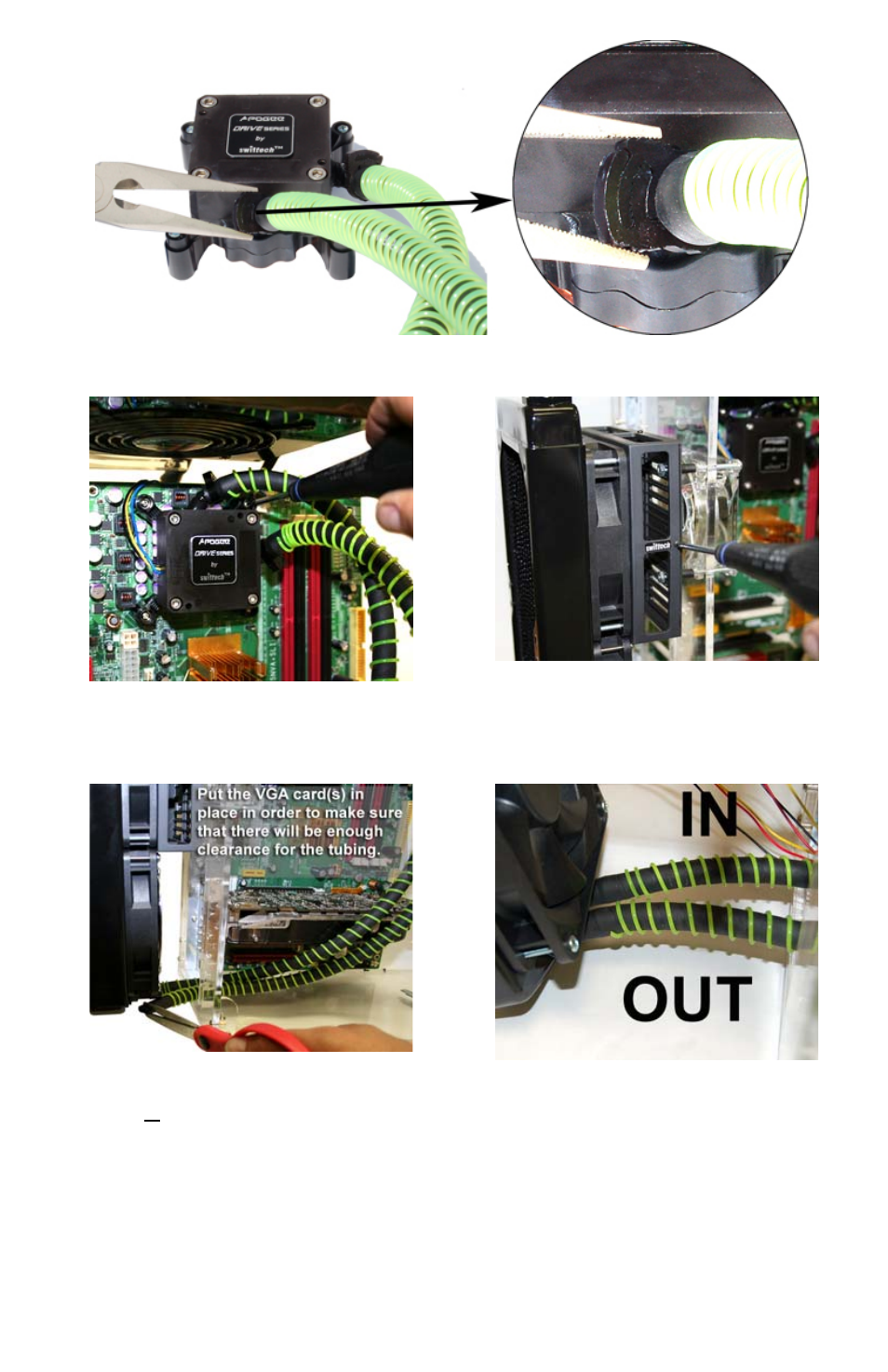

1. Attach the tubes to the Apogee™ Drive fittings and clamp them as shown. The clamps should
always be completely closed to provide a proper seal.
2. Place the Apogee Drive on the CPU, and
then fasten the screws just enough to hold it in
place. Fully tightening of the screws is not
necessary at this time.
3. Fasten the Radiator/Radbox assembly to the
Radbox base plate using the provided (4)
screws.
4. Route the tubing thru the PCI slot the most
directly in front of the radiator fittings, and cut
the tubing if necessary. Always leave sufficient
slack to the tube, so that it will not kink.
5. Attach the tube coming from the Apogee
Drive OUTLET (see label on the Apogee™
Drive), to the Radiator INLET as shown above.
