Swiftech H20 220 BOOKLET User Manual
Page 5

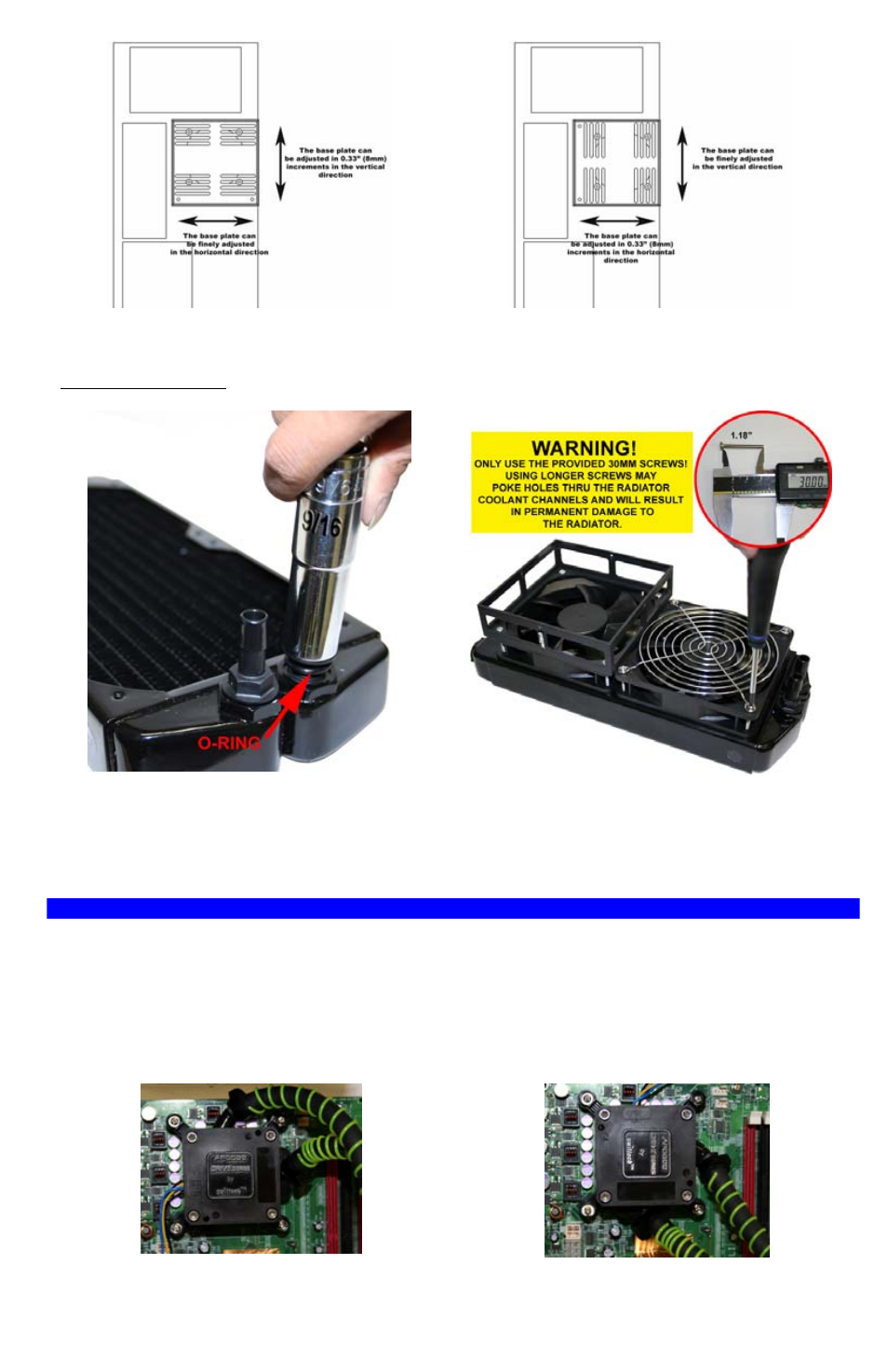

When the exhaust fan is smaller than 120mm, such as 92mm, 80mm or even 60mm, the base
plate can be adjusted as shown above.
Radiator Preparation
1. Fasten the provided fittings to the radiator
using a 9/16 (14mm) deep socket, without
forgetting the o-rings! Lock the fittings firmly.
2. Install the provided fans, fan guard, and
Radbox housing as shown above, only using
the provided 30mm (1.17”) long screws. Please
read the critical warning above to prevent
permanent damage to the radiator.
Page 3
4
4
.
.
S
S
Y
Y
S
S
T
T
E
E
M
M
I
I
N
N
S
S
T
T
A
A
L
L
L
L
A
A
T
T
I
I
O
O
N
N
In order to evaluate the appropriate length of tubing that will be needed between the components
the Apogee™ Drive will need to be temporarily mounted to the motherboard at first, then
dismounted to fill-up the system, and finally remounted permanently.
Note: In a vertical system, the Apogee™ Drive can only be oriented in two different positions as
shown below.
Position A
Position B
