OM-SN-G 21

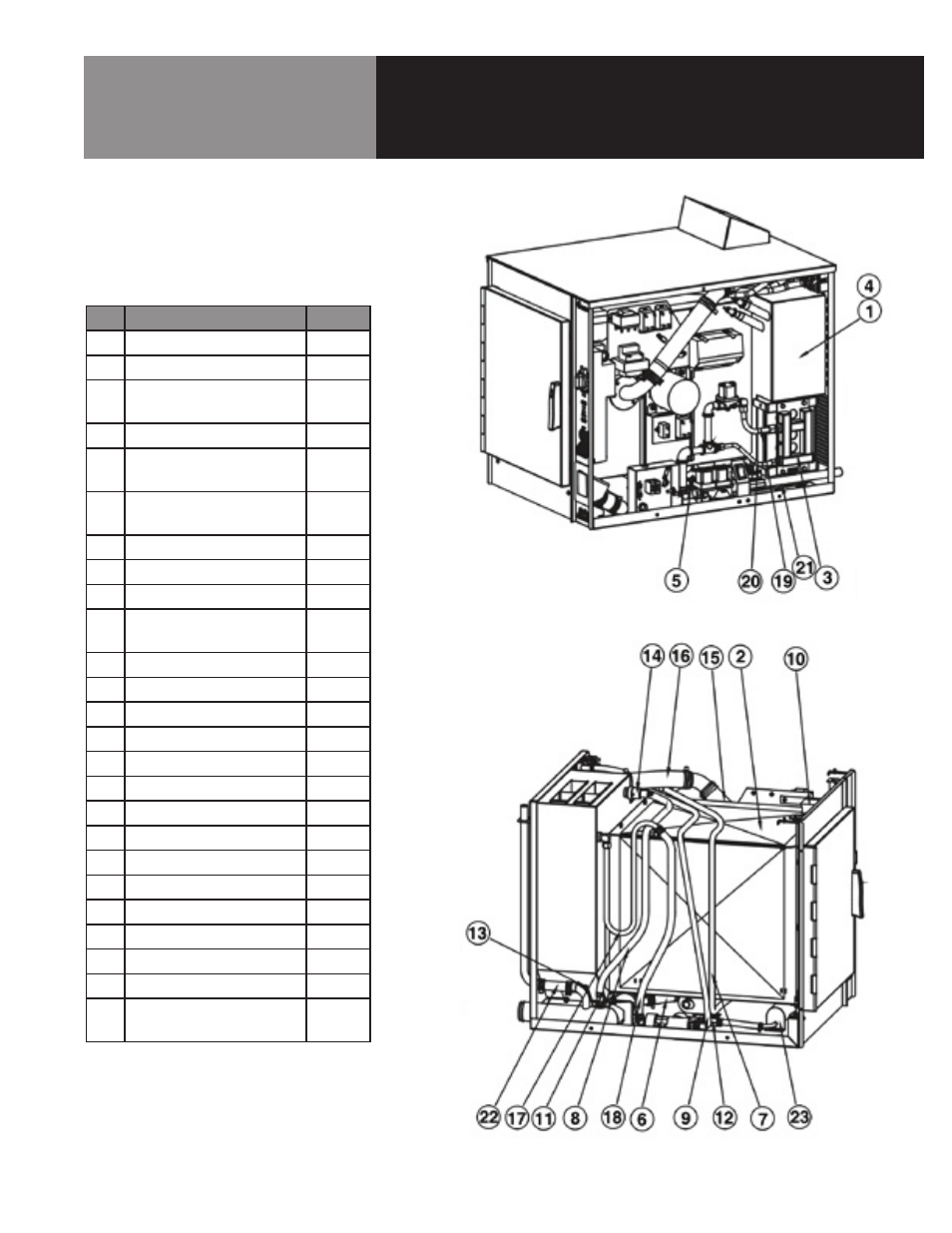

Parts List
To order parts, contact your authorized
Service Agency. Supply the model designation,
serial number, part description, part number,
quantity, and when applicable, voltage and
phase.
KEY DESCRIPTION PART #
1 STEAM GENERATOR 138521
2 CAVITY 138549
3 MANIFOLD ASM -
NATURAL GAS 138585
MANIFOLD ASM - PROPANE 138586
4 INSULATION STEAM
GENERATOR 138588
5 DRAIN HOSE STEAM
GENERATOR 138464
6 DRAIN HOSE 138465
7 HOSE, WATER FILL 138467
8 HOSE CONDESATE 138468
9 HOSE, DELIME (SINGLE
STACK) 138449
10 CAVITY INSULATION 096738
11 WATER FLOW REDUCTION 112720
12 CHECK VALVE 138428
13 GASKET 106232
14 PRESSURE RELIEF 132183
15 HOSE, 10 1/2” STEAM INLET 138445
16 HOSE, 7 7/8” STEAM INLET 138446
17 TRAP 106229
18 HOSE, TRAP 138451
19 TUBE, HIGH FIRE 138425
20 TUBE, LOW FIRE 138426
21 TUBE, PILOT 138427
22 HOSE, VENT 138447
23 DEIME TANK ASM 138415
X HOSE, DELIME (DOUBLE
STACK) 138450
x = Item not depicted/called out in drawings
