Operation
WARNING
ANY POTENTIAL USER OF THE EQUIPMENT
MUST BE TRAINED IN SAFE AND CORRECT
OPERATING PROCEDURES.
A. Controls
Operator controls are on the front right of the unit.
The steamer control panel has the following touch pads and indicator lights:
1. The ON/OFF touch pad gets the steamer ready for use, or shuts it off.
2.
The READY indicator light shows that the steam generator is at standby
temperature and the cavity is hot enough to begin steaming.
3. The CLEANING indicator light is lit when the unit is operating in the
cleaning mode.
4. The SERVICE indicator light shows when the water level probes have
stopped working, and need to be cleaned (normally an indication of lime
deposits).
When one probe fails, the SERVICE light flashes briefly every few
seconds, but the unit will continue to operate. Delime the unit as soon as
possible.
If the problem continues, both probes may fail. Then the steamer stops
working, the light will flash repeatedly and the beeper will sound.
At
this point you must turn off the power and contact an Authorized
Service Representative for repair.
5. The HI TEMP indicator light comes on when the steam generator is too
hot.
The unit will automatically shut off, and cannot be turned on again until
the steam generator cools and the HI TEMP indicator light goes out.
6. The TIMING indicator light stays on when the timer is running.
7. The CLEAN touch pad is used to start the automatic 50 minute cleaning
cycle.

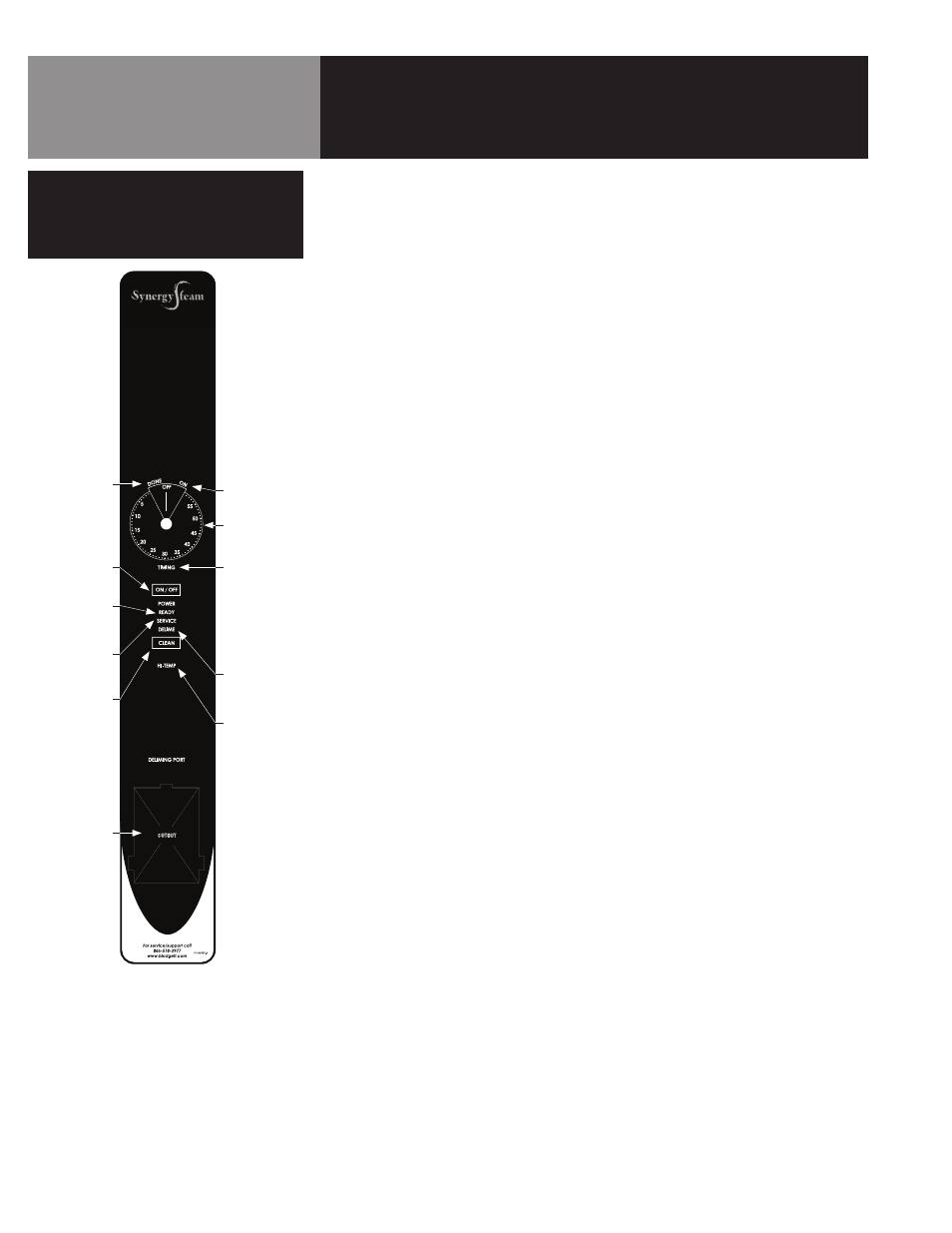

DONE LIGHT
DELIME PORT
POWER ON/OFF
TOUCH PAD
STEAMER TIMER
TIMING
INDICATOR
LIGHT
CLEANING
INDICATOR LIGHT
HIGH TEMP
INDICATOR
LIGHT
CLEAN CYCLE
TOUCH PAD
READY
INDICATOR LIGHT
SERVICE
(“Delime Me”)
INDICATOR LIGHT
MANUAL ON
POSITION/LIGHT
