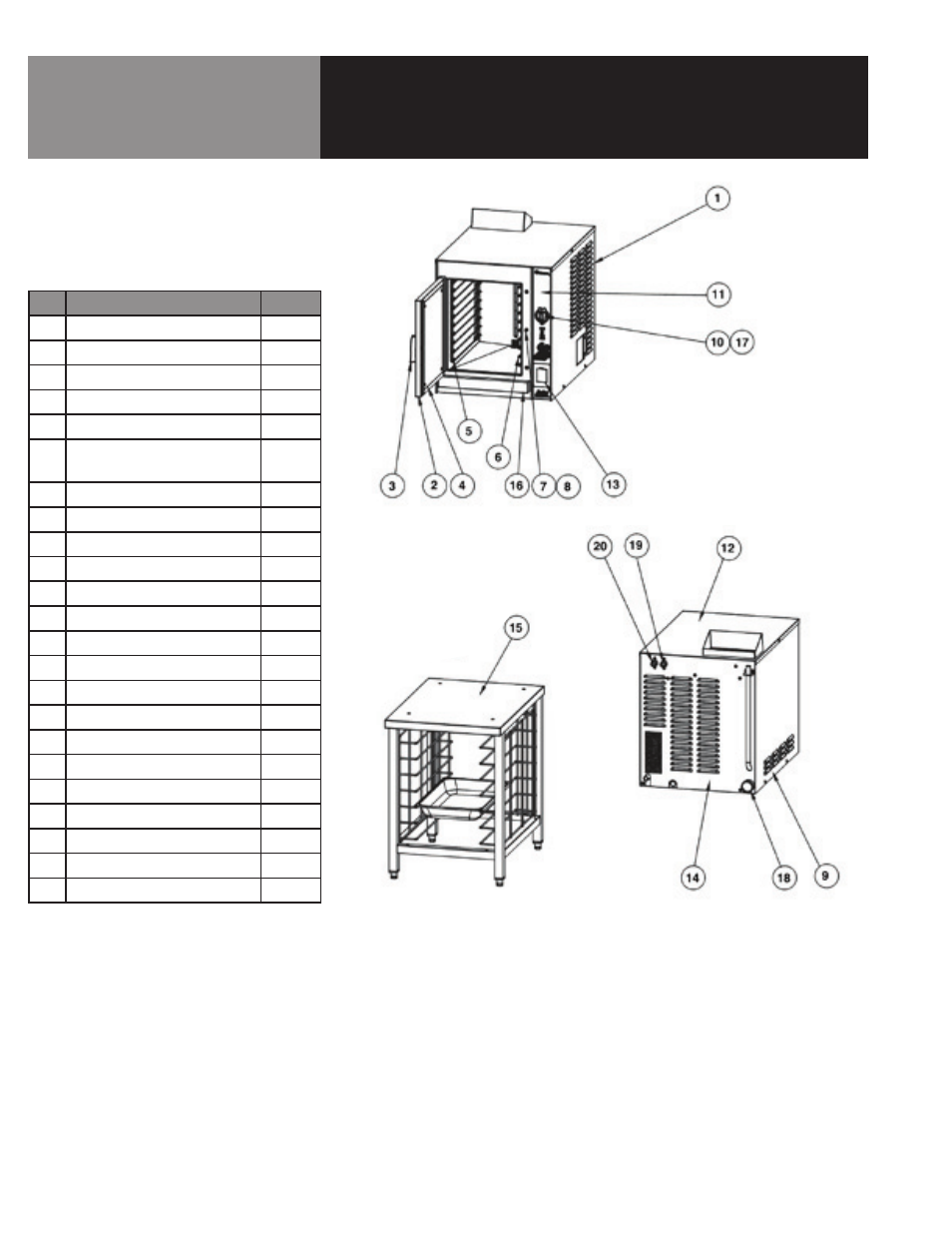

Parts List - 5G-SN
To order parts, contact your authorized
Service Agency. Supply the model
designation, serial number, part description,
part number, quantity, and when applicable,
voltage and phase.
KEY DESCRIPTION PART #
1 RIGHT SIDE PANEL 138532
2 DOOR ASSY, COMPLETE 170128
3 DOOR HANDLE 070123
4 DOOR GASKET 125907
5 LEFT PAN RACK 125901
6 BLOWER COVER/RACK (FAN
BAFFLE) 125902
7 DOOR LATCH PIN 078914
8 DOOR PIN LOCK NUT 003823
9 LEFT SIDE PANEL 138534
10 TIMER KNOB 123100
11 FRONT PANEL OVERLAY 170160
12 TOP PANEL 138536
13 FUNNEL, DELIME 106624
14 BACK PANEL 138530
15 OPTIONAL TABLE 100913
16 DRIP TRAY 094151
17 TIMER FASTENER NUT 101145
18 DRAIN TUBE 138546
19 WATER VALVE SINGLE 071235
20 WATER VALVE DOUBLE 100934
x MOTOR SHAFT SEAL 096868
x OPTIONAL LEGS 041121
x CAVITY FAN 096790
x = Item not depicted/called out in drawings
