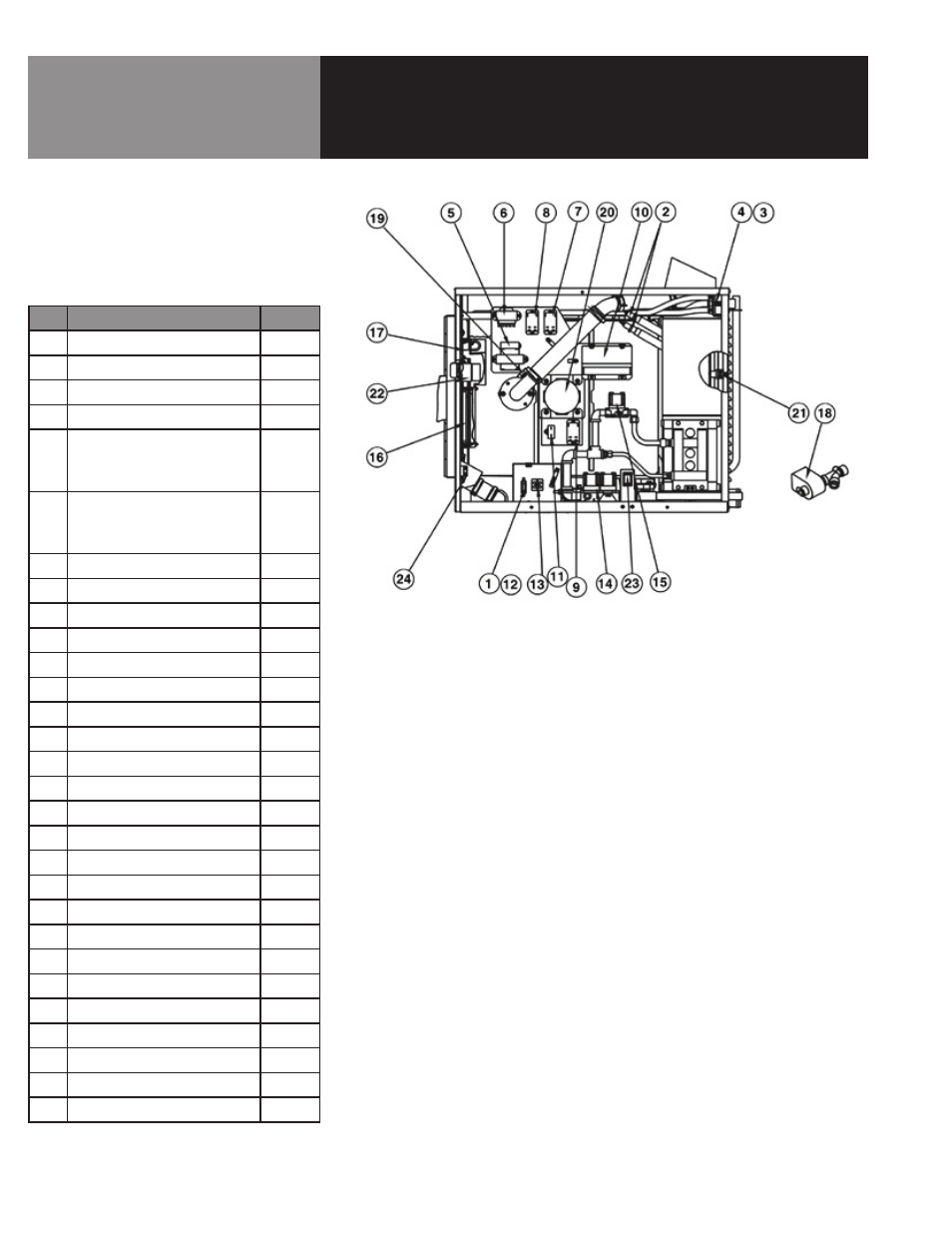

Electrical Parts List
To order parts, contact your authorized
Service Agency. Supply the model designation,
serial number, part description, part number,
quantity, and when applicable, voltage and
phase.
KEY DESCRIPTION PART #
1 FUSE, 3 AMP 077853
2 WATER LEVEL PROBES 070178
3 WATER VALVE SINGLE 071235
4 WATER VALVE DOUBLE 100934
5 TRANSFORMER 120V
PRIMARY/ 24V SECONDARY
75VA 106233
6 TRANSFORMER 115/230V
PRIMARY/ 20VAC CT
SECONDARY 119815
7 RELAY, 12VDC 119813
8 RELAY, 24VAC 119814
9 RELAY 24VDC 138420
10 IGNITION MODULE 085153
11 CAPACITOR 096813
12 FUSE HOLDER 077854
13 TERMINAL BLOCK 003887
14 MAIN GAS VALVE 098443
15 GAS VALVE 099906
16 CONTROL BOARD 119801
17 TIMER BOARD 119817
18 DRAIN VALVE 074594
19 READY THERMOSTAT 099947
20 MOTOR ASSY 146880
21 OVERTEMP SENSOR 096892
22 TIMER 096826
23 PILOT SWITCH 087951
24 DOOR SWITCH 096857
X HARNESS, POWER 130397
X HARNESS, CONTROL 130399
X HARNESS, DRAIN 130398
X HARNESS, TRANSFORMER 119871
X HARNESS, DOOR + SWITCH 119878
x = Item not depicted/called out in drawings
