Installation Instructions
A204
For Outdoor Chain Hung Fixture 36-6007 Page 1 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 22754

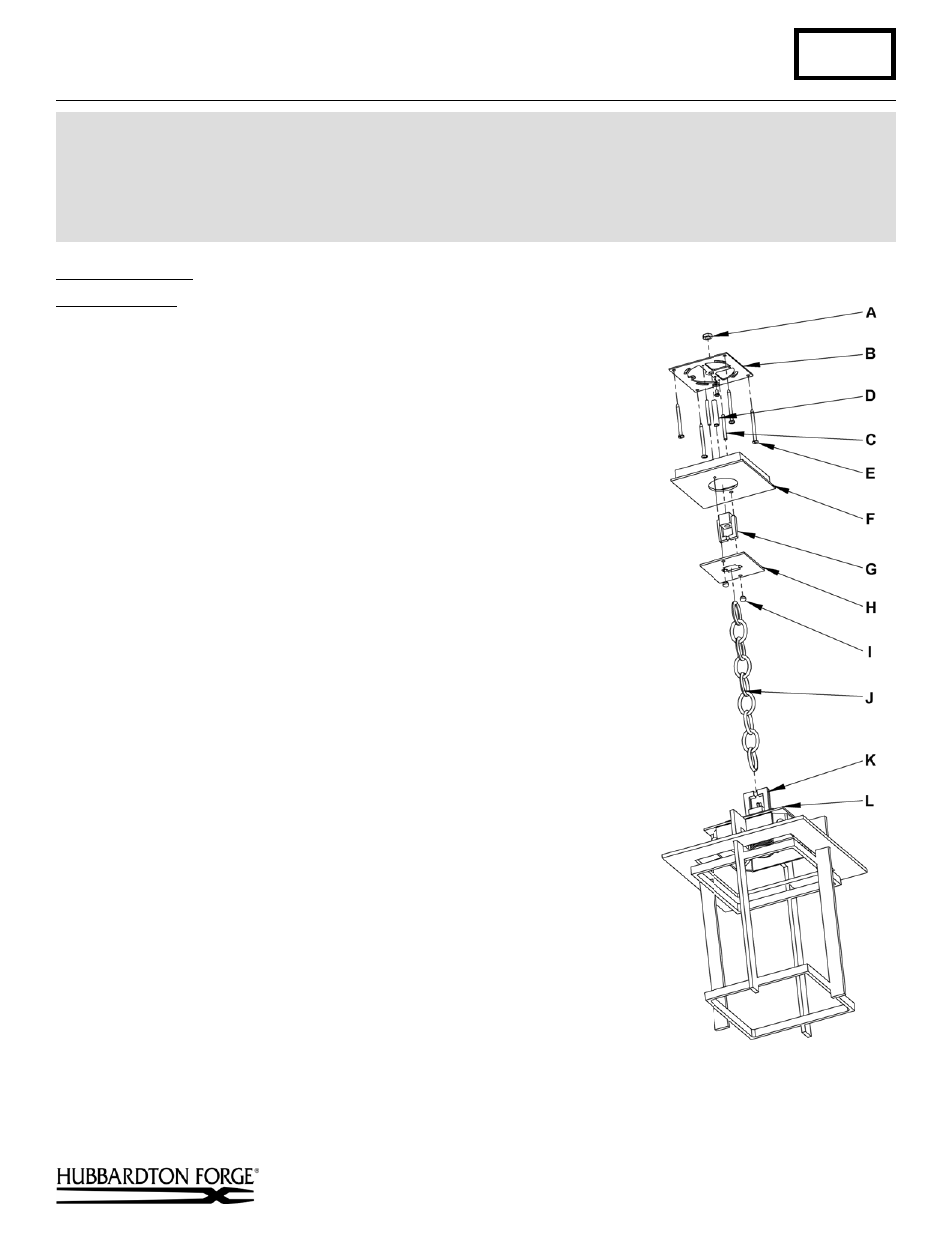

To Install Fixture (Figure 1)
Component Parts
A Lock Nut
B Crossbar
C Threaded Stud (2)
D Nipple
E Wood Screws (4)
F Canopy
G Canopy Loop
H Cover Plate
I Knurl Ball (2)
J Chain
K Fixture
Loop
L Fixture Top
Caution: Be sure power is off at the main breaker box prior to
installation
1. Carefully unpack the fixture from the carton.
2. Thread studs (C) through appropriate holes in crossbar (B) to
match holes in canopy (F).
3. Thread the nipple (D) into the crossbar (B) and secure with lock
nut (A).
4. Attach one end of the chain to the fixture loop (K). Lace the wire
through every other link of the chain (J) to the end.
5. Slide cover plate (H) and canopy (F) over chain (J) until they rest
against fixture top (L).
6. Fasten the chain to the canopy loop (G) and slip wires through the
canopy loop (G) and nipple (D). Make sure to provide enough
slack in the wire to ensure weight of fixture is supported by the
chain.
7. Raise fixture to ceiling and using at least two wood screws (E)
attach cross bar (B) to a structural member in the ceiling,
centering the crossbar over the outlet box. We've supplied wood
screws with your fixture; however, different materials and/or
construction methods may require different fasteners. If in doubt,
contact a qualified electrician. Do not attach crossbar directly to
outlet box.
8. Using suitable wire connectors (not provided) connect fixture
wires to supply wires (white to ribbed side of the fixture cord,
black to smooth side). Connect all ground wires to crossbar using
ground screw.
Caution: Make sure wire connectors are twisted
on securely, and no bare wire is exposed.
9. Slide canopy (F) and cover plate (H) over threaded studs (C) and
push firmly to ceiling, making sure that no wires are pinched between fixture
canopy and ceiling. Fasten with knurled balls (I). Be sure studs (C) are fully
seated in the knurled balls (I).
10. Install glass (see instructions following).
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
(Figure 1)
