Hubbardton Forge 365710 - Manual

Installation Instructions
A319
Modern Prairie Chain Hung 36-5705 & 36-5710 Page 1 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 27926
To Install the Canopy (Figure 1)
Component Parts
A Ground Screw
B Crossbar
C Lock Nut
D Nipple
E Canopy F Canopy Loop
G Loop Collar
H Fixture Loop
I
Chain
Caution: Be sure power is off at the main breaker box prior to installation
1. Carefully unpack the fixture from the carton.
2. Using two machine screws (not provided), fasten the crossbar (B) to the
electric box.
Note: A new electric box comes with screws. When replacing a fixture,
retain the existing screws for use with the new fixture.
3. Thread the nipple (D) into the crossbar (B) and secure with lock nut (C).
Slide canopy (E) over nipple (D), and attach the canopy loop (F) to the
nipple (D). Thread loop collar (G) onto canopy loop (F). Adjust the
nipple to proper length to ensure a snug canopy fit before proceeding.
4. Remove loop collar (G) and canopy (E) before proceeding with
installation.
5. Attach one end of the chain (I) to the fixture loop (H). Lace the wire
through every other link of the chain to the end. Slip wires and chain
through the collar and canopy (G & E). Fasten the chain to the canopy
loop (F) then slip wires through the loop and nipple, into the electric box.
Make sure to provide enough slack in the wire to ensure weight of fixture
is supported by the chain.
6. Using suitable wire connectors (not provided) connect fixture wires to
supply wires (white to ribbed side of the fixture cord, black to smooth
side). Run a pigtail lead from crossbar ground screw (A) to the junction
box and connect all ground wires (bare copper or green to bare copper or
green).
Caution: Make sure wire connectors are twisted on securely, and no
bare wire is exposed
7. Raise canopy (E) to the ceiling and secure loop collar (G) to canopy
loop (F).
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.

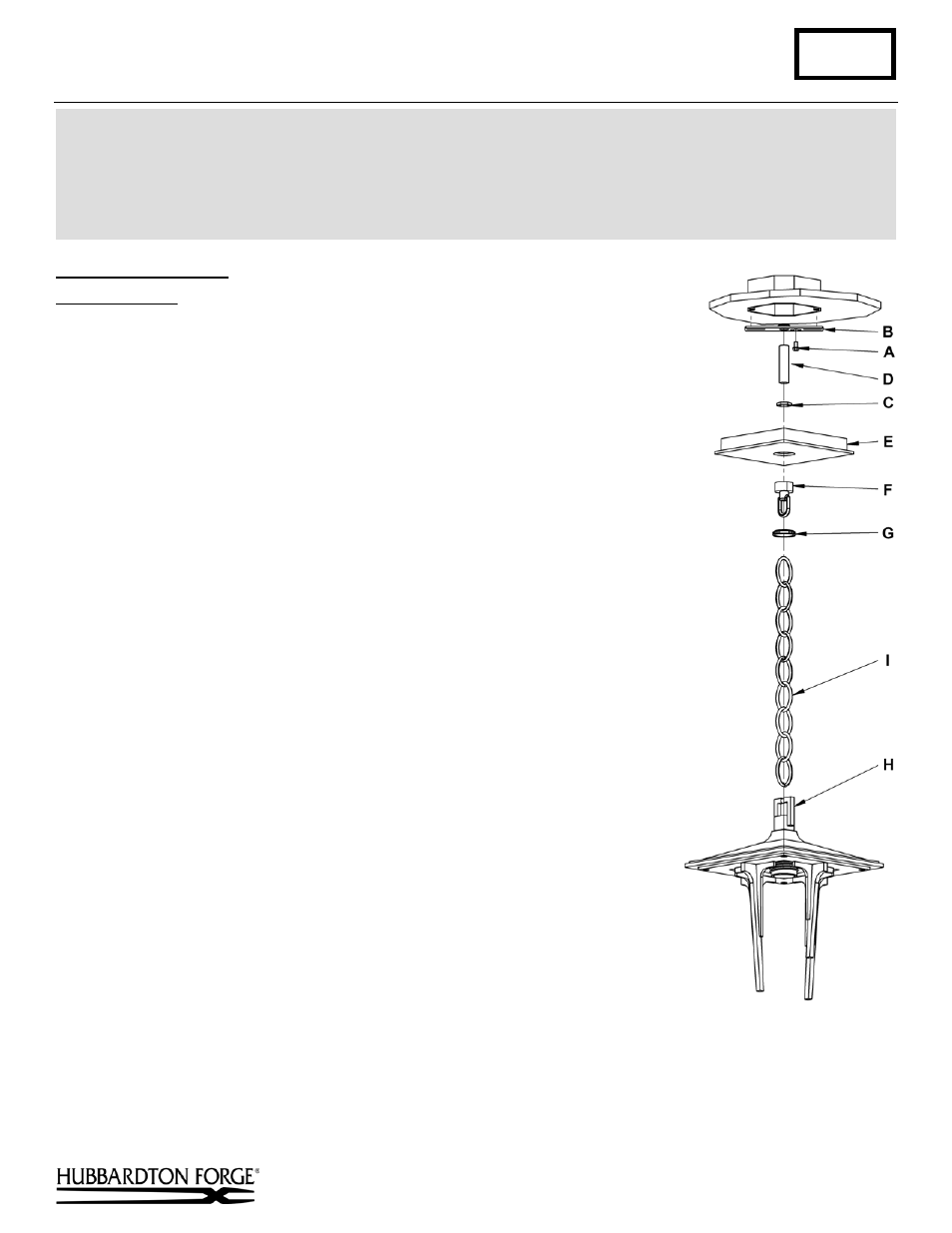

(Figure 1)
