Installation Instructions
A197
For Outdoor Chain Hung Fixture 36-5615 & 36-5615F Page 2 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 22646
12. Using suitable wire connectors (not provided) connect fixture wires to supply
wires (white to ribbed side of the fixture cord, black to smooth side). Connect all
ground wires to crossbar using ground screw.
Caution: Make sure wire
connectors are twisted on securely, and no bare wire is exposed.
13. Slide canopy (F) and cover plate (H) over threaded studs (C) and push firmly to
ceiling, making sure that no wires are pinched between fixture canopy and ceiling.
Fasten with knurled balls (I). Be sure studs (C) are fully seated in the knurled
balls (I).
14. Install glass (see instructions below).

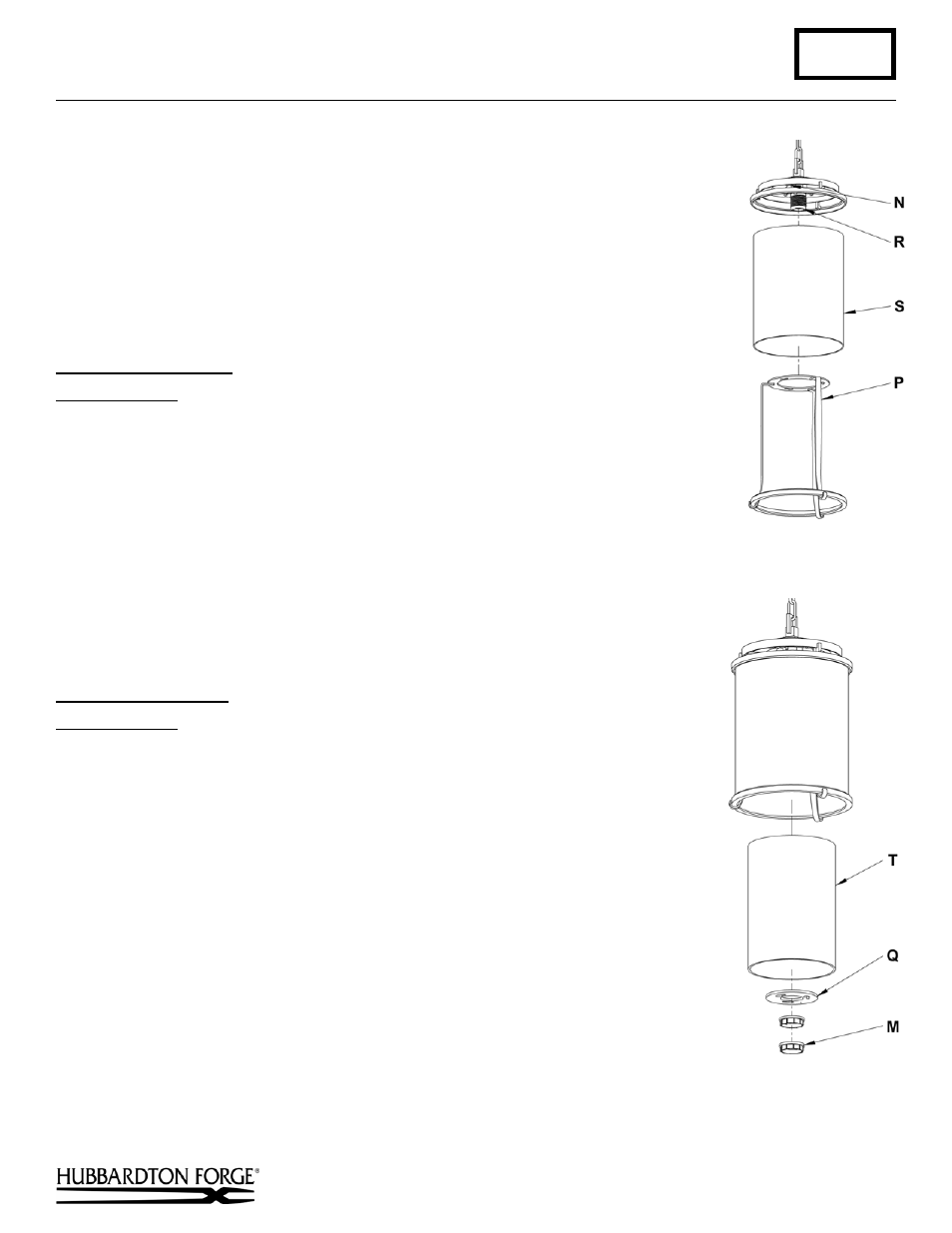

To Install Outer Glass (Figure 3)
Component Parts
N 8-32 x 3/8” Screws (3)
P Spider
Assembly
R Socket
S Outer
Glass (larger diameter glass)
1. Slip outer glass (S) over spider assembly (P).
2. Raise spider assembly (P) with outer glass (S) installed and slip over socket (R)
aligning holes in the top of the spider assembly (P) keyed ring goes over
screws (N).
3. Turn spider assembly (P) counter clockwise until it stops. Tighten three
screws (N) until snug against the spider assembly. Be careful not to over
tighten.
To Install Inner Glass (Figure 4)
Component Parts
M Retaining Ring
Q Washer
T Inner Glass
1. Raise inner glass (T) and washer (Q) over socket aligning holes in washer (Q)
so the washer keyed ring goes over screws.
2. Turn washer (Q) counter clockwise until it stops. Tighten three screws until
snug against the inside of glass (T). Be careful not to over tighten.
3. Thread the first retaining ring (M) on to socket until it is against washer (Q).
4. Thread the second retaining ring (M) onto socket until it is snug against the
first retaining ring. Do not over tighten. Disregard this step for the “F”
version.
5. Install light bulb. “F” version bulb is included.
6. Restore electricity at the main breaker.
If you need further assistance, or find that you are missing any parts, please contact
the dealer from which you purchased this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
(Figure 3)
(Figure 4)
