Installation Instructions
A192
For Meridian Chain-Hung Fixture 36-5610 & 36-5610F Page 2 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 22418

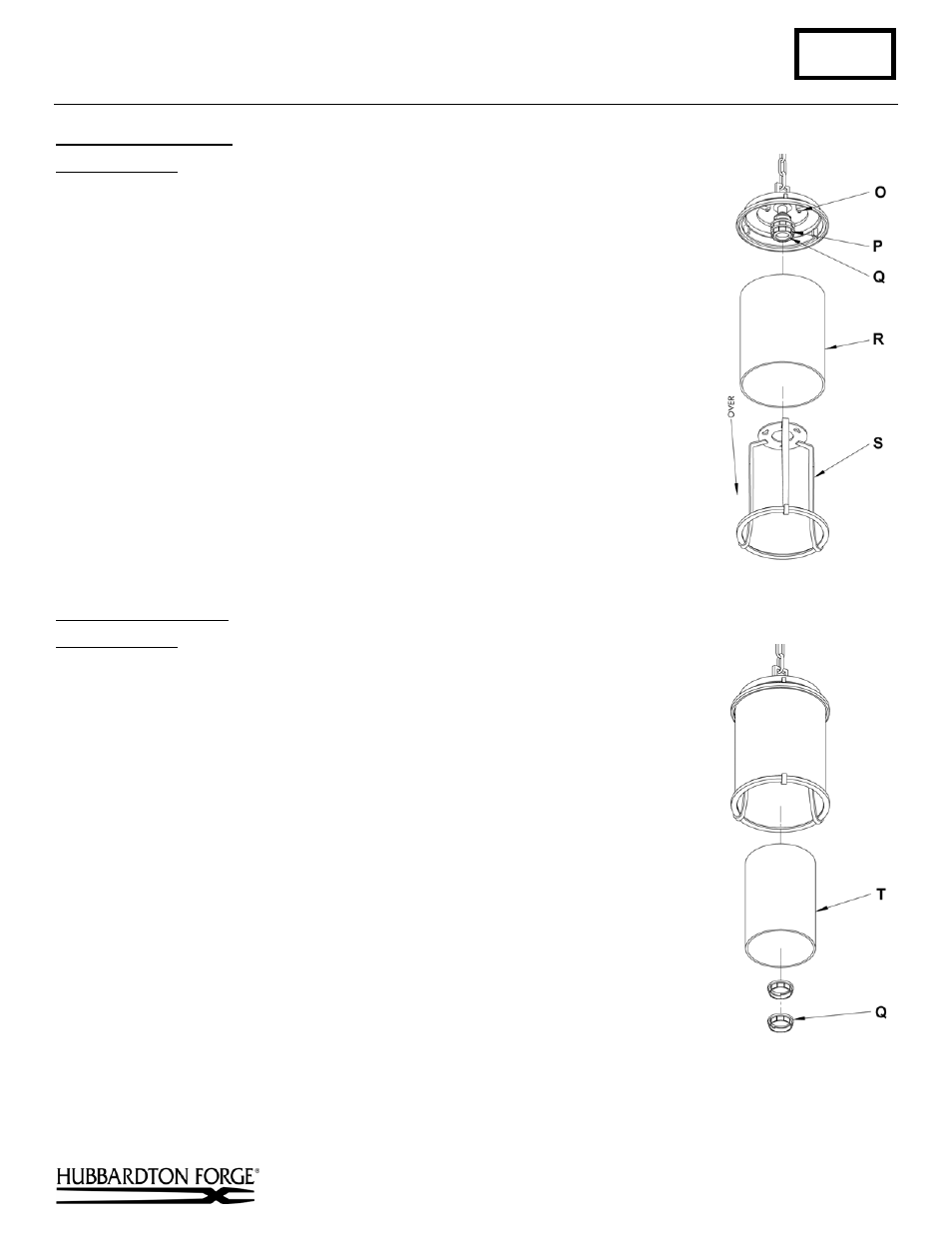

To Install Outer Glass (Figure 2)
Component Parts
O Screws (3)
P Retaining Ring (2)
Q Socket
R Outer
Glass (larger diameter glass)
S Spider Assembly
1. Remove glass retaining rings (P) and put aside and save for later use.
2. Unthread screws (O) that are shipped installed in threaded bosses on underside
of fixture next to socket (Q). Loosen screws until there are only a couple
threads engaged with the threaded bosses.
3. Slip outer glass (R) over spider assembly (S).
4. Raise spider assembly (S) with outer glass (R) installed and slip over socket
(Q) aligning holes in the top of the spider assembly (S) keyed ring goes over
screws (O).
5. Turn spider assembly (S) counter clockwise until it stops. Tighten three
screws (O) until snug against the spider assembly. Be careful not to over
tighten.
To Install Inner Glass (Figure 3)
Component Parts
P Retaining Ring (2)
T Inner Glass
1. Slip inner glass (T) over socket.
2. Thread the first retaining ring (P) onto socket until it is against top of the
inner glass (T).
3. Thread the second retaining ring (P) onto socket until it is snug against the
first retaining ring. Do not over tighten.
4. Install light bulb. “F” version bulb is included.
5. Restore electricity at main breaker.
If you need further assistance, or find that you are missing any parts, please contact
the dealer from which you purchased this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper
installation, lamping or use of this fixture.
(Figure 3)
(Figure 2)
