Installation Instructions
9. Using suitable wire connectors (not provided) connect
fixture wires to supply wires (white to ribbed side of the
fixture cord, black to smooth side). Connect all ground wires
to cupped washer (C) and ground screw (D).
CAUTION: MAKE SURE WIRE CONNECTORS ARE TWISTED ON
SECURELY, AND NO BARE WIRE IS EXPOSED.
10. Slide canopy (H) and cover plate (J) over threaded studs
(E) and push firmly to ceiling, making sure that no wires
are pinched between fixture canopy and ceiling. Fasten with
knurled balls (K). Be sure studs (E) are fully seated in the
knurled balls (K).

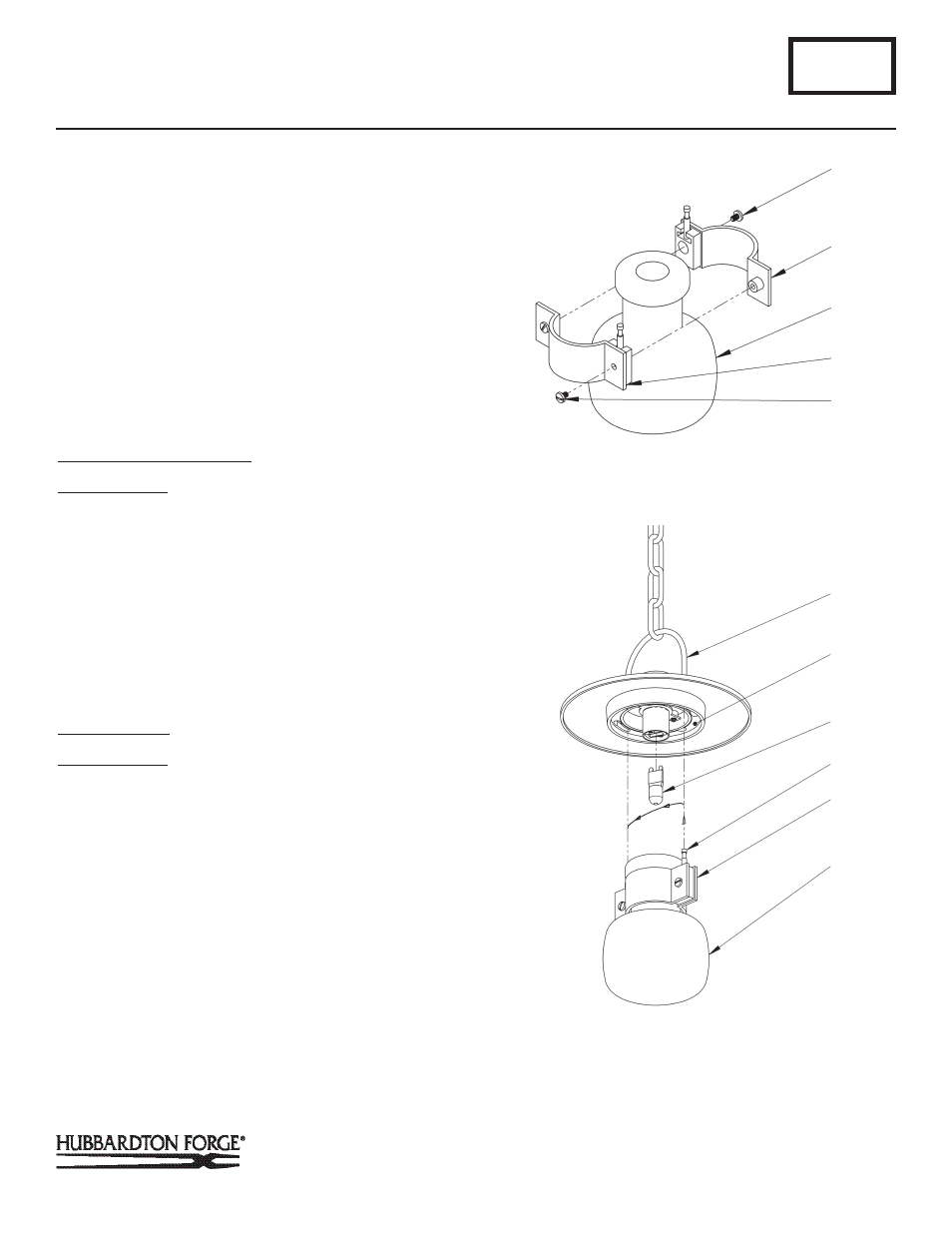

To Install Decorative Band (Figure 2)
Component Parts
N Glass
O Decorative Band (2)
P Binding Screw (2)
1. Binding Screws (P) are shipped installed in the decorative
bands. Remove binding screws (P).
2. Place decorative bands (O) around neck of glass (N).
3. Secure bands with binding screw (P) .
To Install Glass (Figure 3)
Component Parts
M Fixture Assembly
Q Bulb
O Decorative Band
N Glass
1. Install bulb (Q). Be careful not to touch bulb with bare
hands; oil from the hands will dramatically reduce bulb life.
2. Raise Glass (N) so that posts on Decorative band (O) pass
through the plate with the keyway.
3. Rotate Decorative band (O) to the left until the posts stop.
4. Lower band to engage.
A359
Mason Chain-Hung Fixture 363001 & 363003 Page 2 of 2
(Figure 2)
(Continued)
(Continued)
(Figure 3)
M
PLATE WITH
KEYWAY
Q
POST
O
P
O
N
O
P
N
