Assembly & Installation Instructions
G9
For Outdoor Ellipse Bollard 34-7521 & 34-7521F Page 2 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 21223 Rev A
To Install Glass (Figure 2)
Component Parts
C Fixture
E Glass
F Retaining Ring (2)
G Socket
H Socket
Tool
1. Remove retaining rings (F) from socket (G).
2. Slip glass (E) over socket (G).
3. Thread the first retaining ring (F) on to socket (G) using provided socket
tool (H) until it reaches the top of the glass (E).
4. Thread the second retaining ring (F) onto socket using provided socket
tool (H) until it is snug against the first retaining ring. Do not over tighten.
5. Install light bulb and restore electricity at main breaker. Fluorescent
version bulb is provided with fixture.
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased
this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture

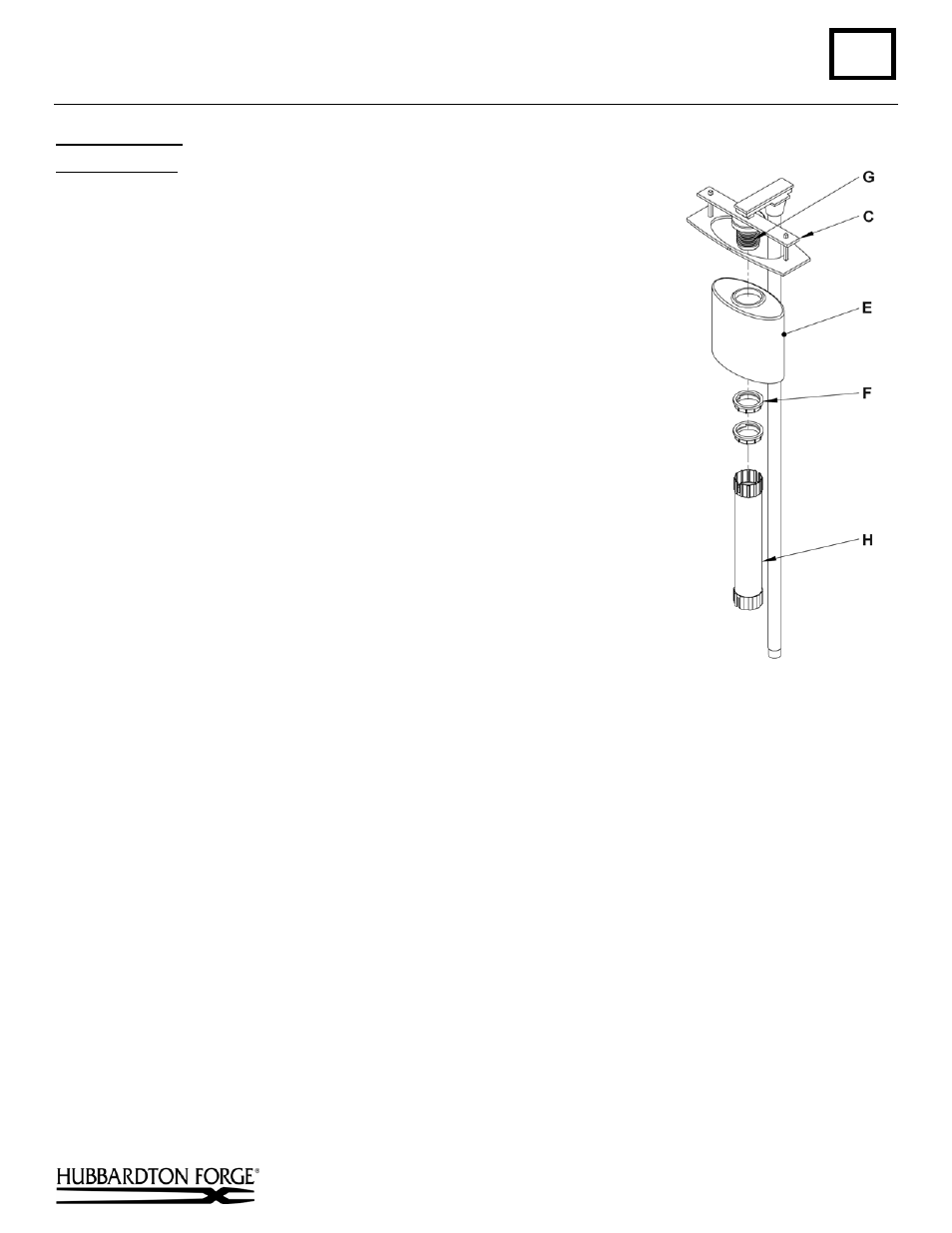

(Figure 2)
