Installation Instructions
B146
Airis Sconce 30-7920 Page 2 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 21272 Rev E

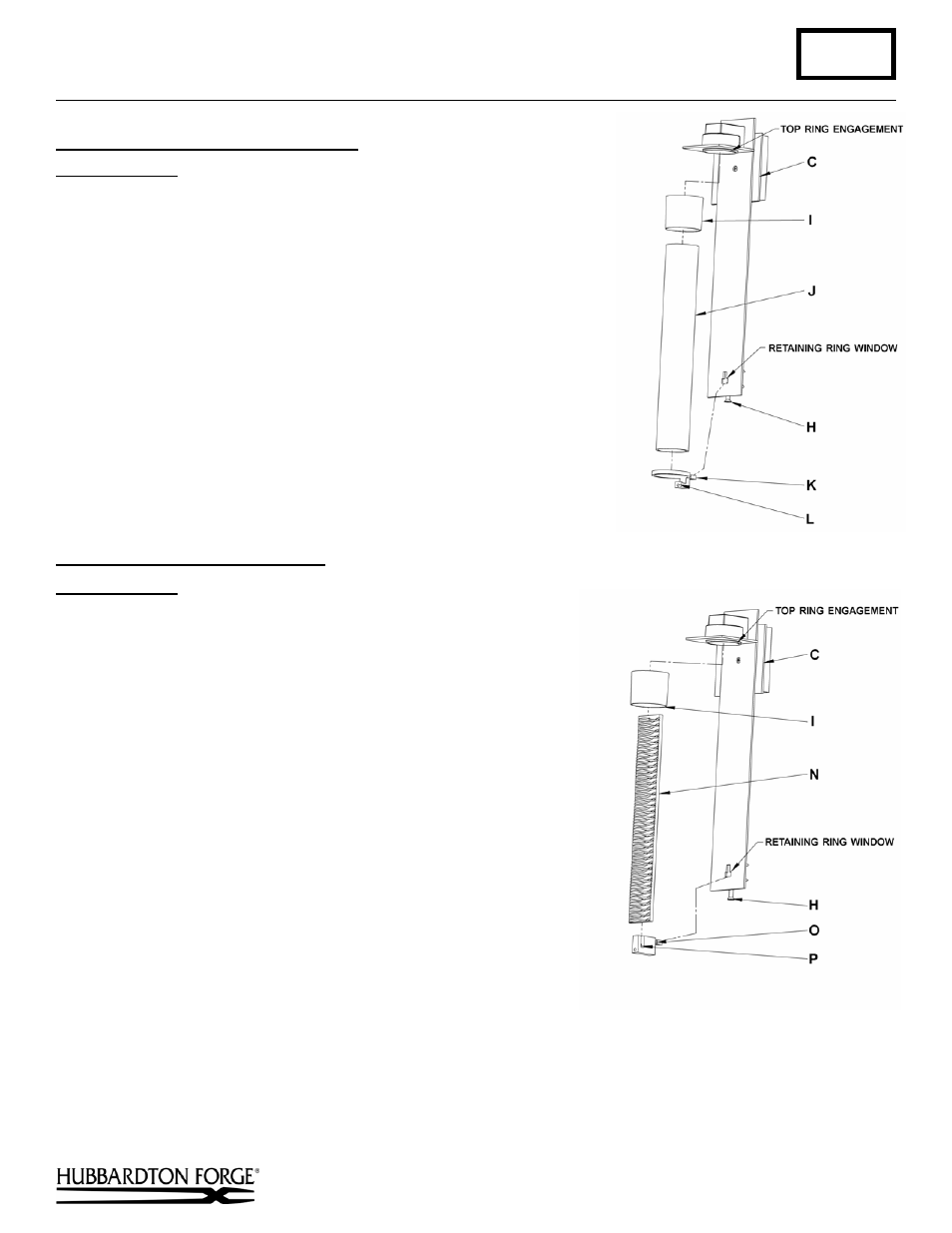

To Install Glass or Mesh Tube Option (Figure 3)
Component Parts
C Fixture
H Screw
I Top Ring
J Glass or Mesh Tube
K Retaining Ring (round one is used for glass/mesh tube)
L Set
Screw
1. Slip top ring (I) over top of glass/mesh tube (J).
2. Raise both pieces so the top ring (I) engages with the upper area of the
fixture (C).
3. Slip retaining ring (K) onto bottom of glass/mesh tube (J) and insert
tab through the window area of the fixture (C).
4. Tighten screw (H) to raise retaining ring (K) until it is tight against
bottom of glass/mesh tube (J). It may be necessary to adjust the set
screw (L) while tightening the brass screw (H) to level. Be careful not
to over tighten.
To Install Aluminum Plate Option (Figure 4)
Component Parts
C Fixture
H Screw
I Top Ring
N Aluminum Plate
O Retainer (flat one is used for plate)
P Set
Screw
1. Install aluminum plate (N) into slot of retainer (O).
2. Make sure aluminum plate (N) is centered with retainer and
tighten set screw (P) from back.
3. Slip aluminum plate (N) inside top ring (I) so it rests as far to the
back as it can.
4. Raise both pieces so the top ring (I) engages with the upper area
of the fixture (C).
5. Insert retainer (O) through the window area of the fixture (C).
6. Tighten screw (H) to raise retainer (O) until top ring (I) is tight.
Be careful not to over tighten.
(continued)
(Figure 3)
(Figure 4)
