Installation Instructions
B137
For Small After Hours Outdoor 30-7858 & 30-7858F Page 2 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 21167
3. Apply a generous bead of a suitable caulking material to caulking lip (I) on the fixture
(Figure 3).
4. Carefully tuck all wires behind the fixture, place fixture firmly against the wall and
fasten with 8-32 x 1 5/8" screws (H). To ensure a water tight seal, apply a thin bead of
caulking around entire perimeter of the fixture.
5. Install light bulb (Fluorescent version bulb is included).
To Install Glass (Figure 4)
Component Parts
A 8-32 x 1/4" Screw
B Top
Plate
C Glass
D Bracket
F Fixture
1. Slide glass (C) in to fixture (F).
2. Slip top plate (B) on to fixture (F) until it rests on top of glass (C).
3. Slip 8-32 x 1/4" screw (A) through top plate (B) and thread in to bracket (D)
and tighten. Be careful not to over tighten.
If you need further assistance, or find that you are missing any parts, please contact the dealer
from which you purchased this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.

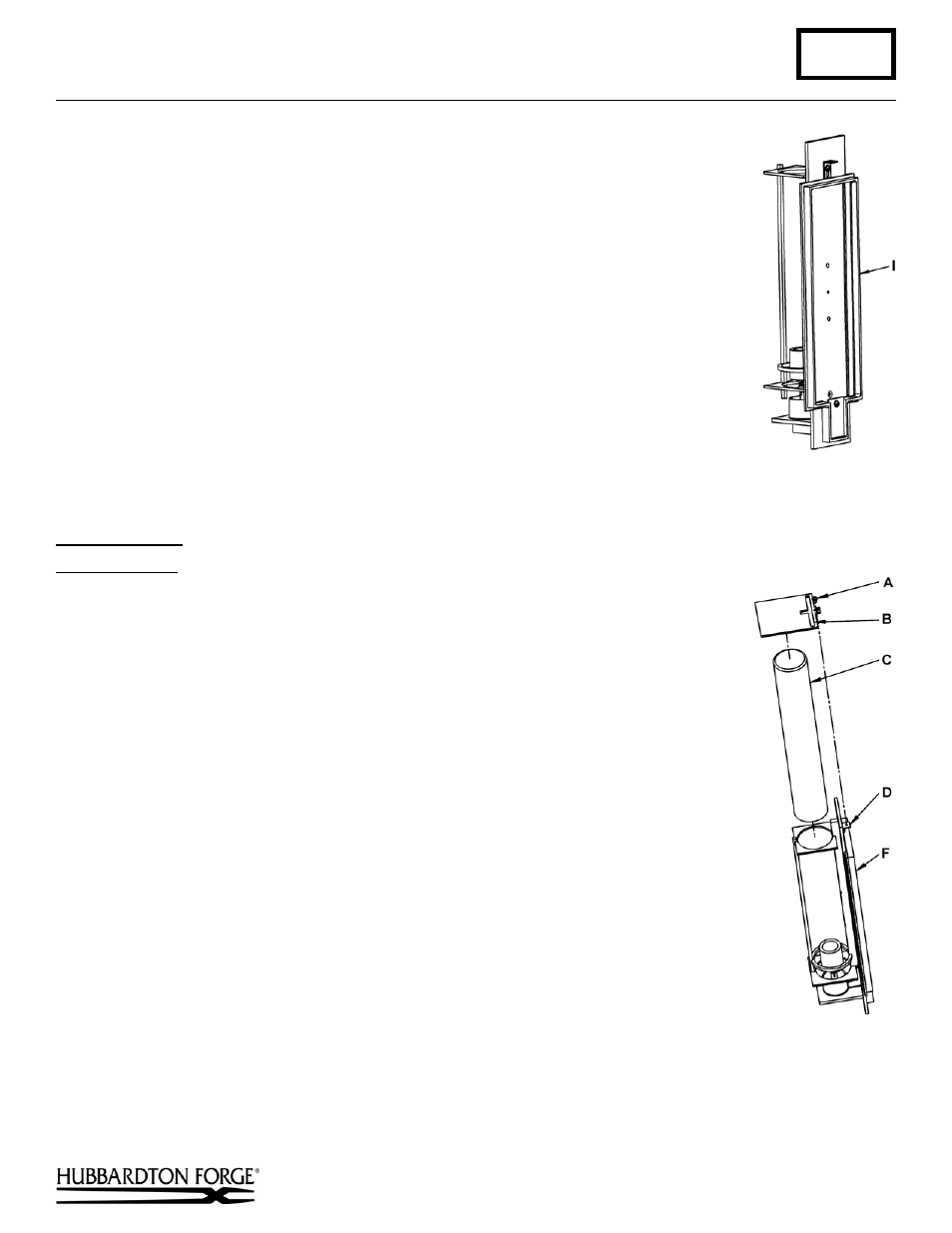

(Figure 3)
