Installation Instructions
B266
Port Outdoor Sconces 30-6565 & 30-6567 Page 2 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 27225
6. Carefully tuck all wires behind the fixture assembly and inside the
wall mount bracket and place the fixture firmly onto bracket (B) and
fasten with #8 black screw (E) and rubber washer (F) on top.
7. Install 2 nd black screw (E) in bottom of fixture attaching to wall
mounting bracket (B).

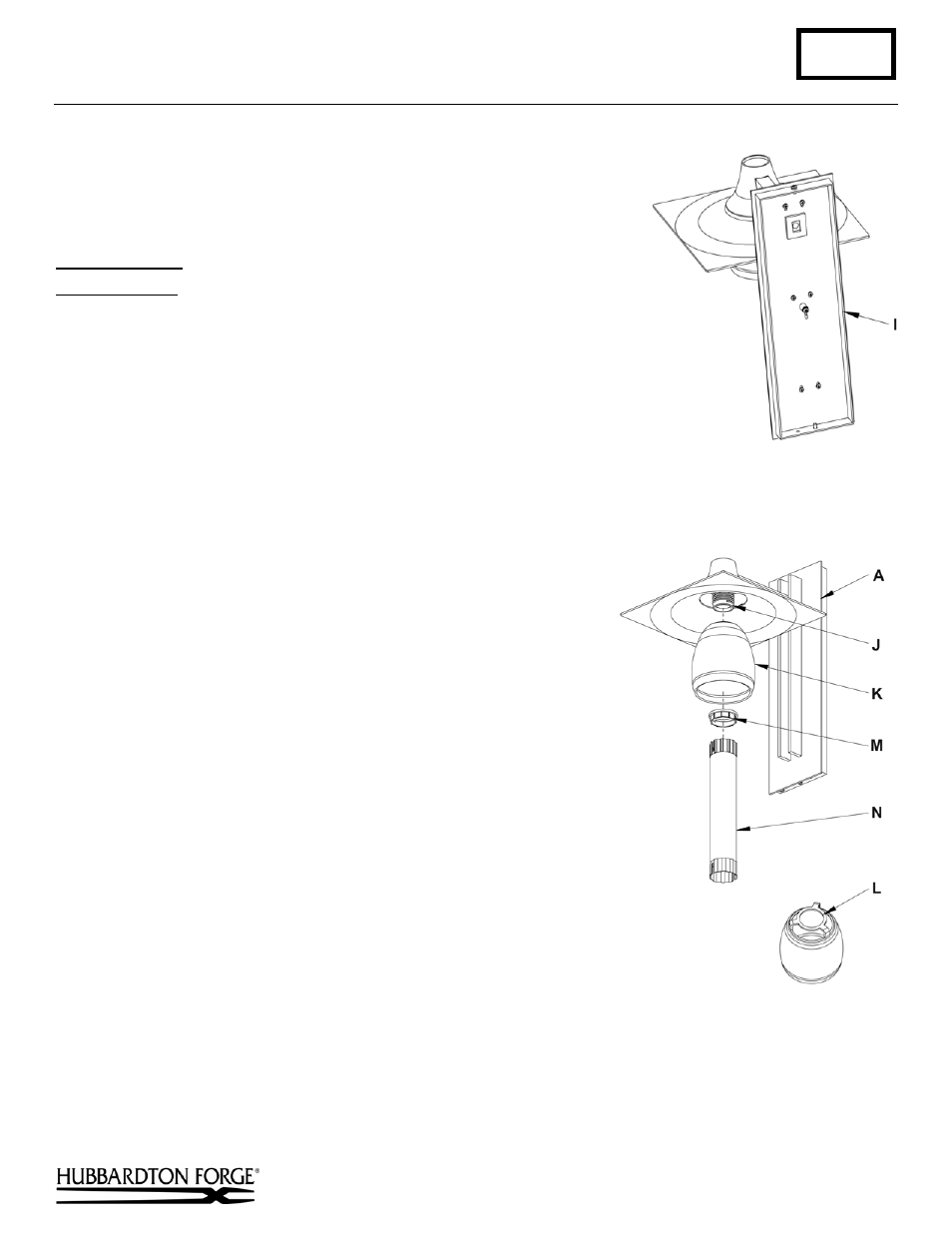

To Install Glass (Figure 3)
Component Parts
A Fixture Assembly
J Socket
K Glass for 30-6565,
L Solid Diffuser for 30-6567
M Retaining
Ring
N Retaining Ring Tool
1. Remove retaining ring (M) from socket (J). Retaining ring ships
installed.
2. Slip glass (K) or solid diffuser (L) depending on which product
was purchased over socket (J).
3. Thread retaining ring (M) onto socket (J) using retaining ring
tool (N) provided until snug. Do not over tighten.
4. Install bulb (not included).
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased
this product. We hope you enjoy your fixture!
*
Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
(Figure 3)
(Figure 2)
