Installation Instructions

To Install Fixture to Wall

(Figure 3)

(Continued)

4. Apply a generous bead of a suitable caulking material to

caulking lip (H) on the fixture (Figure 2).

5. Carefully tuck all wires behind the fixture, place fixture firmly

against the wall and fasten with 8-32 screws (E). To ensure

a water tight seal, apply a thin bead of caulking around en

tire perimeter of the fixture.

To Install Glass

(Figure 3)

Component Parts

A Fixture

I Glass Top

J Thumb Screw (2)

K Glass

1. Install light bulb. (Fluorescent fixtures are supplied with

bulb.)

2. Slide glass (K) into fixture (A).

3. Remove the two thumb screws (J) from fixture (A).

4. Attach glass top (I) onto fixture (A) with two thumb screws

(J). Do not tighten thumb screws at this point.

5. Adjust glass top (I) until it rests on top of glass (K).

6. Tighten by hand thumb screws (J) until snug against glass

top (I). (Be careful not to over tighten)

7. Restore electricity at the main breaker.

B158

For Outdoor Sconces 305995 & 305995F

Page 2 of 2

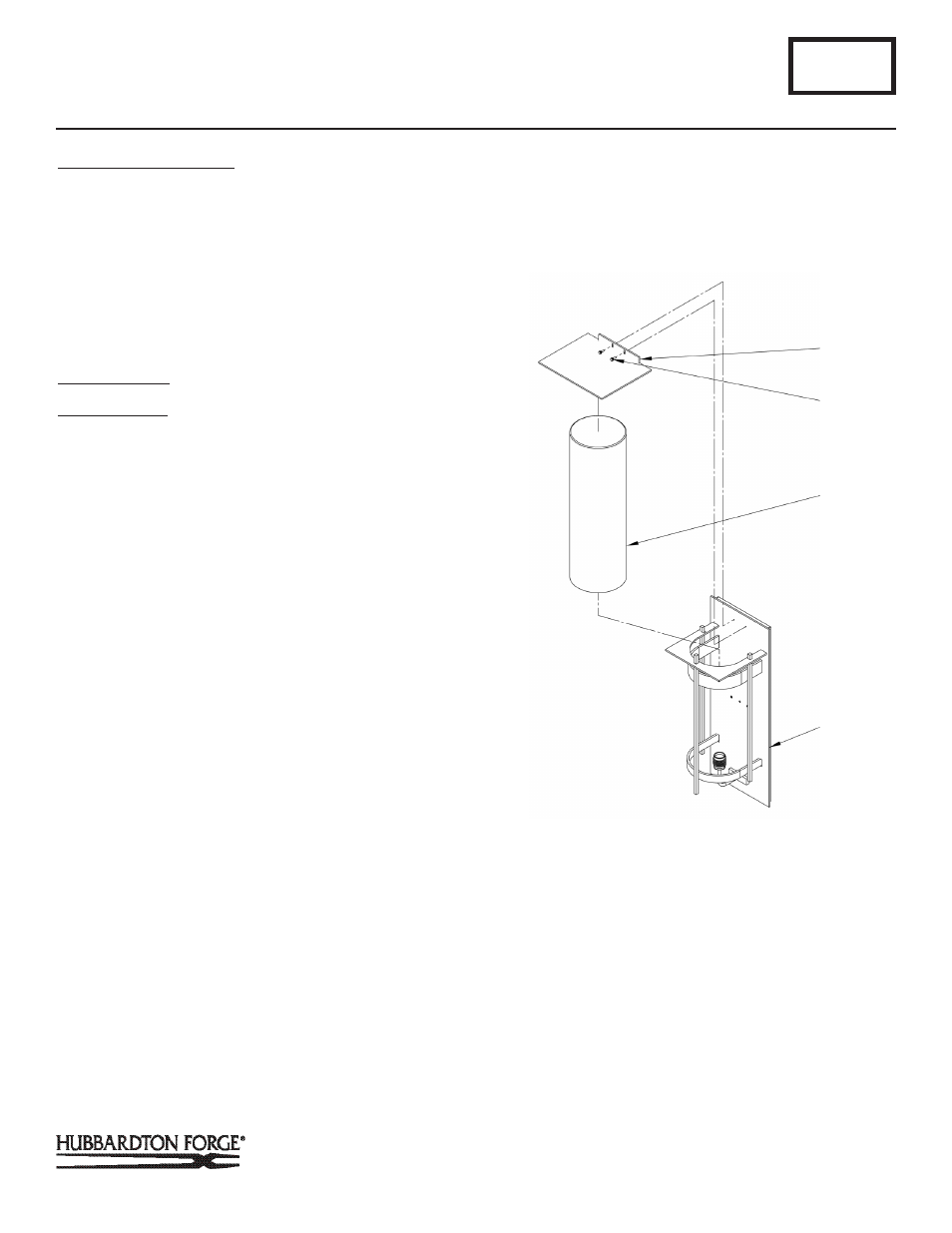

(Figure 3)
