Installation Instructions
B162
For Outdoor Wall sconce 30-5610 & 30-5610F Page 2 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 22419

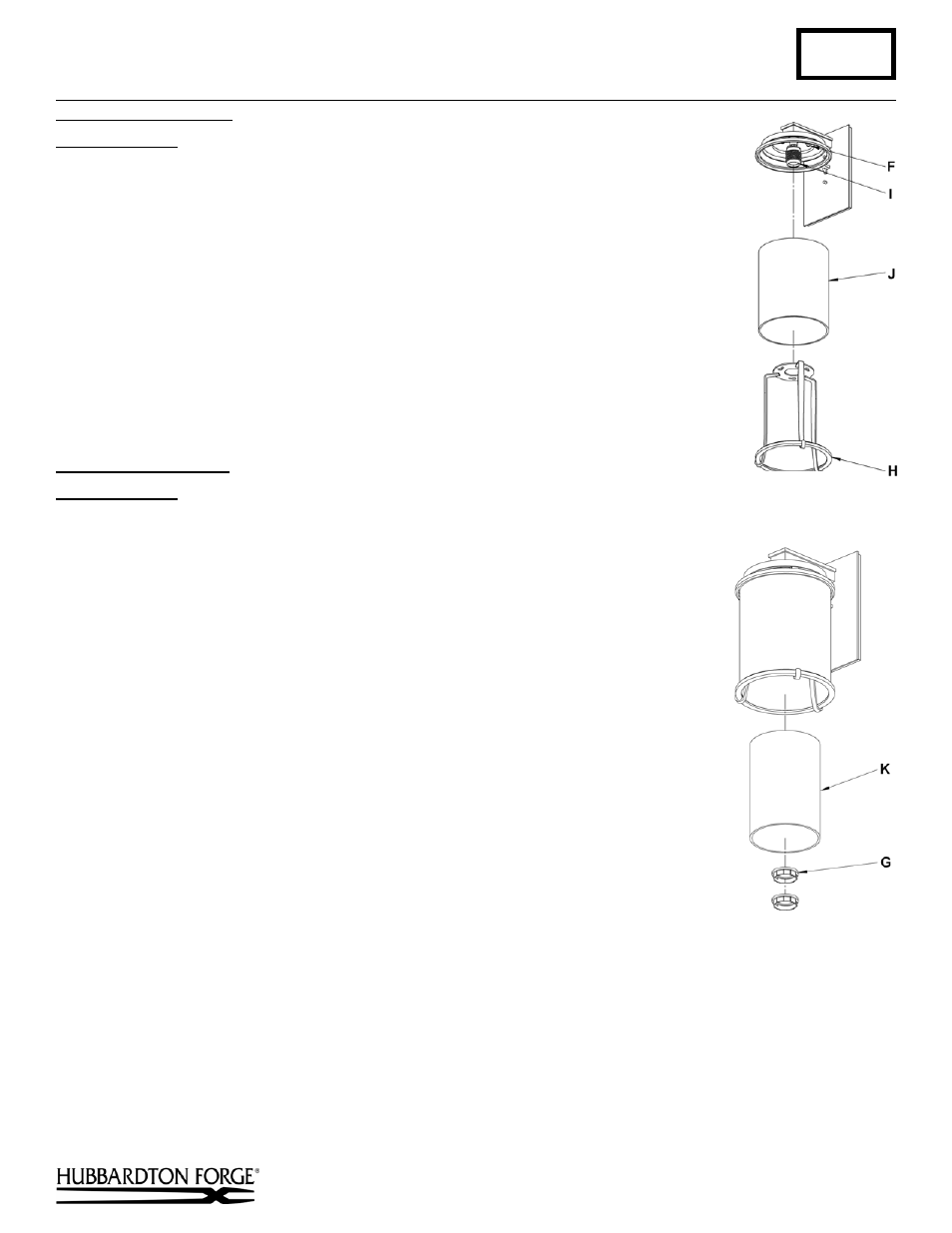

To Install Outer Glass (Figure 4)
Component Parts
F Screws (3)
H Spider Assembly
I Socket
J Outer
Glass (larger diameter glass)
1. Slip outer glass (J) into spider assembly (H).
2. Raise spider assembly (H) with outer glass (J) installed and slip over socket (I)
aligning holes in the top of the spider assembly (H) so keyed ring goes over
screws (F).
3. Turn spider assembly (H) counter clockwise until it stops. Tighten three screws
(F) until snug against the spider assembly. Be careful not to over tighten.
To Install Inner Glass (Figures 5)
Component Parts
G Retaining Ring (“F” version only 1)
K Inner Glass
1. Slip inner glass (K) over socket.
2. Thread the first retaining ring (G) on to socket until it is against top of the
inner glass (K).
3. Thread the second retaining ring (G) onto socket until it is snug against the
first retaining ring. Do not over tighten. Disregard this step for the “F”
version.
4. Install light bulb. “F” version bulb is included.
5. Restore electricity at main breaker.
If you need further assistance, or find that you are missing any parts, please contact
the dealer from which you purchased this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
(Figure 5)
(Figure 4)
