Installation Instructions
B179
For Beacon Hall Outdoor Wall Sconce 30-4820 & 30-4820F Page 2 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 22746
To Install Glass (Figures 3 & 4)
Component Parts
F Inner Glass
G Outer Glass
H Glass Cage
I Retaining Ring
K Socket
N Top
Hat
P Brass Screw (4)
Q Top
Cover
R Finial
S Cover
Plate
1. Disassemble upper assembly by unthreading finial (R) and removing the four flat head screws (P) under top cover
(Q) (Figure 3). Set all pieces aside for later use.
2. Remove retaining ring (I) from socket (K). Retaining Rings are shipped installed.
3. Slip outer glass (G) over socket (K).
4. Slip glass cage (H) over socket (K).
5. Thread retaining ring (I) onto socket (K). Do not over tighten.
6. Install bulb. (Fluorescent versions bulb is included.)
7. Slip inner glass (F) over socket (K) and bulb.
(continued)

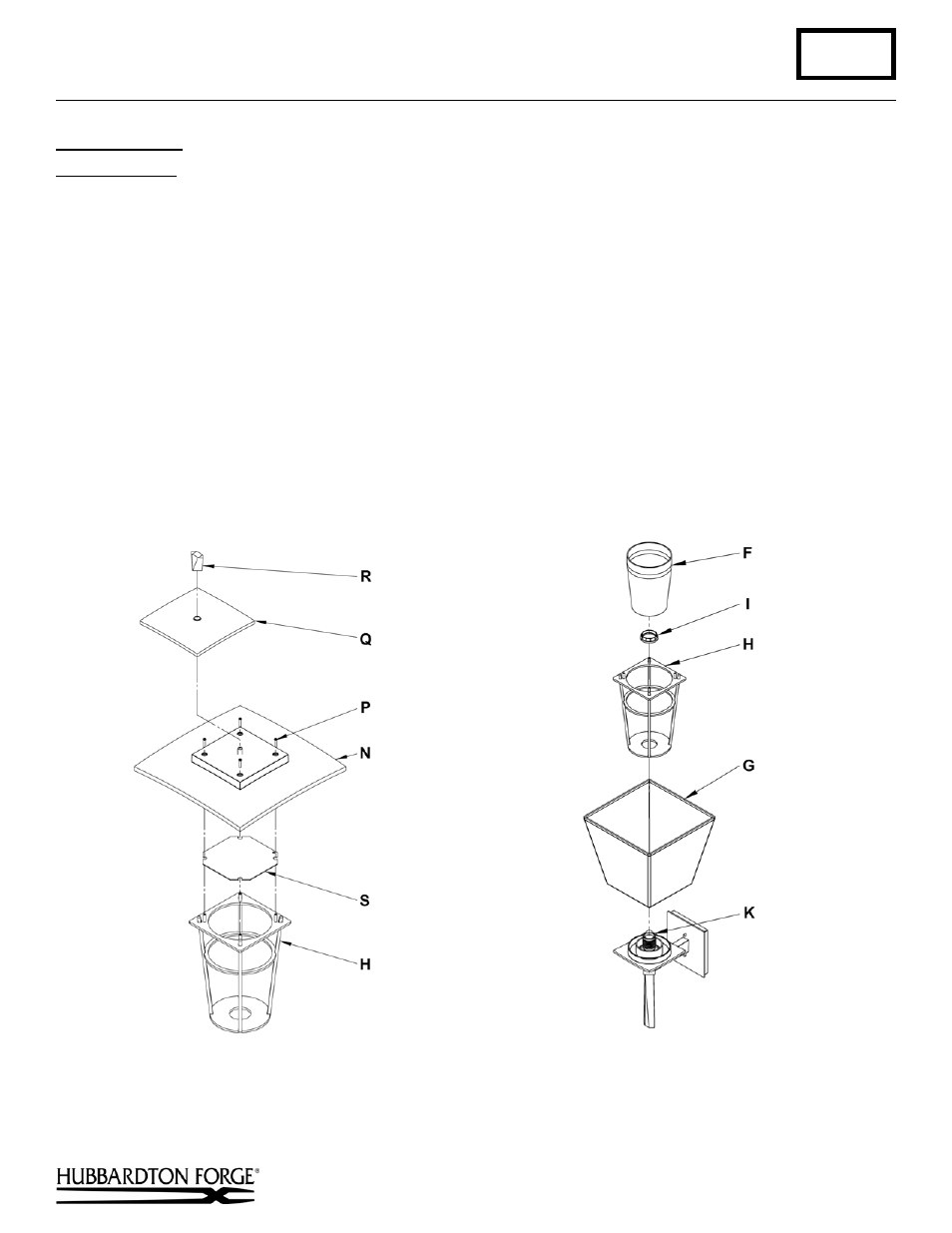

(Figure 3) (Figure 4)
