Installation Instructions
B207
For Twilight Outdoor Sconce 30-4901
Page 1 of 2
Hand-Forged,
Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735
24452
Please Note: This fixture is designed to be mounted on a standard wall surface and may not be suitable for all
applications. If installing in a non-wood frame application, we recommend consulting a qualified builder or electrician.
After installation extra hardware and accessories are possible; our kits are used on multiple products and options.

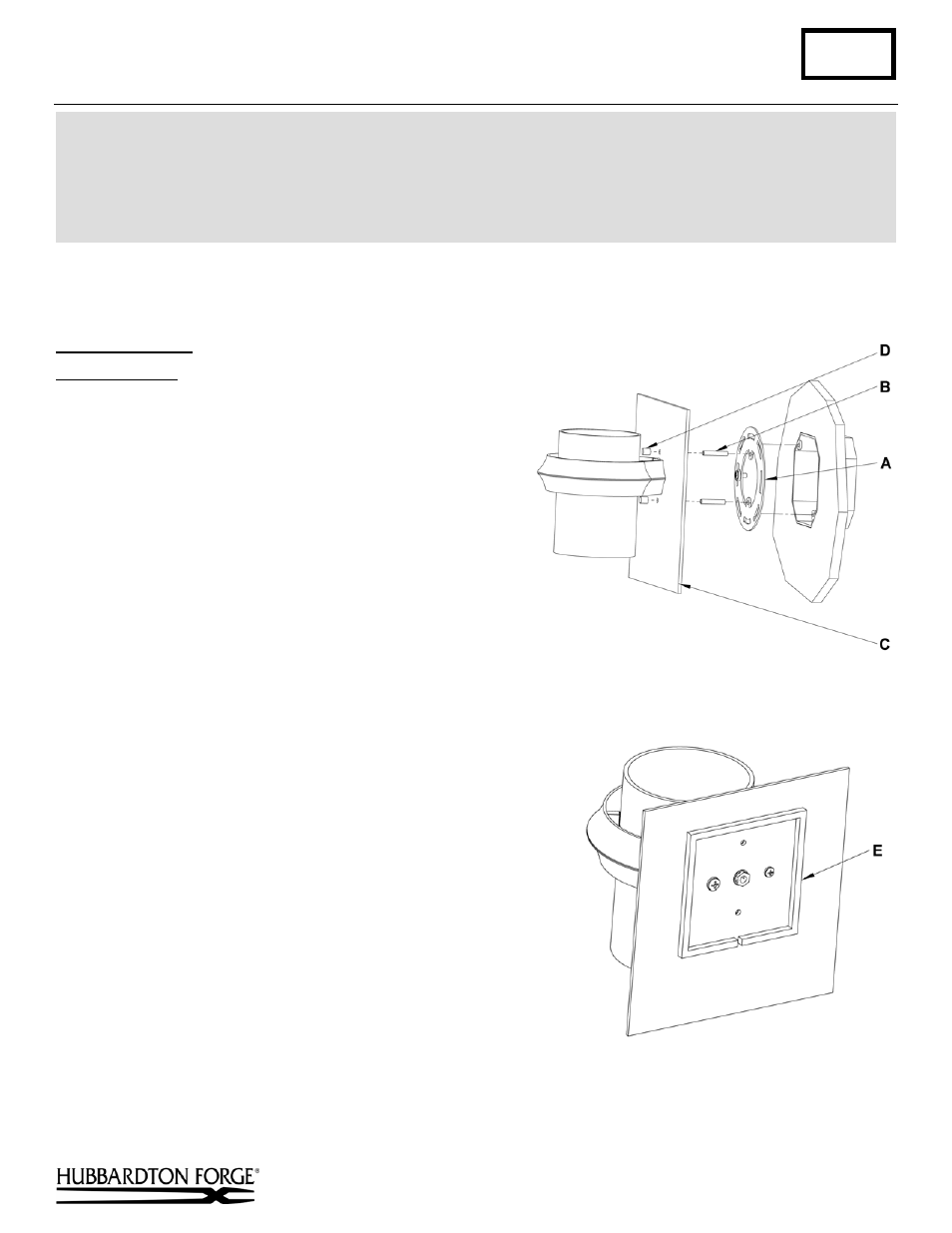

To Install Fixture
(Figures 1 & 2)
Component Parts
A Cross
Bar
B Threaded Studs (2)
C Fixture
D Barrel Knobs (2)
E Caulking
Lip
Caution: Be sure power is off at the main breaker box prior
to installation.
1. Carefully unpack the fixture from the carton.
2. Using two machine screws (not provided) attach cross
bar (A) to the electric box using inside oval holes to
orient fixture.
Note: A new electric box comes with
screws. When replacing a fixture, retain the screws for
use with the new fixture.
3. Start threaded studs (B) into appropriate holes in
crossbar (A).
4. Using suitable wire connectors (not provided), connect the
fixture wires to the supply wires, (white to white, black to
black, bare copper or green to bare copper or green). If the
fixture is wired with twin lead lamp cord, connect the
ribbed side to white, and the smooth side to black.
Caution: Make sure wire connectors are twisted on
securely and no bare wires are exposed.
5. Apply a generous bead of a suitable caulking material to
caulking lip (E) on the fixture.
6. Carefully tuck all wires behind the fixture. Place fixture
(C) over threaded studs (B) and tighten firmly to mounting
surface using barrel knobs (D).
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
(Figure 2)
(Figure 1)
