Installation Instructions
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased this product.
We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
Please Note: This fixture is designed to be mounted on a standard wall
surface and may not be suitable for all applications. Sconces are to be
mounted 4 feet above ground. If installing in a non-wood frame applica-
tion, we recommend consulting a qualified builder or electrician.

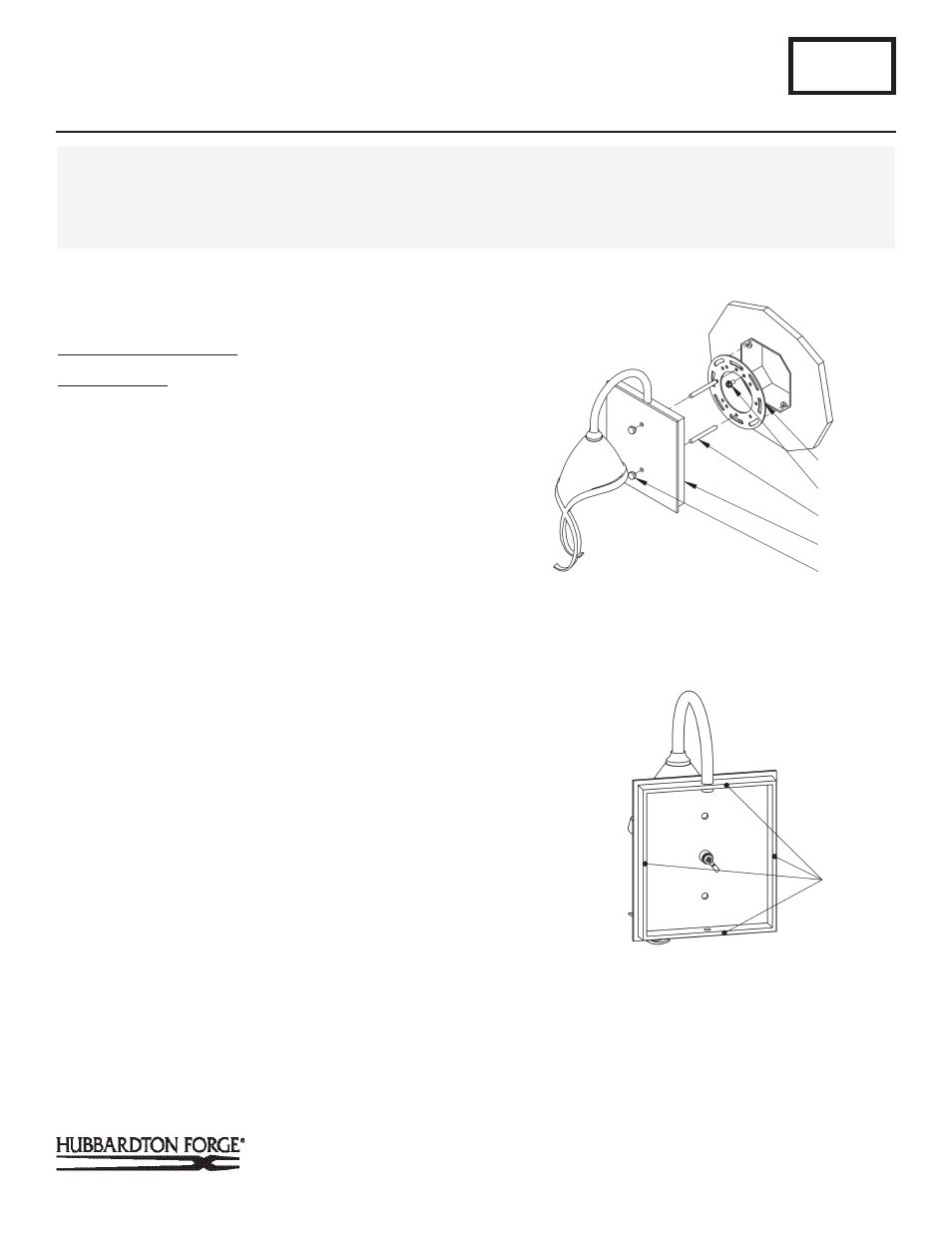

To Mount Fixture to Wall
(Figures 1 & 2)
Component Parts
A Crossbar
B Threaded Stud (2)
C Knurled Ball (2)
D Fixture Assembly
E Ground Screw
F Caulking Lip
CAUTION: BE SURE POWER IS OFF AT THE MAIN BREAKER BOX
PRIOR TO INSTALLATION.
1. Carefully unpack the fixture from the carton.
2. Using two machine screws (not provided), fasten the cross
bar (A) to the electric box making sure that fixture mounting
holes are level.
Note: A new electric box comes with screws. When replacing a
fixture, retain the existing screws for use with the new fixture.
3. Thread studs (B) into the appropriate holes in the crossbar
(A). Adjust the studs to proper length to ensure the
fixture will fit snugly to the wall.
4. Hold the fixture (D) close to the wall and using suitable wire
connectors, not provided, connect fixture wires to
supply (white to white and black to black). Run a pigtail lead
from crossbar ground screw (E) to the junction box
and connect all ground wires (bare copper or green to bare
copper or green).
CAUTION: MAKE SURE WIRE CONNECTORS ARE TWISTED ON SE-
CURELY, AND NO BARE WIRE IS EXPOSED.
5. Apply a generous bead of a suitable caulking material (not
provided) to calking lip (F) on the fixture. Caulk should be
applied around the entire perimeter of the fixture. (Figure 2).
B314
Flora Outdoor Sconces 303073 & 303075
Page 1 of 2
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH AND
PROPERTY DAMAGE. We recommend installation by a licensed electrician. This product must be installed in accordance with
applicable installation code(s), by a person familiar with the construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
(Continued)
(Figure 1)
C
B
E
D
A
(Figure 2)
F
