Assembly & Installation Instructions
Install the Fixture (Figure 1)
(Continued)
8. Refer to following instructions to install bulb and diffuser.

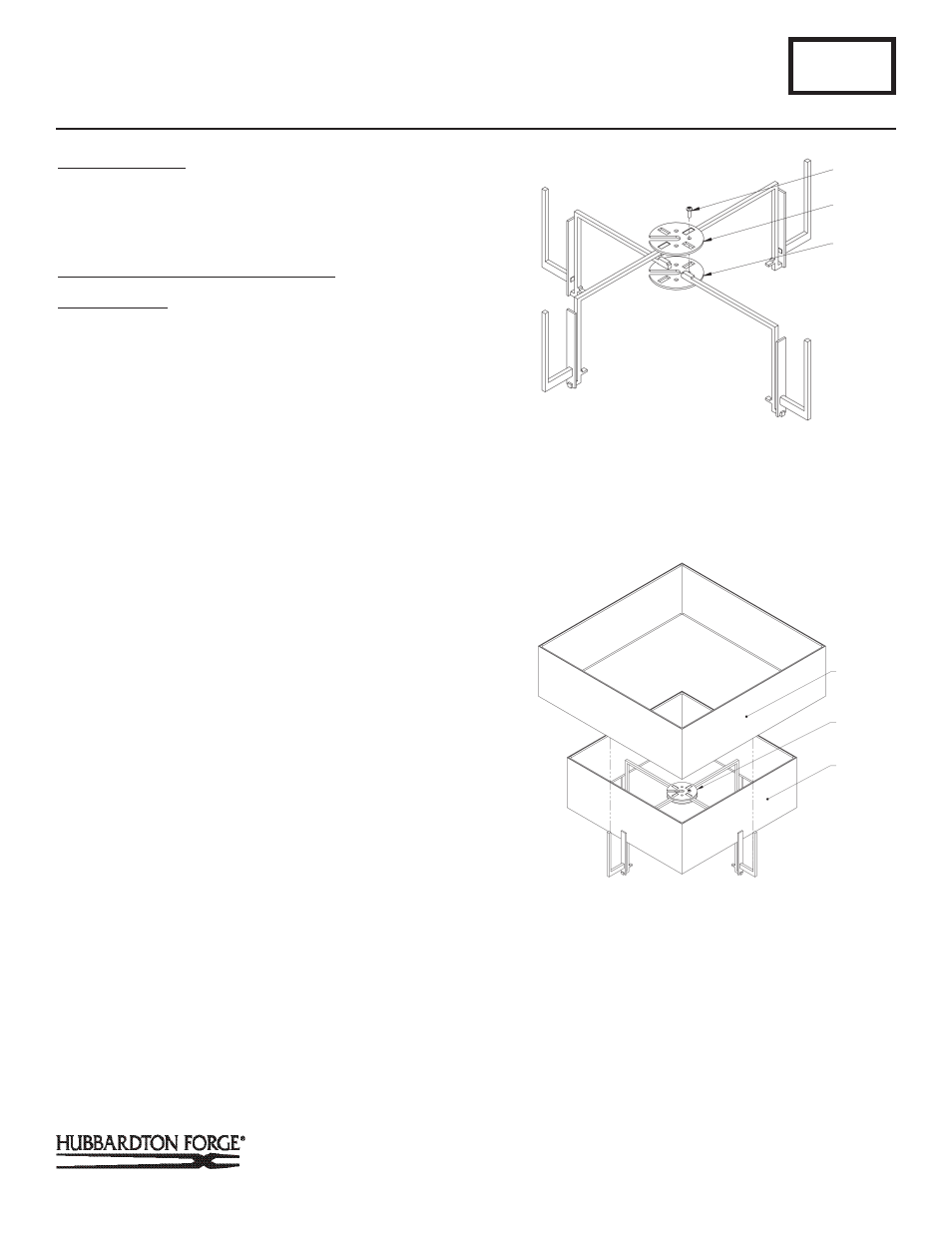

To Assemble Bottom & Install Shades (Figures 2, 3 & 4)
Component Parts
L #8-32 Screw P Internal Shade
M Top Shade Bracket Q Thumb Screw
N Bottom Shade Bracket R Socket Washer
O External Shade
1. Remove #8-32 screw (L) from bracket (N) and set aside.
2. Orient top shade bracket (M) and bottom shade bracket (N)
such that the slots are aligned as seen in Figure 2.
3. Hold these brackets together and insert #8-32 screw (L) and
tighten such that two brackets are fastened together.
4. Slide the internal shade (P) into groove behind forged plates
as seen in Figure 3 followed by external shade (O).
5. Raise shade bracket assembly with shades installed up to
the installed fixture.
6. Align the slot in shade brackets (M & N) with the fixture pipe
as seen in Figure 4.
7. Slide the shade brackets (M & N) around fixture pipe (G) and
lower until it rests upon the socket washer (R).
8. Rotate until two holes in shade brackets (M & N) alight with
holes in the socket or socket washer (R).
9. Slide thumb screws (Q) through two holes in shade brackets
(M & N) and thread into socket or socket washer (R) until
tight.
10. Refer to following instructions to install bulb and shade
assembly.
