Installation Instructions
A286
For Semi-Flush 12-6615 & 12-6620 Page 2 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 26769
To Assembly Shade & Cage (Figures 2 & 3)
Component Parts
F Shade Panel with Hole
G Shade Panel without Hole
H Shade
Assembly
I Pan head screws (2)
J Cage Plate (2)
K Cage
Assembly
1. Press shades panel with hole (F) and shade panel without
hole (G) together to make one assembly (H) (Figure 2).
2. Remove pan head screws (I) from cage assembly (K) and
retain for later use. (The cage ships assembled.)
3. Slide shade assembly (H) into cage assembly (K).
4. To complete cage assembly use pan head screw (I) to attach
cage plate (J) to cage assembly (K). Repeat for second cage
plate (J) (Figure 3).
To Install Shade/Cage Assembly (Figure 4)
Component Parts
A Canopy
K Cage
Assembly
L Tabs on Canopy (4)
1. Install light bulbs (not Included).
2. Align cage assembly (K) to slip past canopy (A). Slip
cage assembly (K) up over tabs on canopy (L), rotate
cage assembly (K) and lower into tabs on canopy (L).
(Be sure cage assembly is seated in all (4) tabs.)
3. Restore electricity at main breaker.
If you need further assistance, or find that you are missing any
parts, please contact the dealer from which you purchased this
product. We hope you enjoy your fixture!
*
Hubbardton Forge will not be liable for injury or damage caused
by improper installation, lamping or use of this fixture.

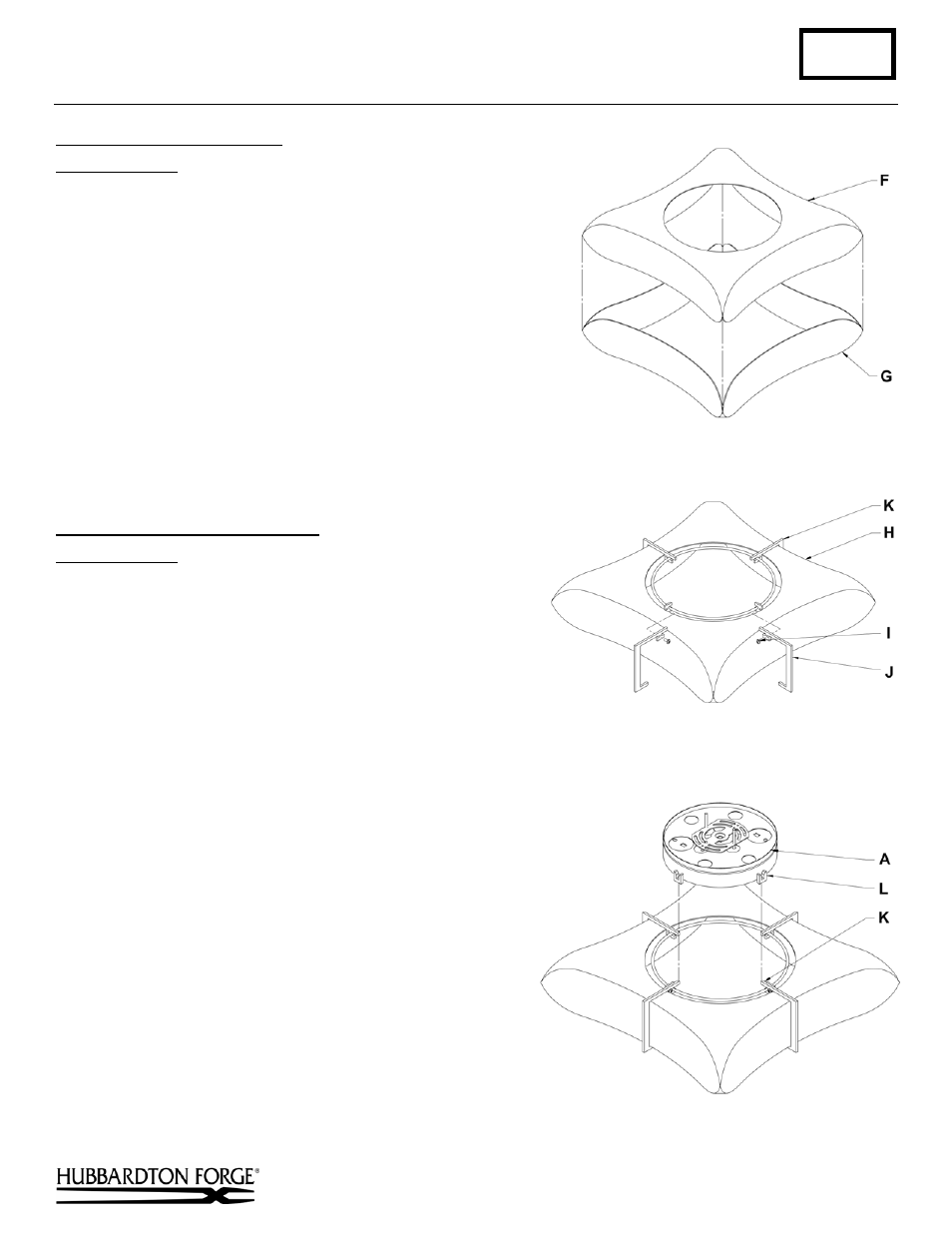

(Figure 2)
