Installation Instructions
A232
For Axis Semi-Flush 12-6401 Page 2 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 24160

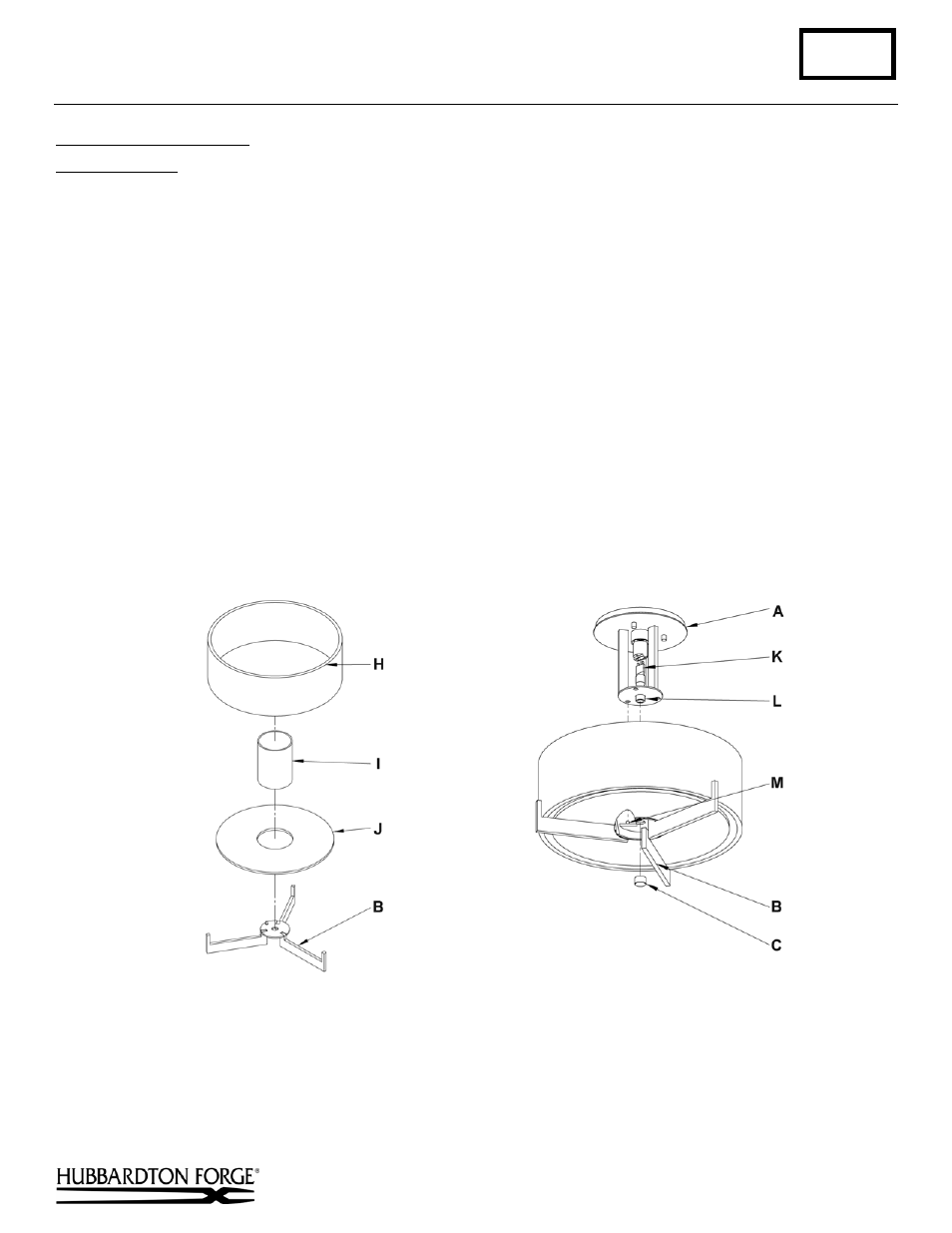

To Complete Assembly (Figures 3 & 4)
Component Parts
A Canopy
B Lower
Assembly
C Screw Cap
H Outer Glass
I Inner Glass
J Diffuser
K Bulb
(included)
L Threaded Stud
M Locating Pin
1. Install diffuser (J) on lower assembly (B) so it rests on the three legs.
2. Install inner glass (I) and outer glass (H) onto lower assembly (B).
3. Install light bulb (K). Be careful not to touch bulb with bare hands; oil from the hands will dramatically reduce
bulb life.
4. Raise lower assembly (B) with glass installed aligning locating pin aligns with one of the three holes in the
canopy (A).
5. Install screw cap (C) and tighten.
6. Restore electricity at main breaker.
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased
this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
