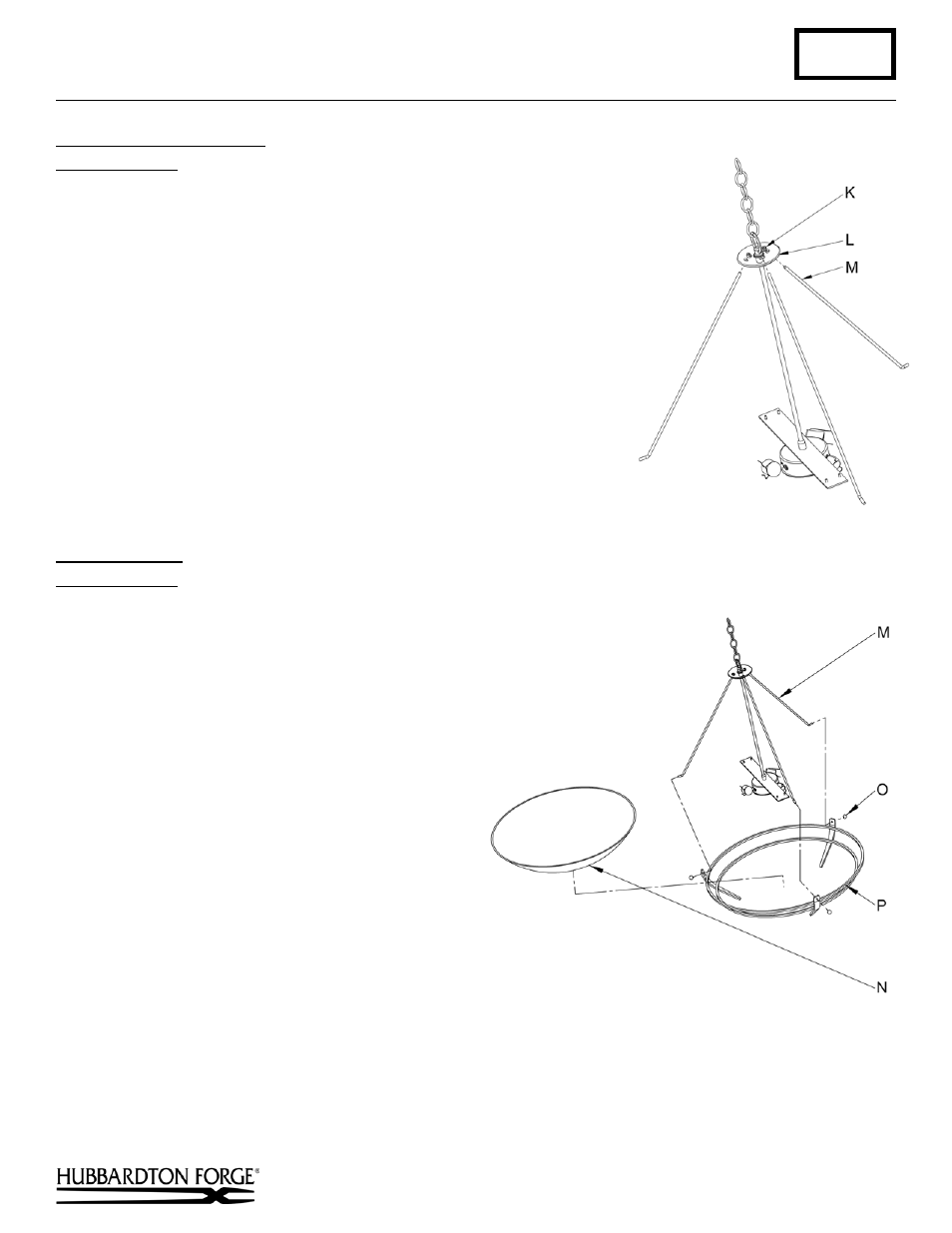

Install the Threaded Rods (Figure 3)
Component Parts
K Hex Nut (3)
L
Bob
M Threaded Rod (3)
1. Slip straight end of threaded rod (M) through holes in bob (L).
2. Thread hex nut (K) onto threaded rod (M) until bottomed out and snug.
3. Lower threaded rod (M) until hex nut (K) sits flat inside bob (L).
To Install Glass (Figure 4)
Component Parts
M Threaded Rod (3)
N Glass
O Threaded Ball (3)
P Ring Assembly
1. Insert the ends of two of the threaded rods (M)
through two of the holes in the ring assembly (P).
Secure with threaded balls (O).
2. Place glass (N) in ring assembly. Insert remaining
support rod, securing with remaining threaded ball.
3. Level glass as needed.
4. Install light bulbs prior to installing diffuser glass.
(continued)
(Figure 3)
(Figure 4)
