Assembly Instructions
C35
Mobius Floor Lamp 23-4505 & 23-4505C Page 3 of 7
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 24809 Rev C
Install Shade (Figure 7)
Component Parts
P Retaining Ring
Q Socket
R Shade Assembly
1. Refer to instructions beginning on next page to
assemble shade.
2. Remove retaining ring (P) from socket (Q).
Retaining ring is shipped installed.
3. Slip shade assembly (R) over socket (Q).
4. Thread retaining ring (P) onto socket (Q).
5. Install light bulb. (“C” version bulb is included)
To Raise and Spin Fixture
(Figure 8)
Component Parts
I Upper Assembly
J Base Assembly
S Thumb Screw
1. Loosen thumb screw (S) and holding
onto the base assembly (J) raise the
upper assembly to desired height.
The upper assembly will also spin at
this point. Note: There is an internal
stop inside the base assembly to
prevent the upper assembly from
turning repeatedly.
2. Once height and location is
determined tighten thumb screw (S)
and set screw below it.
(continued)

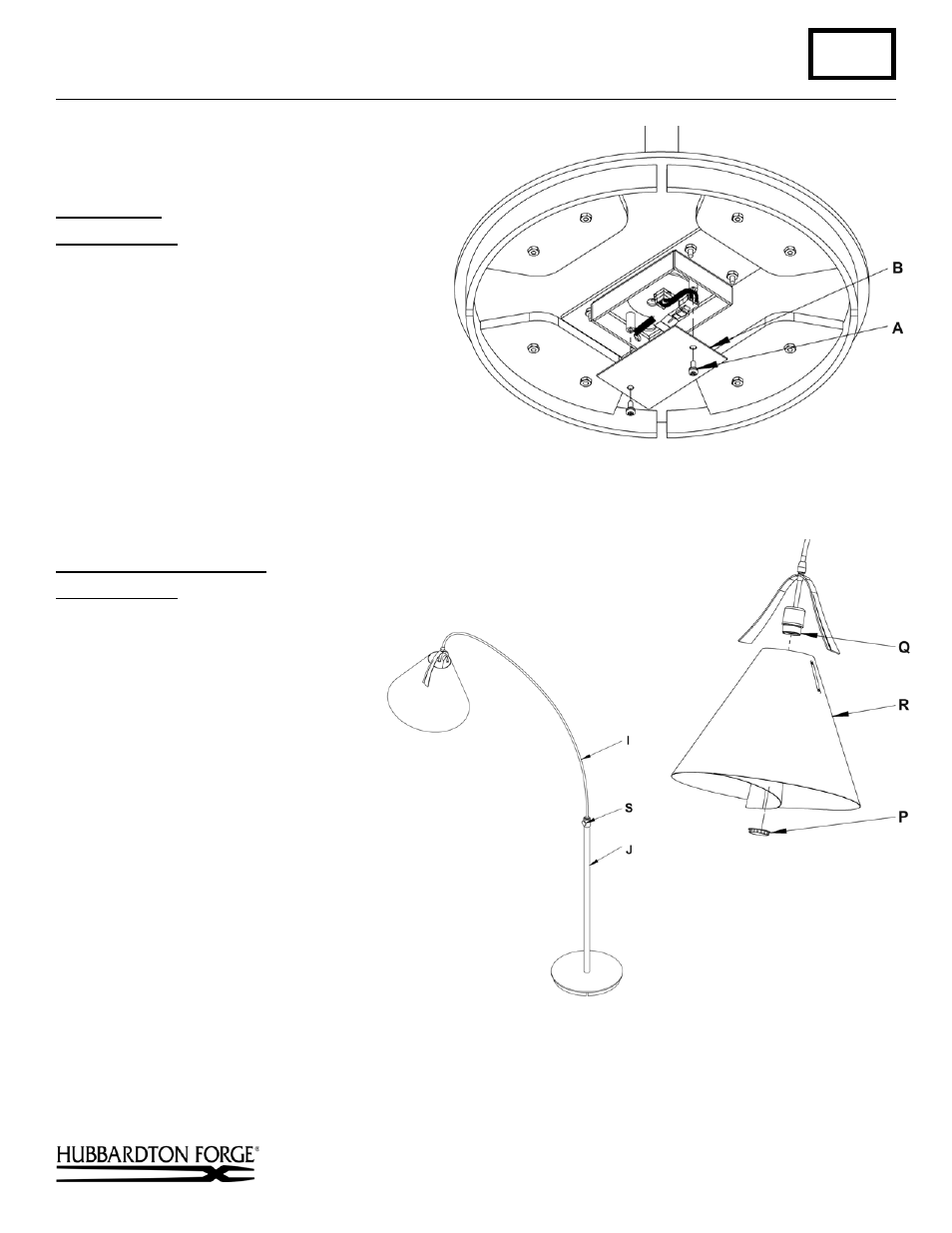

(Figure 6)
(Figure 7)
(Figure 8)
