Assembly & Installation Instructions
A180
For Semi-Flush Vortis Fixtures 12-3250 & 12-3252 Page 2 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 21367

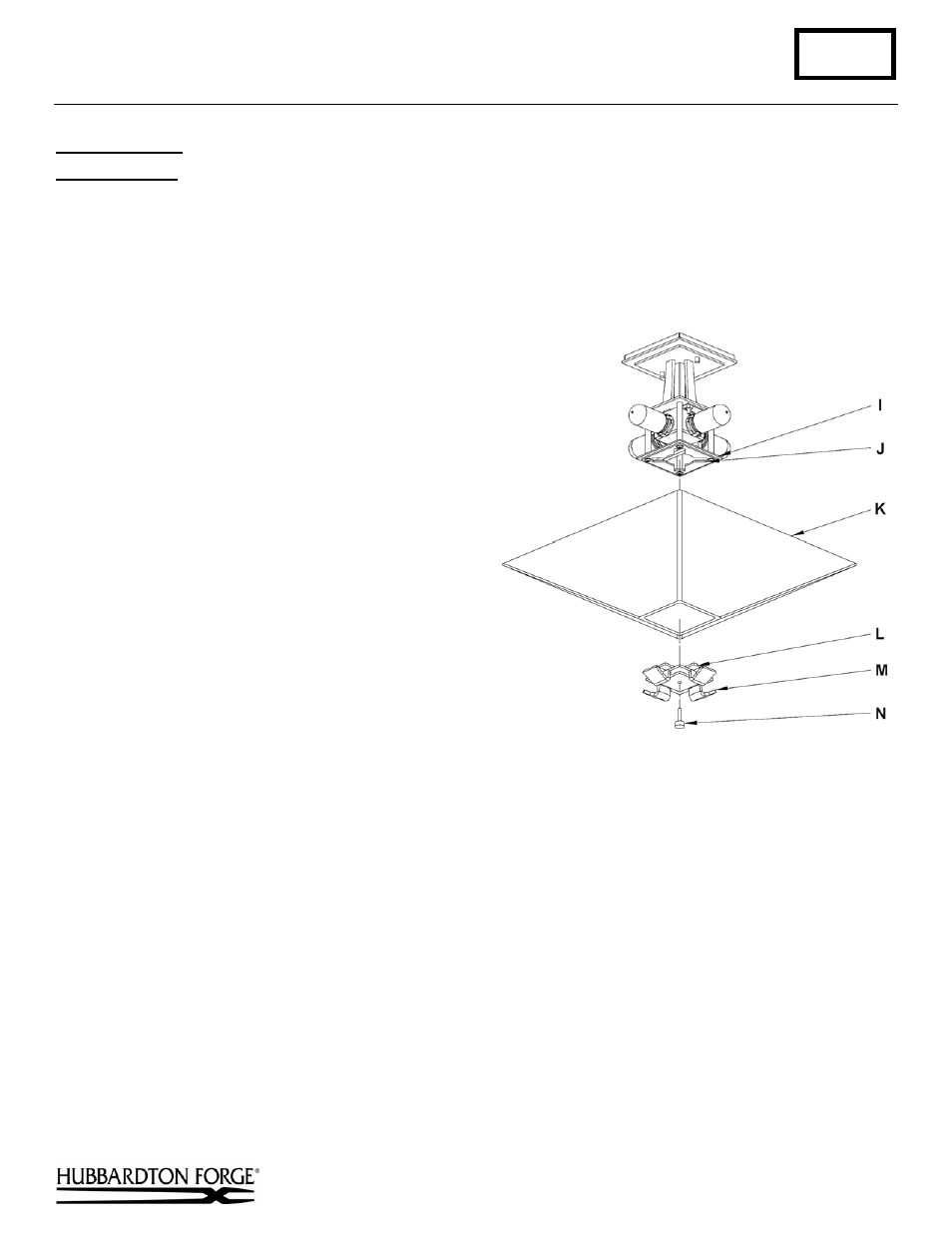

To Install Glass
(Figure 3)
Component Parts
I Fixture Assembly
J Fixture slot
K Glass
L Retainer
Tab
M Glass Retainer
N Tensioning Screw
1. Remove glass retainer (M) from bottom of
fixture by removing tensioning screw (N) and
turning the glass retainer 45 degrees to allow it
to drop out of the bottom of the fixture.
2. Place glass (K) into glass retainer (M).
3. Lift glass (K) and glass retainer (M) up to
fixture assembly (I) aligning retainer tabs (L)
with fixture slots (J).
4. Lift so retainer tab (L) slips completely through
fixture slot (J).
5. Turn glass (K) and glass retainer (M)
approximately 45 degrees so glass retainer stays
in place.
6. Turn tensioning screw (N) to prevent glass
retainer (M) to lift and possibly drop out of
fixture assembly (I). Turn until snug and glass
retainer will not spin freely.
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased
this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
(Figure 3)
