B235, Installation instructions

Installation Instructions
B235
Mobius Sconce 28-9450
Page 1 of 6
Hand-Forged,
Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735
26937 Rev A
Please Note: This fixture is designed to be mounted on a standard wall surface and may not be suitable for all
applications. If installing in a non-wood frame application, we recommend consulting a qualified builder or electrician.
To Install to Wall
Component Parts
A Fixture
Pipe
B Knurled
Screw
C Locking
Collar
D Mounting Arm (2)
E Set Screw (2)
F Wall Mount Plate (2)
G #10 Screws (2)
H Cord
1. Carefully unpack the fixture from the carton.
2. Slide locking collar (C), O-ring, and mounting
arms (D) onto the fixture pipe (A).
Note: O-ring can easily slide though mounting
arm (D) prior to installation. O-ring might
need to be adjusted to proper location;
between locking collar (C) and mounting arm
(D).
3. Remove wall mount plate (F) from the
mounting arm (D) by loosening set screw (E)
and sliding wall mount plate (F) from
mounting arm (D). Do this for both arms.
4. Hold the fixture in position level and plumb
against the wall and mark the location of the
mounting holes. Set fixture aside.
5. Attach wall mount plates (F) to the wall using
silver #10 screws (G). Be careful not to over
tighten the screws.
6. Slide the mounting arms (D) onto the wall
mount plates (F) and secure with set
screws (E).
7. Tighten knurled head screw (B) in locking
collar (C) to secure the fixture pipe (A).
8. Plug the fixture’s cord (H) into the supplied
touch dimmer module, and plug the touch
dimmer module into the wall.
9. Use steps below to install bulb and shade.
(continued)
CAUTION: FAILURE TO INSTALL THIS PRODUCT PROPERLY MAY RESULT IN PERSONAL INJURY
OR PROPERTY DAMAGE. We recommend installation by a qualified individual trained in the building trade.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*

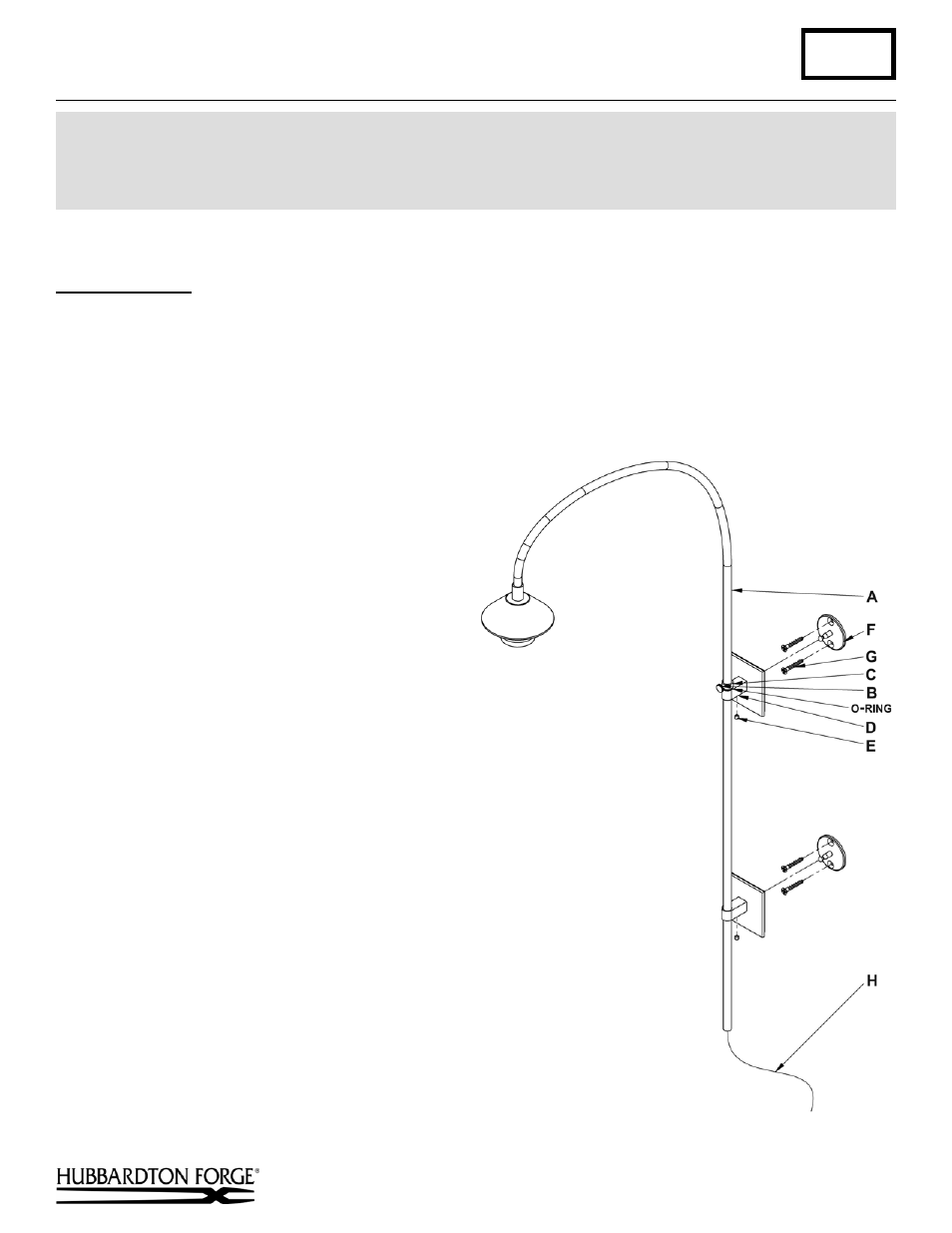

(Figure 1)
