Installation & Assembly Instructions
B108
Ono Sconce 21-7730F Page 2of 2
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 19750 Rev B
To Install Glass (Figures 2 & 3)
Component Parts
H Fixture Front
I Machine Screw (2)
J Glass
1. Slide glass (J) in opening on front side of fixture front (H). Adjust until sides
are equally spaced with fixture front.
Note: For glass orientation see Figure 3.
2. Install 2 machine screws (I) in locations provided on fixture front (H). Tighten
screws against glass being careful not to over tighten.
To Install Fixture Front (Figure 4)
Component Parts
A Fixture
H Fixture
Front
K Machine Screw (2)
1. Install fixture front (H) on fixture (A).
2. Install 2 machine screws (K) and tighten.
If you need further assistance, or find that you are missing any parts, please
contact the dealer from which you purchased this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.

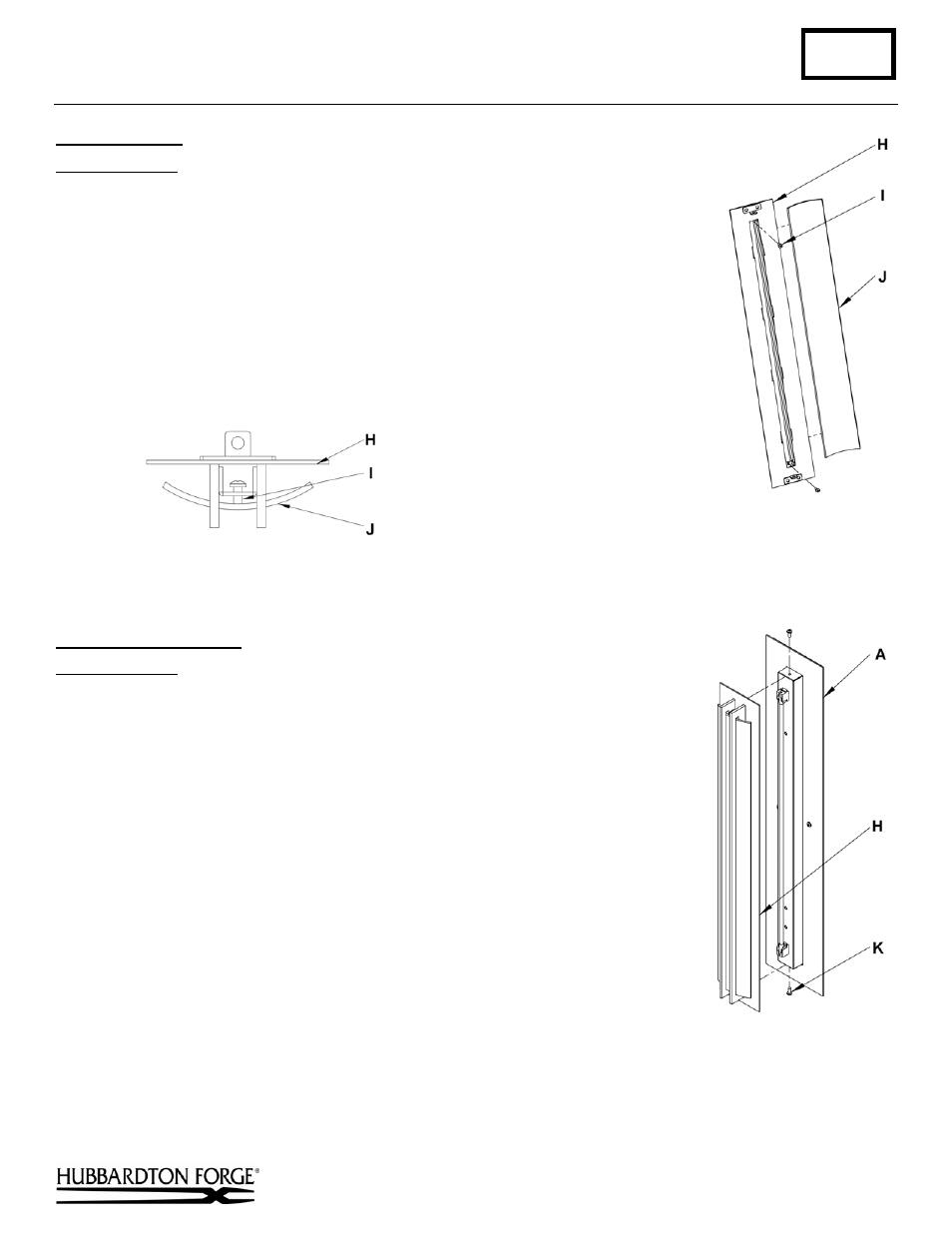

(Figure 2)
