Installation Instructions
B130
For Gallery Sconce 21-7653F Page 2 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 21124

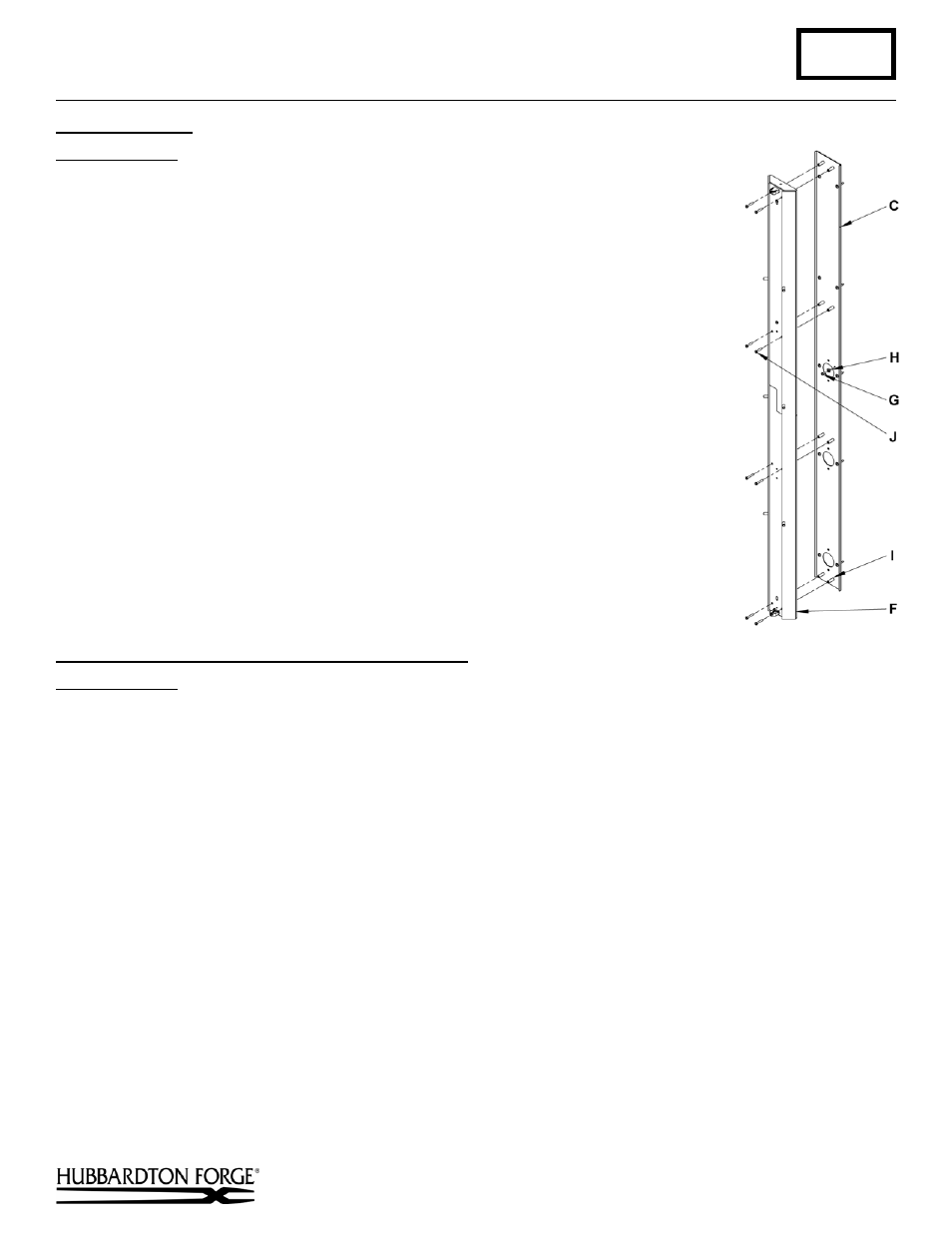

To Install Fixture (Figure 3)
Component Parts
C Wall Mounting Bracket
F Fixture Can Assembly
G Ground
Screw
H Cupped Washer
I Threaded Standoff (8)
J #8 Screws (8)
1. Hold the fixture can assembly (F) close to the wall mounting bracket (C) and using
suitable wire connectors (not provided), connect fixture wires to supply wires (white
to white, black to black, and bare copper or green to bare copper or green). Ground
the mounting bracket using the ground screw (G) mounted to the wall mounting
bracket (C).
Caution: Make sure wire connectors are twisted on securely, and no bare wires are
exposed.
2. Carefully tuck all wires behind the fixture can assembly (F) and inside the wall
mounting bracket (C) and place the fixture over the bracket so the holes in the top
and bottom match the threaded standoffs (I) protruding from the wall mounting
bracket (C). Secure the fixture by threading the #8 screws (J) through the holes in the
fixture can assembly (F) and into the wall mounting bracket (B).
3. Refer to acrylic and front mounting instructions to complete installation.
To Install Acrylic and Complete Fixture Installation (Figures 4 & 5)
Component Parts
K Fixture Front Panel
L Acrylic
Panel
M Ball Head Screw
N Fixture Can Assembly
O Magnet Assembly (6)
1. Remove protective covering from acrylic panel (L). Some colors might not have a protective covering.
2. Slide acrylic panel (L) in opening on top of fixture front panel (K). Slide acrylic through until it rests at bottom of
fixture front panel (K). Acrylic should be approximately 1/8" below top surface when installed.
3. Install light bulb.
4. Align holes on the top and bottom of fixture front panel (K) with the holes in the top and bottom of fixture can
assembly (N). Slide the fixture front panel (A) back until it bottoms out on magnet assembly (O).
5. If magnet assemblies (O) are not touching at all points it might be necessary to adjust them out by turning them on
the threaded stud until they touch the fixture front panel (K).
6. Thread ball head screw (M) in top and bottom of fixture can assembly (K). Tighten both ball head screws (G) to
secure fixture front panel (A).
7. Restore electricity at main breaker box.
(continued)
(Figure 3)
