Glass Installation & Front Mounting Instructions
B60
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735
17696 Rev B
Gallery Sconce Model 21-7650

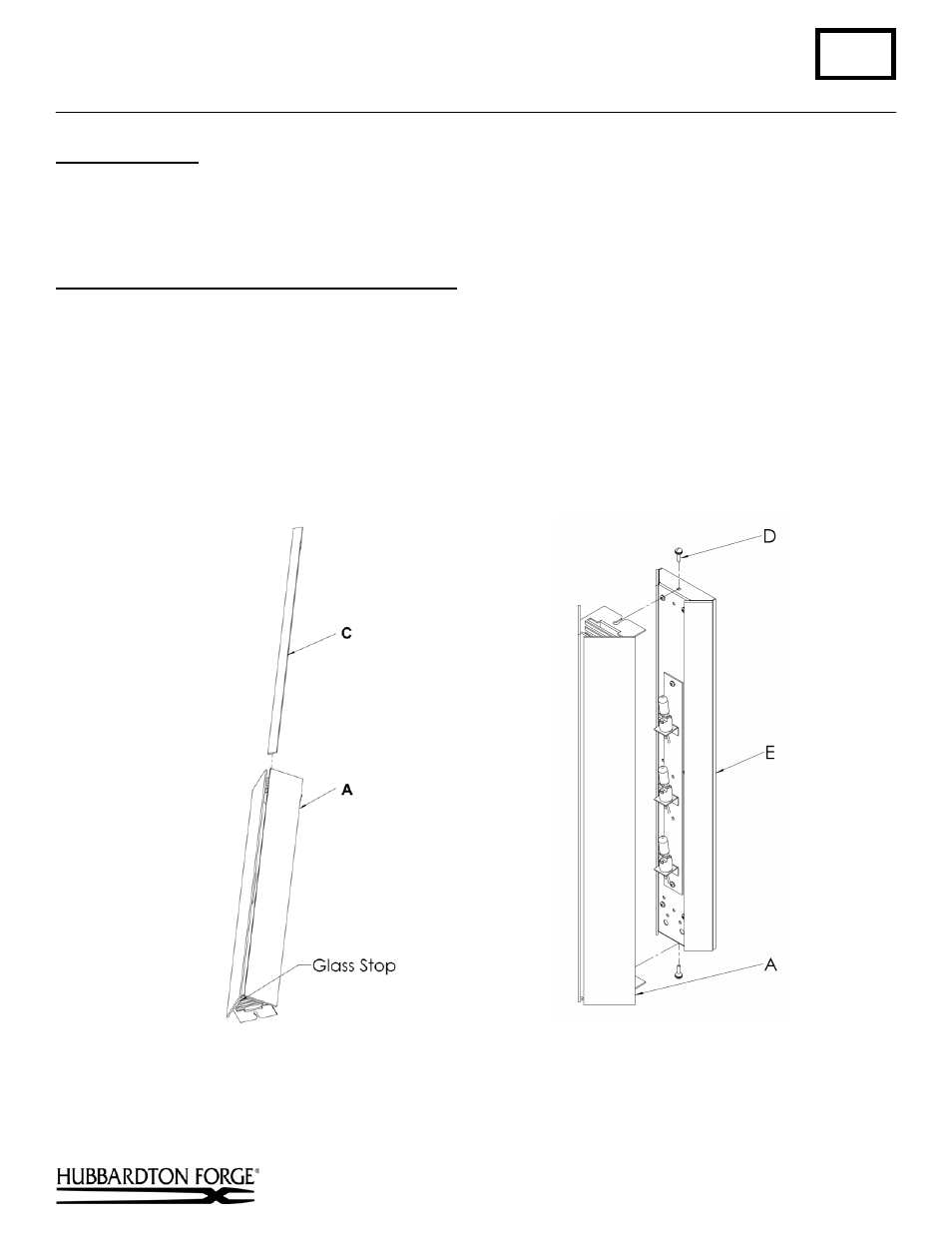

Component Parts
A Fixture Front Panel
C Glass
D Ball Head Screw (2)
E Fixture Can Assembly
To Install Glass and Complete Fixture Installation
1. Slide glass panel (C) in opening on top of fixture front panel (A). Slide glass through until it rests at bottom of
fixture front panel (A). Glass should be approximately 1/4" below top surface when installed.
2. Install light bulb (Fluorescent or G9).
Caution: Do not to touch G9 bulb with bare hands; oil from hands will reduce bulb life.
3. Thread ball head screw (D) in top and bottom of fixture can assembly (E). Only thread a couple of turns for each
screw.
4. Align slots on the top and bottom of fixture front panel (A) with the ball head screws previously installed into
fixture can assembly (E). Slide the fixture front panel (A) back until it bottoms out on fixture can assembly (E).
5. Tighten both ball head screws (D) to secure fixture front panel (A).
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased
this product. We hope you enjoy your fixture!
