Installation Instructions
B100
Mosaic Sconce 21-7628 Page 1 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 19440
Please Note: This fixture is designed to be mounted on a standard wall surface and may not be suitable for all
applications. If installing in a non-wood frame application, we recommend consulting a qualified builder or electrician.
After installation extra hardware and accessories are possible; our kits are used on multiple products and options.

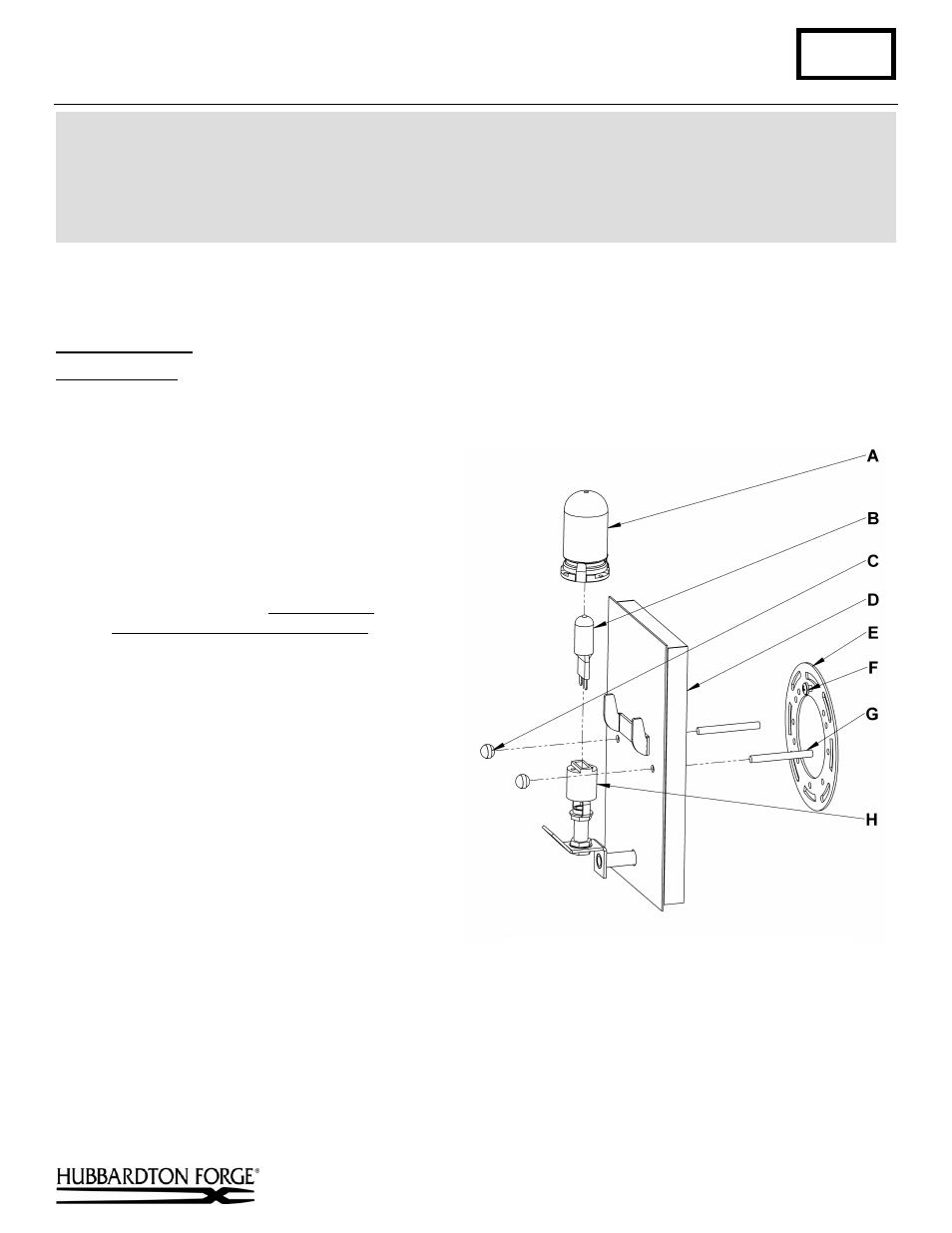

To Install Fixture (Figure 1)
Component Parts
A Bulb Shield E Crossbar
B Bulb (included) F Ground Screw
C Knurl Ball (2) G Threaded Stud (2)
D Fixture Back H Socket
Caution: Be sure power is off at the main breaker
box prior to installation.
1. Carefully unpack the fixture from the carton.
2. Using two machine screws (not provided) attach
crossbar (E) to the electric box using inside oval
holes to orient fixture. Verify crossbar
orientation is correct before attaching.
Note: A
new electric box comes with screws. When
replacing a fixture, retain the screws for use with
the new fixture.
3. Thread studs (G) into the appropriate holes in
the crossbar (E). Adjust the studs (G) to proper
length to ensure the fixture will fit snugly to the
wall.
4. Using suitable wire connectors (not provided),
connect the fixture wires to the supply wires,
(white to white, black to black, bare copper or
green to bare copper or green). If the fixture is
wired with twin lead lamp cord, connect the
ribbed side to white, and the smooth side to
black. Ground the crossbar (E) using the green
ground screw (F) to secure a pigtail leads to the
crossbar.
Caution: Make sure wire connectors
are twisted on securely and no bare wires are
exposed.
5. Carefully tuck all wires behind the fixture back (D), place fixture back (D) firmly against the wall and fasten with
knurled balls (C).
6. Install light bulb (B). Be careful not to touch bulb with bare hands; oil from your hands will reduce bulb life.
7. Install the light bulb shield (A) by carefully threading it onto the socket (H).
8. Restore electricity at main breaker.
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
(Figure 1)
