Installation Instructions
B221
For Wall Sconce 20-7710 & 20-7720 Page 1 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 26493
For fixtures requiring assembly, please refer to assembly instructions before installation.
Please Note: This fixture is designed to be mounted on a standard wall surface and may not be suitable for all
applications. If installing in a non-wood frame application, we recommend consulting a qualified builder or electrician.

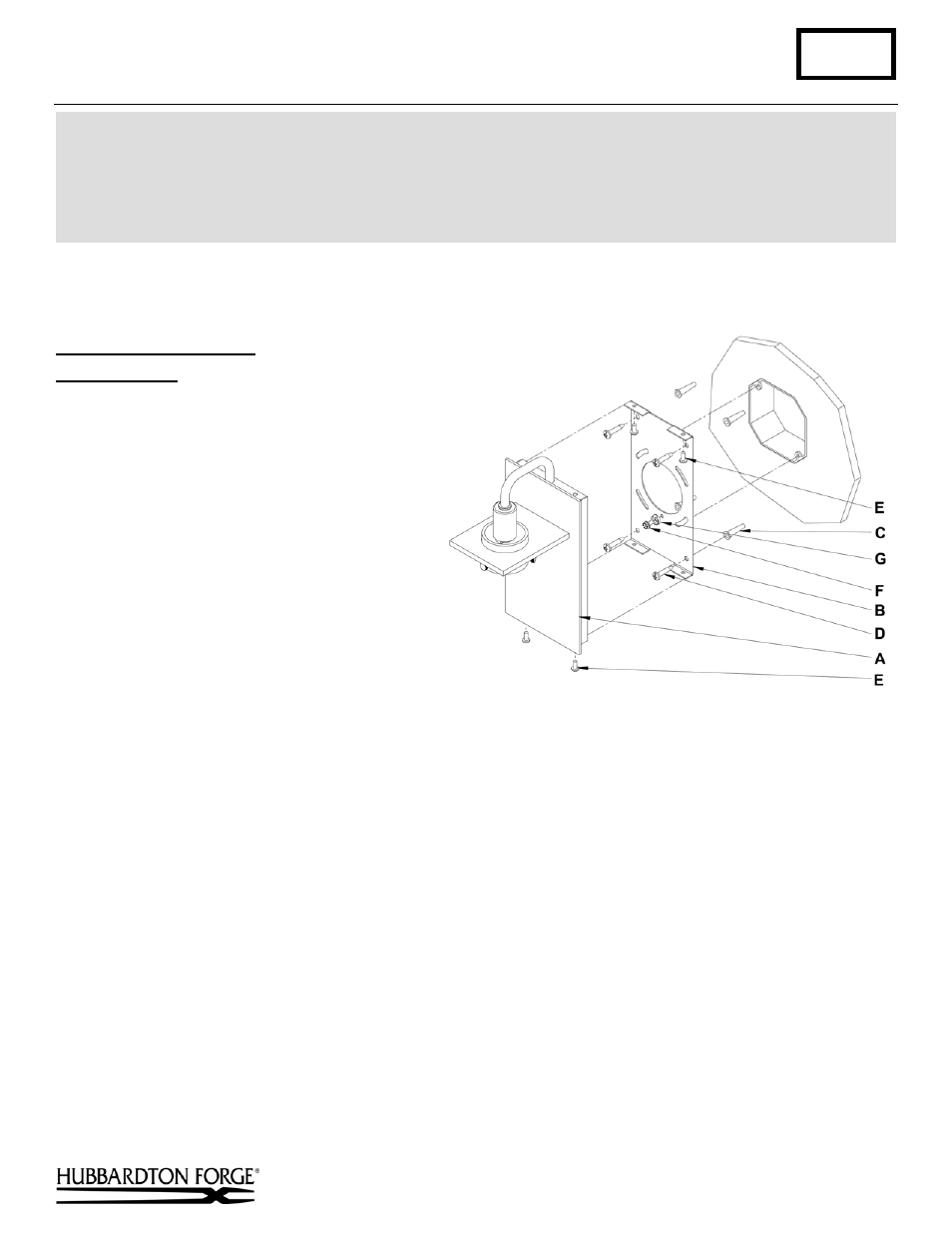

To Mount Fixture to Wall (Figure 1)
Component Parts
A Fixture Assembly
B Wall Mount Bracket
C Anchors
(4)
D #10 Screws (4)
E #8 Black Screws (4)
F Green Ground Screw
G Cupped
Washer
Caution: Be sure power is off at the main breaker
box prior to installation.
1. Center the wall mount bracket (B) over the
electrical box being sure to hold it plum and
level. With a pencil, mark the location of all
mounting holes in the wall mount bracket on
the wall behind.
IMPORTANT: Wall mount bracket must be
secured to a solidly mounted electrical box
and/or a framing member in at least two locations. Do not
depend on drywall anchors alone to support this fixture. If in
doubt, contact a qualified electrician.
Put the wall mount bracket down and drill 1/4" holes in the locations marked on the wall. For holes using anchors,
place the tapered end of the anchors (C) into the holes and gently tap them flush to the wall using a light weight
hammer.
2. Thread the wires in the electrical box through the center hole in the wall mount bracket while moving the bracket
into position. Using the 1" #10 screws (D), screw the bracket securely to the wall. Be careful not to over-tighten
or strip the anchors.
3. Thread the black # 8 screws (E) up through the hole in the top of the wall mount bracket (B). Leave the bottom
screw out for now.
4. Hold the fixture assembly (A) close to the wall mount bracket and using suitable wire connectors (not provided),
connect fixture wires to supply wires (white to white or ribbed and black to black or smooth, and bare copper or
green to bare copper or green). Ground the mounting bracket using the green ground screw (F) and cupped washer
(G) to secure a pigtail lead to the bracket.
5. Carefully tuck all wires behind the fixture assembly and inside the wall mount bracket and place the fixture over
the bracket so that the screw in the top of the wall bracket go through the hole in the top of the fixture. Secure the
fixture by threading the remaining black #8 screws (E) up through the hole in the bottom of the fixture and into
the mounting bracket.
Caution: Make sure wire connectors are twisted on securely, and no bare wires are exposed.
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
(Figure 1)
