Installation Instructions

If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased this product.
We hope you enjoy your fixture!

* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.

Please Note: This fixture is designed to be mounted on a standard

wall surface and may not be suitable for all applications. If installing in

a non-wood frame application, we recommend consulting a qualified

builder or electrician.

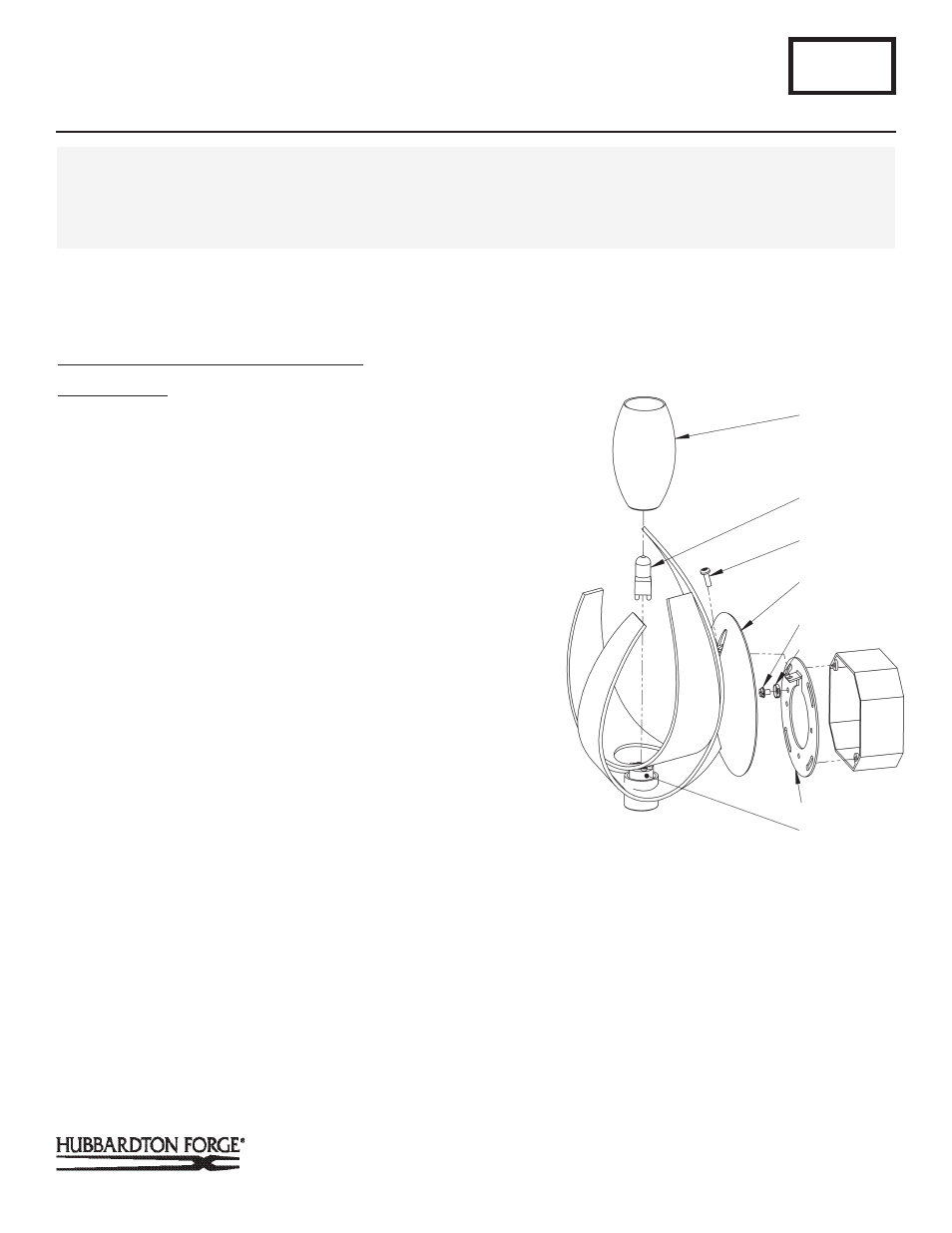

To Mount Fixture to Wall and Install Glass

(Figure 1)

Component Parts

A Glass

E Ground Screw

B Bulb (included) F Cupped Washer

C Mounting Screw G Crossbar

D Fixture Assembly H Socket

CAUTION: BE SURE POWER IS OFF AT THE MAIN BREAKER BOX
PRIOR TO INSTALLATION.

1. Carefully unpack the fixture from the carton.

2. Using two machine screws (not provided), fasten the

crossbar (G) to the electric box making sure that fixture

mounting holes are level. The bent tab on the crossbar (G)

should be on the top and facing away from the wall.

Note: A new electric box comes with screws. When replacing a
fixture, retain the existing screws for use with the new fixture.

3. Hold the fixture assembly close to the wall and using

suitable wire connectors, not provided, connect fixture wires

to supply (white to white and black to black). Run a pigtail

lead from the crossbar ground screw (E) and cupped washer

(F) to the junction box. Connect all ground wires (bare

copper or green to bare copper or green).

CAUTION: MAKE SURE WIRE CONNECTORS ARE TWISTED ON
SECURELY, AND NO BARE WIRE IS EXPOSED.

4. Slide fixture assembly (D) over crossbar (G) and push firmly

to wall, making sure that no wires are pinched between

fixture back and wall. Align hole in the fixture back with the

bent tab in the crossbar (G). Using a Phillips head

screwdriver, fasten with mounting screw (C) until fixture is

tight against the wall.

B262

Corona Sconces 206501 & 206503

Page 1 of 2

CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH AND
PROPERTY DAMAGE. We recommend installation by a licensed electrician. This product must be installed in accordance with
applicable installation code(s), by a person familiar with the construction and operation of the product and the hazards involved.*

Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.

(Figure 1)

(Continued)

E
F

G
H
