Installation Instructions
B239
Banded Wall Torch 20-6251 Page 2 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 26945

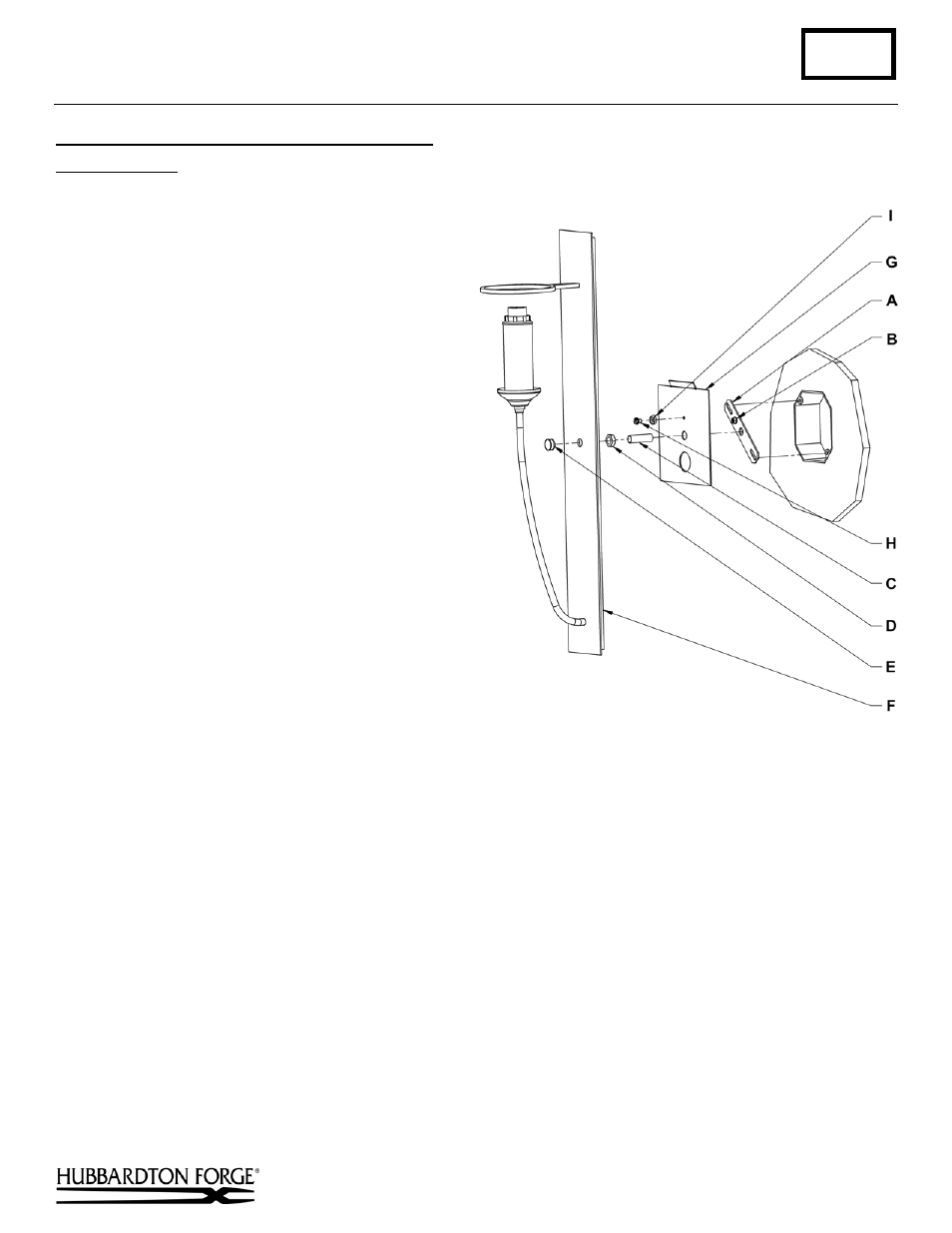

To Mount Fixture to Wall with Standard 4" Box (Figure 2)
Component Parts
A Crossbar
B Ground
Screw
C Nipple
D Lock
Nut
E Threaded Cap
F Fixture Assembly
G Wall Plate
H Ground Screw
I Cupped Washer
Caution: Be sure power is off at the main
breaker box prior to installation.
1. Carefully unpack the fixture from the
carton.
2. Using two machine screws (not provided),
fasten the crossbar (A) to the electric box
making sure crossbar is level.
Note: A new electric box comes with
screws. When replacing a fixture, retain
the existing screws for use with the new
fixture
.
3. Thread the nipple (C) into the crossbar
(A). Adjust the nipple to proper length to
ensure the fixture will fit snugly to the
wall.
4. Ground the crossbar (A) by securing a
pigtail lead around ground screw (B).
5. Orient the wall plate (G) so that the bent
tab is at the top and bent away from the wall and slip
onto nipple (C). The tab will fit into the back of the fixture to facilitate alignment.
6. Run a pigtail lead using ground screw (I) and cupped washer (H).
7. Thread the pigtail lead and fixture wires through the large diameter hole at the bottom of the wall plate (G).
8. Hold the fixture assembly (F) close to the wall and using suitable wire connectors (not provided) connect fixture
wires and pigtail leads to supply wires (white to white or ribbed, black to black or smooth and green to green or
bare).
Caution: Make sure wire connectors are twisted on securely, and no bare wire is exposed.
9. Secure nipple (C) and wall plate (G) with lock nut (D).
10. Place fixture firmly against the wall and fasten with threaded cap (E).
11. See instructions following to install glass.
(continued)
(Figure 2)
