Installation Instructions
B268
Calla Sconce 20-5320 Page 1 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 27239
Please Note: This fixture is designed to be mounted on a standard wall surface and may not be suitable for all
applications. If installing in a non-wood frame application, we recommend consulting a qualified builder or electrician.

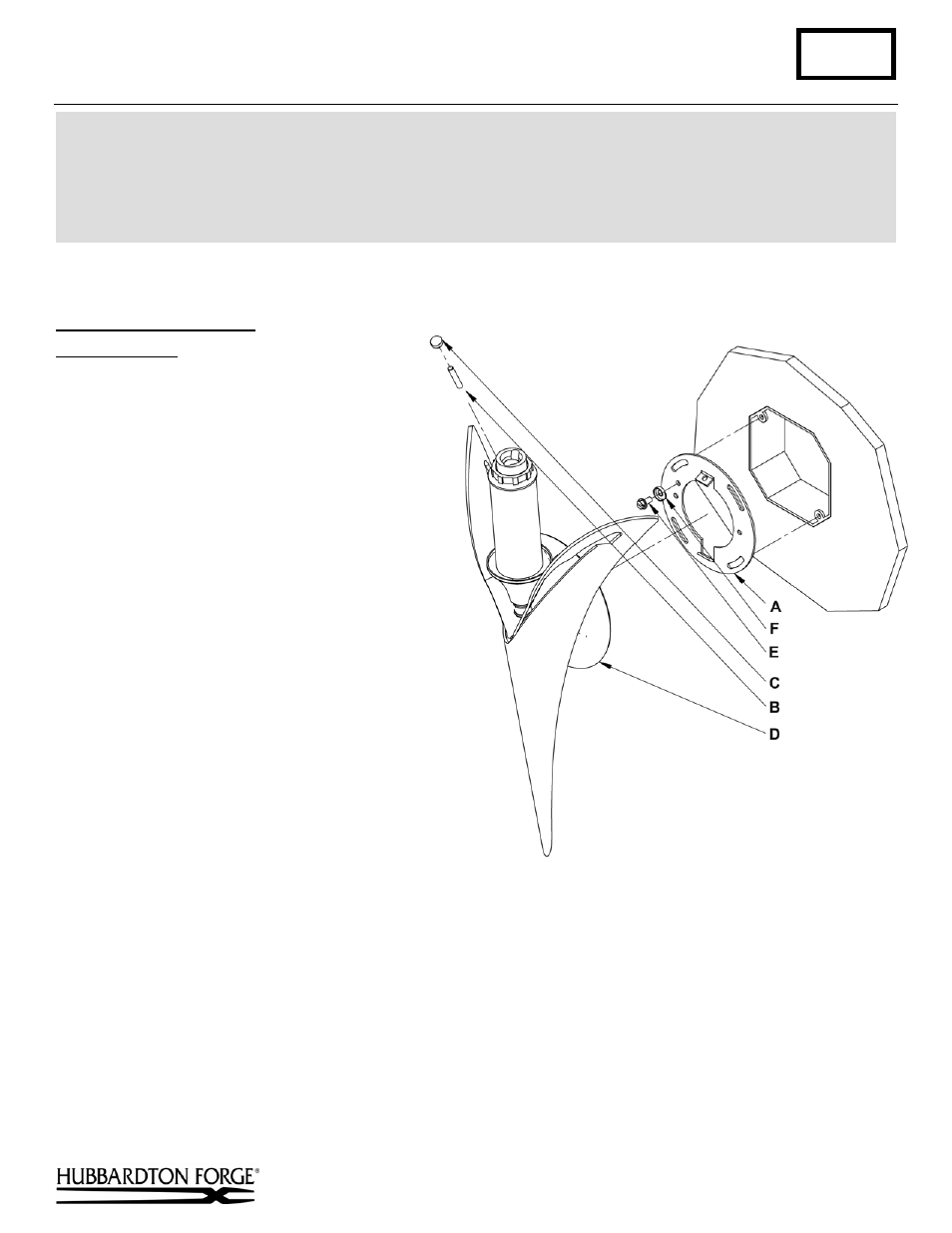

To Mount Fixture to Wall (Figure 1)
Component Parts
A Crossbar
B Threaded
Stud
C Knurled Ball
D Fixture Assembly
E Ground Screw
F Cupped Washer
Caution: Be sure power is off at the main
breaker box prior to installation.
1. Carefully unpack the fixture from the
carton.
2. Using two machine screws (not
provided), fasten the crossbar (A) to the
electric box making sure that fixture
mounting holes are level. The crossbar
must be mounted with the tab centered
on the top and facing out.
Note: A new electric box comes with
screws. When replacing a fixture, retain
the existing screws for use with the new
fixture.
3. Thread stud (B) into knurled ball (C).
Be sure threaded stud (B) is fully seated
in the knurled ball (C).
4. Hold the fixture (D) close to the wall
and using suitable wire connectors, (not provided), connect fixture wires to supply (white to white or ribbed and
black to black or smooth). Run a pigtail lead from crossbar ground screw (E) to the junction box and connect all
ground wires (bare copper or green to bare copper or green).
Caution: Make sure wire connectors are twisted on securely, and no bare wire is exposed.
5. Align fixture assembly (D) over crossbar (A) and push firmly to wall, making sure that no wires are pinched
between fixture back and wall. Slide threaded stud (B) down through fixture (D) and thread into crossbar (A).
Tighten until fixture (D) is snug against the wall. Be sure that the bottom tab on crossbar is aligned with the tab
on fixture (D).
6. See instructions on next page to install glass.
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
(Figure 1)
