Assembly & Installation Instructions
B113
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 19785 Rev B
For Wall Sconce 20-4670 Page 2 of 2

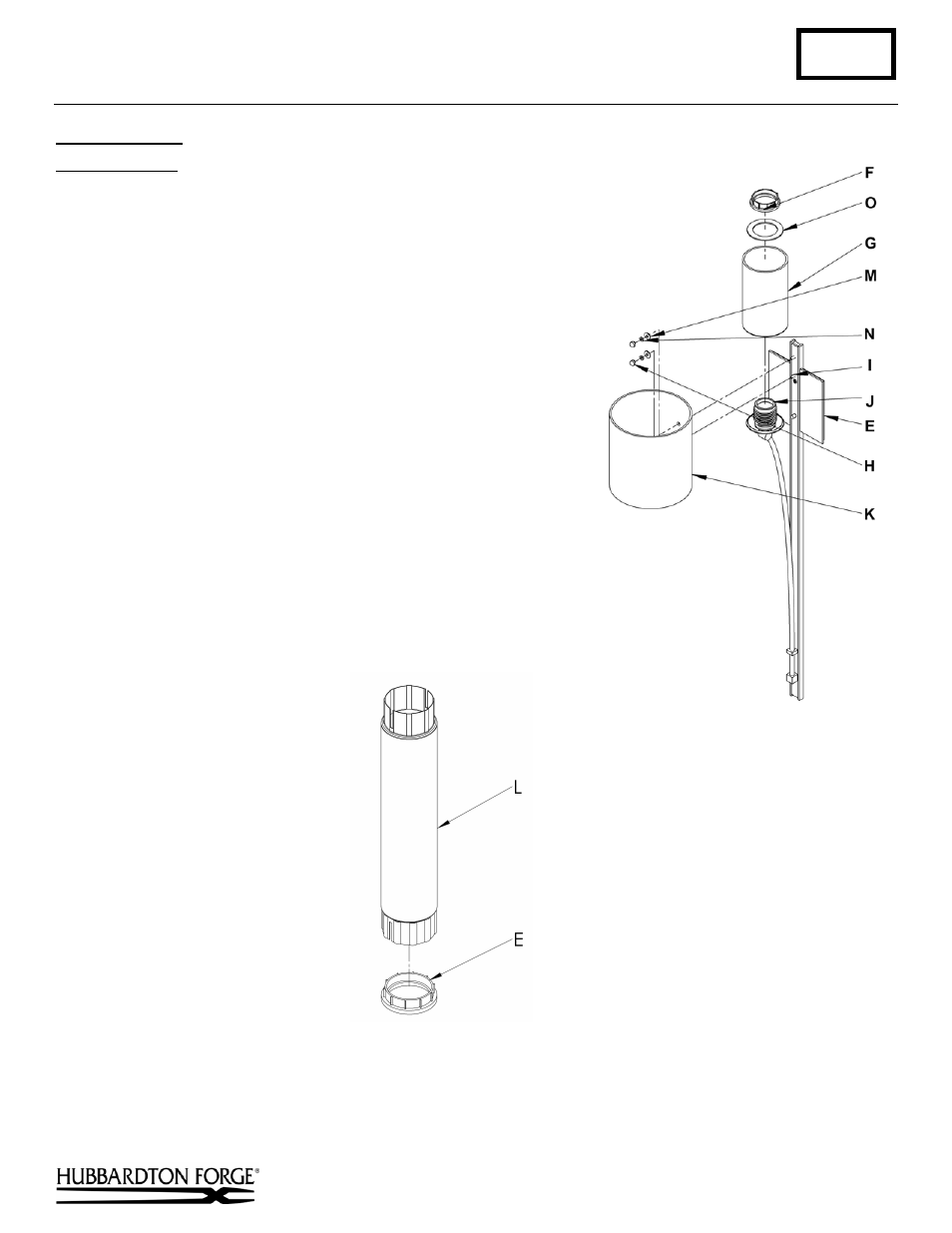

To Install Glass (Figures 2 & 3)
Component Parts
E Fixture Assembly
F Retaining Ring
G Inner Glass
H Knurl Ball (2)
I Studs
(2)
J Lamp Socket
K Outer Glass
L Socket Tool
M Flat Washer (2)
N Neoprene Washer (2)
O White
Washer
1. Align outer glass (K) over studs (I) protruding from fixture
assembly (E).
2. Slip flat washer (M) and neoprene washer (N) onto
studs (I).
3. Thread knurl ball (H) onto studs (I) until snug against inside
of outer glass (K). Do not over tighten.
4. Place inner glass (G) over lamp socket (J).
5. Slip white washer (O) onto lamp socket (J) until it rests on the
bottom of inner glass (G).
6. Thread retaining ring (F) on to lamp socket using socket tool
provided (L) until it rests on the white washer (O). Do not
over tighten.
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased
this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
(Figure 2)
(Figure 3)
