Installation Instructions
B229
For Sweeping Taper 20-4529E & 20-4529F Page 1 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 26785
Caution: This fixture is designed to be mounted on a standard wall surface and may not be suitable for all applications. If
installing in a non-wood frame application, we recommend consulting a qualified builder or electrician.

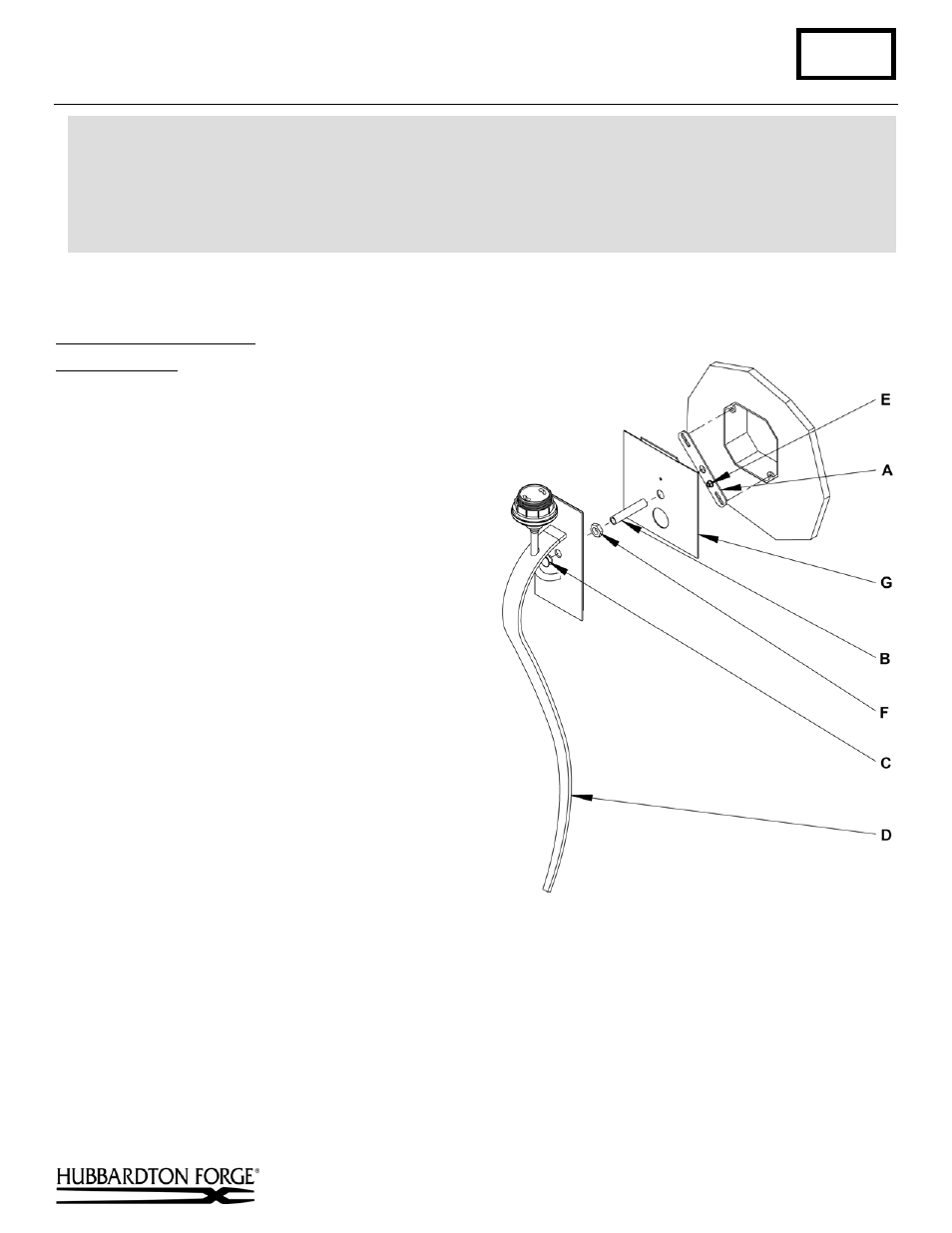

To Mount Fixture to Wall (Figure 2)
Component Parts
A Crossbar
B Nipple
C Threaded
Cap
D Fixture Assembly
E Ground Screw
F Lock Nut
G Wall Plate
Caution: Be sure power is off at the main
breaker box prior to installation.
1. Carefully unpack the fixture from the
carton.
2. Using two machine screws (not provided),
fasten the crossbar (A) to the electric box
making sure crossbar is level.
Note: A
new electric box comes with screws. When
replacing a fixture, retain the existing
screws for use with the new fixture
.
3. Thread the nipple (B) into the crossbar (A).
Adjust the nipple to proper length to ensure
the fixture will fit snugly to the wall.
4. Orient the wall plate (G) so that the bent tab
is at the top and bent away from the wall
and slip onto nipple (B). The tab will fit
into the back of the fixture to facilitate
alignment.
5. Hold the fixture assembly (D) close to the wall
and using suitable wire connectors, not provided,
connect fixture wires to supply (white to white or ribbed and black to black or smooth). Run a pigtail lead from
crossbar ground screw (E) to the junction box and connect all ground wires (bare copper or green to bare copper
or green). Caution:
Make sure wire connectors are twisted on securely, and no bare wire is exposed.
6. Thread the wires through the large diameter hole at the bottom of the wall plate (G).
7. Secure nipple (B) and wall plate (G) with lock nut (F).
8. Place fixture firmly against the wall and fasten with threaded cap (C).
9. See instructions following to install glass.
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
(Figure 1)
